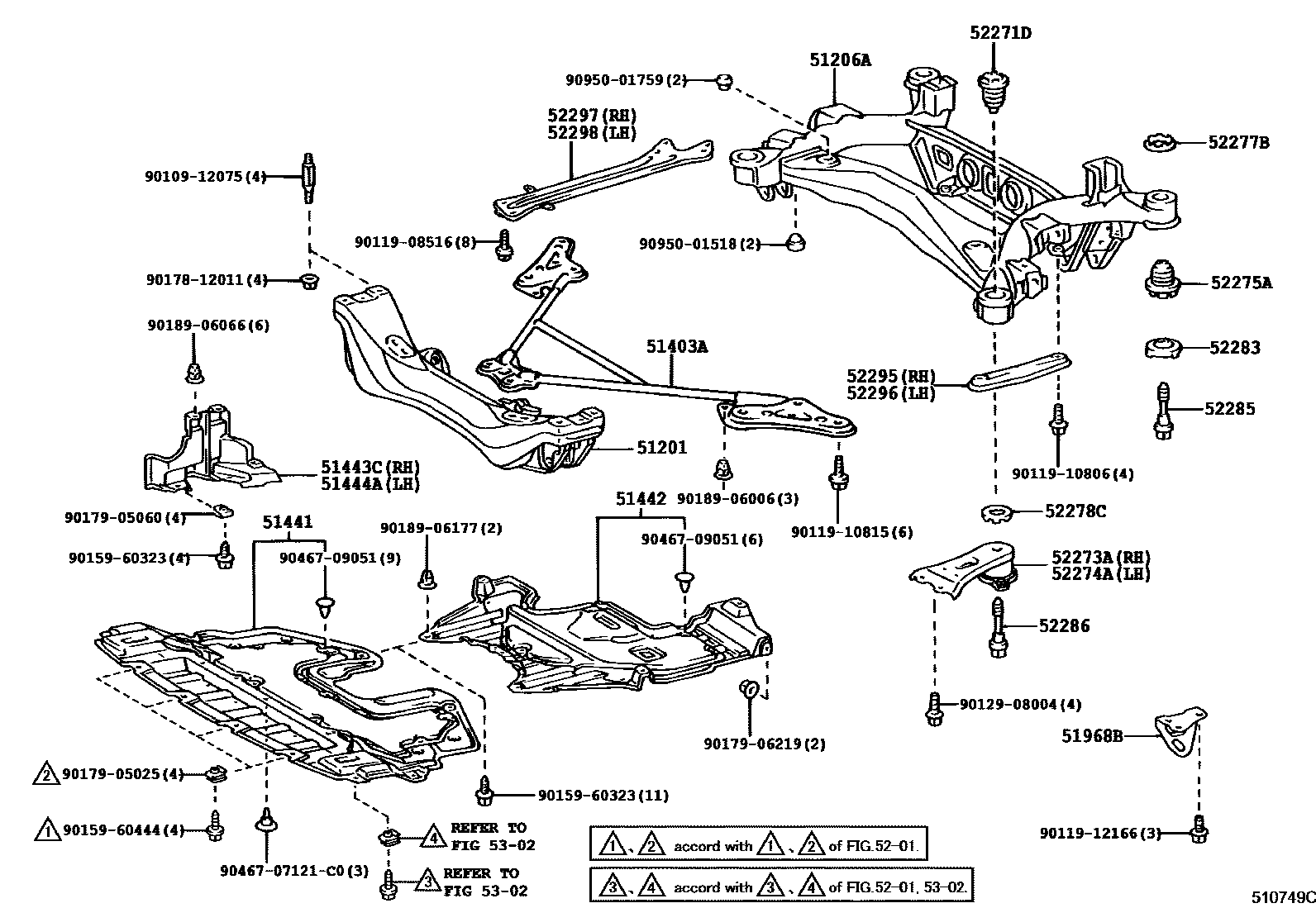

SUSPENSION CROSSMEMBER & UNDER COVER

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-53010iGXE10..LHD¥34,600199901-200107

main51201-53020iGXE10..RHD¥34,600199901-200107

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-51010iGXE10¥81,800199901-199905

sub51206-51020¥81,700

main51206-51020iGXE10¥81,700199905-200002

sub51206-51021¥81,700

main51206-53010iGXE10¥81,700200002-200006

sub51206-53011¥81,700

main51206-53011iGXE10¥81,700200006-200007

sub51206-53020¥82,000

main51206-53020iGXE10¥82,000200007-200107

51403ABRACE SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51403-53010iGXE10¥6,500199901-200107

51441COVER, ENGINE UNDER, NO.1

main51410-53010iGXE10¥21,100199901-200002

sub51410-53011¥18,500

main51410-53011iGXE10¥18,500200002-200102

sub51410-53012¥18,300

main51410-53012iGXE10¥18,300200102-200107

main51410-53022iJCE10¥18,300200107

sub51410-53012¥18,300

51442COVER, ENGINE UNDER, NO.2

main51420-53010iGXE10¥18,500199901-200002

sub51420-53011¥16,500

main51420-53011iGXE10¥16,500200002-200105

sub51420-53012¥16,400

main51420-53012iGXE10¥16,400200105-200107

51443CCOVER, ENGINE UNDER, REAR RH

main51443-51010iGXE10¥2,530199901-200107

51444ACOVER, ENGINE UNDER, REAR LH

main51444-51010iGXE10¥2,530199901-200107

51968BHOOK, TRANSPORT, REAR LH

main51968-30040iGXE10¥3,090199901-200107

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-53010iGXE10¥3,340199901-200107

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-53010iGXE10¥2,400199901-200107

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52204-53010iGXE10¥2,400199901-200107

52275ACUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, REAR

main52275-53010iGXE10¥4,920199901-199912

sub52275-53011¥4,930

main52275-53011iGXE10¥4,930199912-200107

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-53010iGXE10¥1,020199901-200107

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-53010iGXE10¥710199901-200107

52283STOPPER, DIFFERENTIAL SUPPORT MEMBER, LOWER

main52283-30050iGXE10¥1,070199901-200107

52285BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.1

main52285-30021iGXE10¥1,360199901-200107

52286BOLT, DIFFERENTIAL SUPPORT MEMBER MOUNTING, NO.2

main52286-53010iGXE10¥2,760199901-200107

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-50010iGXE10¥2,100199901-200107

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-50010iGXE10¥2,100199901-200107

52297BRACE, REAR SUSPENSION MEMBER, REAR LOWER RH

main52297-53010iGXE10¥3,570199901-200107

52298BRACE, REAR SUSPENSION MEMBER, REAR LOWER LH

main52298-53010iGXE10¥3,570199901-200107

5302

9010912075

main90109-12075¥510

9011908516

main90119-08516¥120

9011910806

main90119-10806¥810

9011910815

main90119-10815¥130

9011912166

main90119-12166¥260

9012908004

main90129-08004¥200

9015960323

main90159-60323¥100

9015960444

main90159-60444¥100

9017812011

main90178-12011¥260

9017905025

main90179-05025¥80

9017905060

main90179-05060¥70

9017906219

main90179-06219¥70

9018906006

main90189-06006¥100

9018906066

main90189-06066¥80

9018906177

main90189-06177¥110

9046707121C0

main90467-07121C0

9046709051

main90467-09051¥120

9095001518

main90950-01518¥110

9095001759

main90950-01759¥120

41 parts on this diagram · 1 diagram in section
