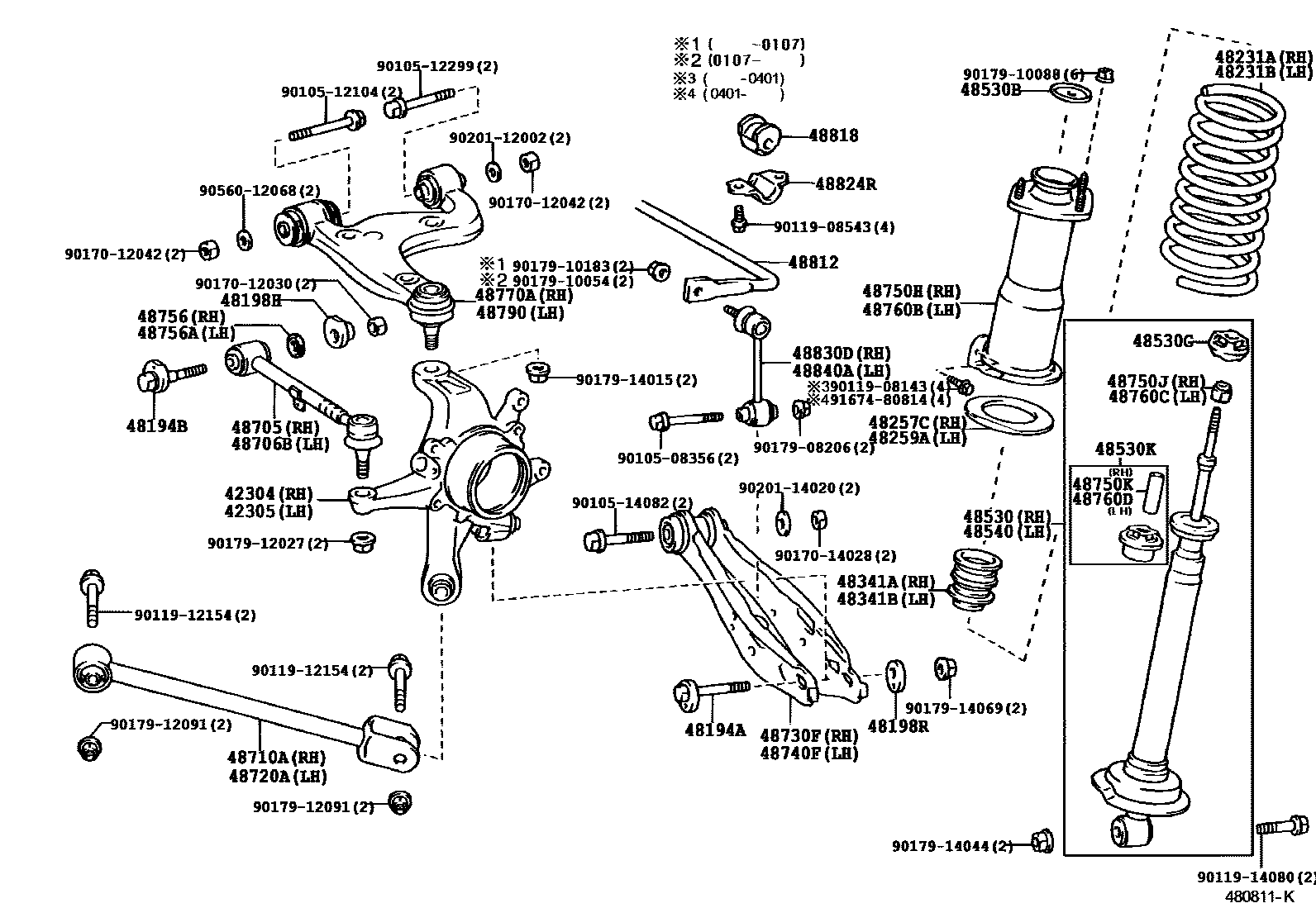

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-51010iGXE10199901-200107

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-51010iGXE10199901-200107

48194ACAM, REAR SUSPENSION CAMBER ADJUST, NO.1

main48190-30040×2iGXE10199901-200107

48194BCAM, REAR SUSPENSION CAMBER ADJUST, NO.3

main48190-30060×2iGXE10199901-200107

48198HCAM, CAMBER ADJUST, NO.2

main48198-30080×2iGXE10199901-200107

48198RCAM, REAR SUSPENSION CAMBER ADJUST, NO.2

main48198-30060×2iGXE10199901-200107

48231ASPRING, COIL, REAR RH

main48231-53020iGXE10199901-200005

main48231-53031iJCE10..RHD..SED..EUR200107-200507

LIGHT GREEN&*WH MARK

main48231-53041iJCE10..SED200107-200507

LIGHT BLUE&*WH MARK

main48231-53050iGXE10..RHD..EUR200005-200107

UNITED KINGDOM SPEC,ORANGE MARK

main48231-53051iGXE10..RHD..SED..EUR200107-200507

ORANGE&WHITE MARK

main48231-53070iGXE10200005-200107

YELLOW MARK

main48231-53071iGXE10..SED200107-200507

YELLOW&WHITE MARK

main48231-53110iJCE10..WG200107-200507

BROWN&WHITE MARK

main48231-53140iGXE10..WG200208-200507

LIGHT GREEN&GR MARK

48231BSPRING, COIL, REAR LH

main48231-53020iGXE10199901-200005

main48231-53031iJCE10..RHD..SED..EUR200107-200507

LIGHT GREEN&*WH MARK

main48231-53041iJCE10..SED200107-200507

LIGHT BLUE&*WH MARK

main48231-53050iGXE10..RHD..EUR200005-200107

UNITED KINGDOM SPEC,ORANGE MARK

main48231-53051iGXE10..RHD..SED..EUR200107-200507

ORANGE&WHITE MARK

main48231-53070iGXE10200005-200107

YELLOW MARK

main48231-53071iGXE10..SED200107-200507

YELLOW&WHITE MARK

main48231-53110iJCE10..WG200107-200507

BROWN&WHITE MARK

main48231-53140iGXE10..WG200208-200507

LIGHT GREEN&GR MARK

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-30060iGXE10199901-200107

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48257-30060iGXE10199901-200107

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-30100iGXE10,JCE10..WG200107

main48341-51010iGXE10199901-200107

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-30100iGXE10,JCE10..WG200107

main48341-51010iGXE10,JCE10..SED200107

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-59375iGXE10200004-200107

MARK 48530-53030

main48530-59535iJCE10..SED200107-200309

MARK 48530-53040

main48530-59585iGXE10,JCE10..WG200107-200307

MARK 48530-53080

sub48530-59575

main48530-80020iGXE10199901-200004

MARK 48530-53010

main48530-80156iGXE10..SED200307-200507

MARK 48530-53031

main48530-80157iGXE10,JCE10..WG200308-200507

MARK 48530-53080

main48530-80163iJCE10..SED200309-200507

MARK 48530-53041

sub48530-80161

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03021×2iGXE10199901-200107

48530GCUSHION, REAR SHOCK ABSORBER, NO.1

main90948-01062×2iGXE10199901-200107

48530KCUSHION, REAR SHOCK ABSORBER, NO.2

main90948-01063×2iGXE10199901-200107

48540ABSORBER ASSY, SHOCK, REAR LH

main48530-59375iGXE10200004-200107

MARK 48530-53030

main48530-59535iJCE10..SED200107-200309

MARK 48530-53040

main48530-59585iGXE10,JCE10..WG200107-200307

MARK 48530-53080

sub48530-59575

main48530-80020iGXE10199901-200004

MARK 48530-53010

main48530-80156iGXE10..SED200307-200507

MARK 48530-53031

main48530-80157iGXE10,JCE10..WG200308-200507

MARK 48530-53080

main48530-80163iJCE10..SED200309-200507

MARK 48530-53041

sub48530-80161

48705LINK SUB-ASSY, TOE CONTROL, RH

main48705-53010iGXE10199901-200107

48706BLINK SUB-ASSY, TOE CONTROL, LH

main48706-53010iGXE10,JCE10200107

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-53010iGXE10199901-200107

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-53010iGXE10199901-200107

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-51010iGXE10199901-200107

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-51010iGXE10,JCE10200107

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-51010iGXE10199901-200107

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90177-12002iGXE10200003-200107

main90179-12127iGXE10,JCE10200301

main94187-11200iGXE10199901-200003

48750KCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90387-12050iGXE10199901-200107

48756PIECE, REAR SUSPENSION ARM, RH

main48756-53010iGXE10199901-200107

48756APIECE, REAR SUSPENSION ARM, LH

main48756-53010iGXE10199901-200107

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48750-51010iGXE10199901-200107

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90177-12002iGXE10200003-200107

main90179-12127iGXE10,JCE10200301

main94187-11200iGXE10199901-200003

48760DCOLLAR(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90387-12050iGXE10199901-200107

48770AARM ASSY, UPPER CONTROL, REAR RH

main48770-53010iGXE10,JCE10200107

48790ARM ASSY, UPPER CONTROL, REAR LH

main48790-53010iGXE10199901-200107

48812BAR, STABILIZER, REAR

main48812-51010iGXE10199901-200005

main48812-53010iJCE10..SED200107

W(STAINLESS SCUFF PLATE)

main48812-53020iGXE10;JCE10..WG200107

48818BUSH, STABILIZER, REAR

main48818-30100×2iGXE10199901-200005

main48818-30110×2iJCE10..SED200107

W(STAINLESS SCUFF PLATE)

main48818-53030×2iGXE10;JCE10..WG200107

48824RBRACKET, STABILIZER(FOR REAR)

main48832-30050×2iGXE10199901-200107

48830DLINK ASSY, REAR STABILIZER, RH

main48830-51010iGXE10199901-200107

48840ALINK ASSY, REAR STABILIZER, LH

main48830-51010iGXE10199901-200107

9010508356

main90105-08356

9010512104

main90105-12104

9010512299

main90105-12299

9010514082

main90105-14082

9011908143

main90119-08143

9011908543

main90119-08543

9011912154

main90119-12154

9011914080

main90119-14080

9017012030

main90170-12030

9017012042

main90170-12042

9017014028

main90170-14028

9017908206

main90179-08206

9017910054

main90179-10054

9017910088

main90179-10088

9017910183

main90179-10183

9017912027

main90179-12027

9017912091

main90179-12091

9017914015

main90179-14015

9017914044

main90179-14044

9017914069

main90179-14069

9020112002

main90201-12002

9020114020

main90201-14020

9056012068

main90560-12068

9167480814

main91674-80814

62 parts on this diagram · 1 diagram in section
