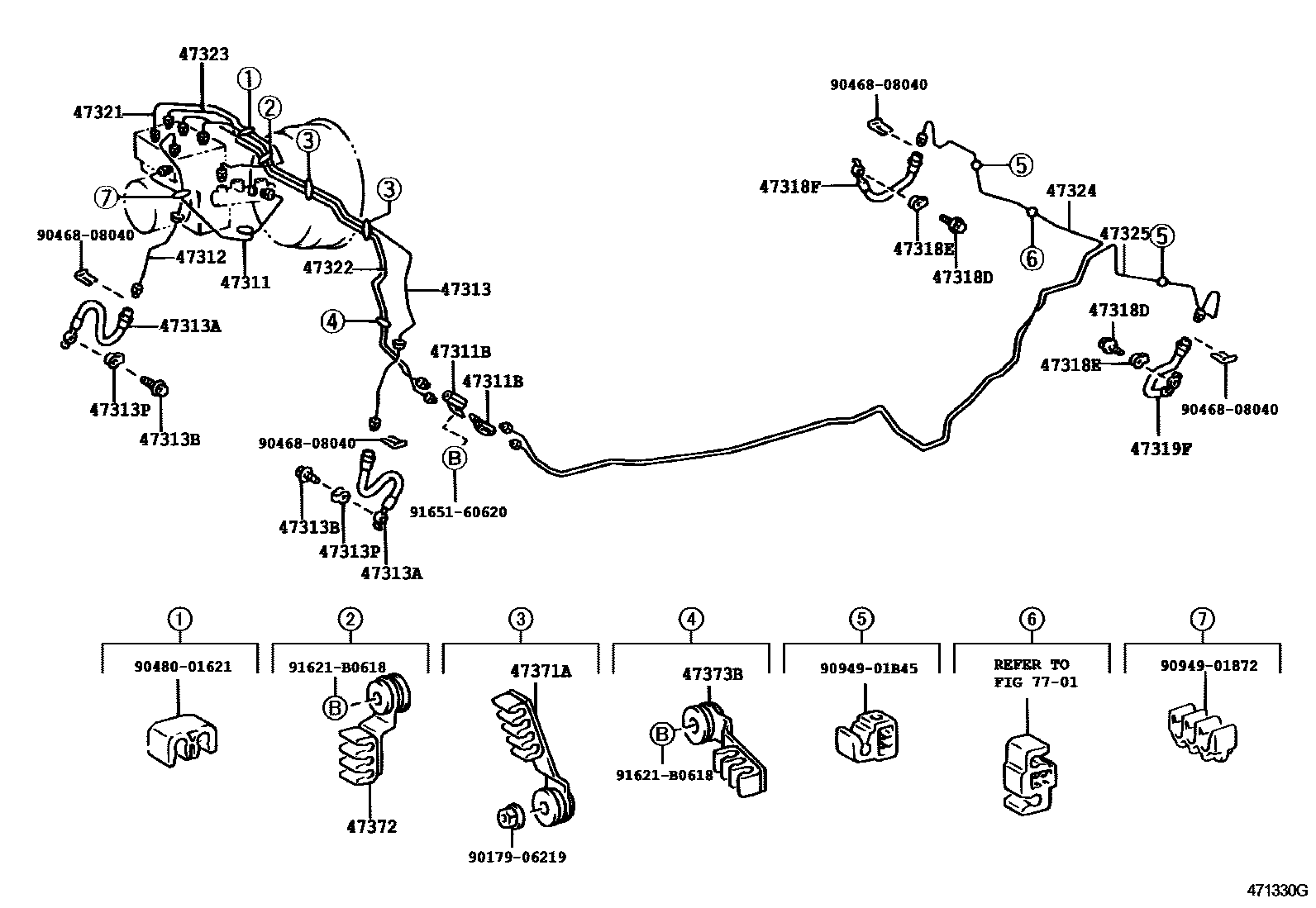

BRAKE TUBE & CLAMP
47311TUBE, FRONT BRAKE, NO.1
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC
47311BWAY, NO.1(FOR FRONT BRAKE TUBE)
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
47312TUBE, FRONT BRAKE, NO.2
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC
47313TUBE, FRONT BRAKE, NO.3
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)
47318EGASKET(FOR REAR FLEXIBLE HOSE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
47319FHOSE, FLEXIBLE(FOR REAR LH)
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
47321TUBE, REAR BRAKE, NO.1
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC
47322TUBE, REAR BRAKE, NO.2
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC
47323TUBE, REAR BRAKE, NO.3
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC
47324TUBE, REAR BRAKE, NO.4
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
47325TUBE, REAR BRAKE, NO.5
S-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
D-TYPE FLARE:REFER TO ILLUST NO. 3 OF 3
47371ACLAMP, BRAKE TUBE, NO.1
HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC,NO.1
HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC,NO.2
47372CLAMP, BRAKE TUBE, NO.2
47373BCLAMP, BRAKE TUBE, NO.3
7701
9017906219
9046808040
9048001621
9094901872
9094901B45
91621B0618
9165160620
27 parts on this diagram · 12 diagrams in section
