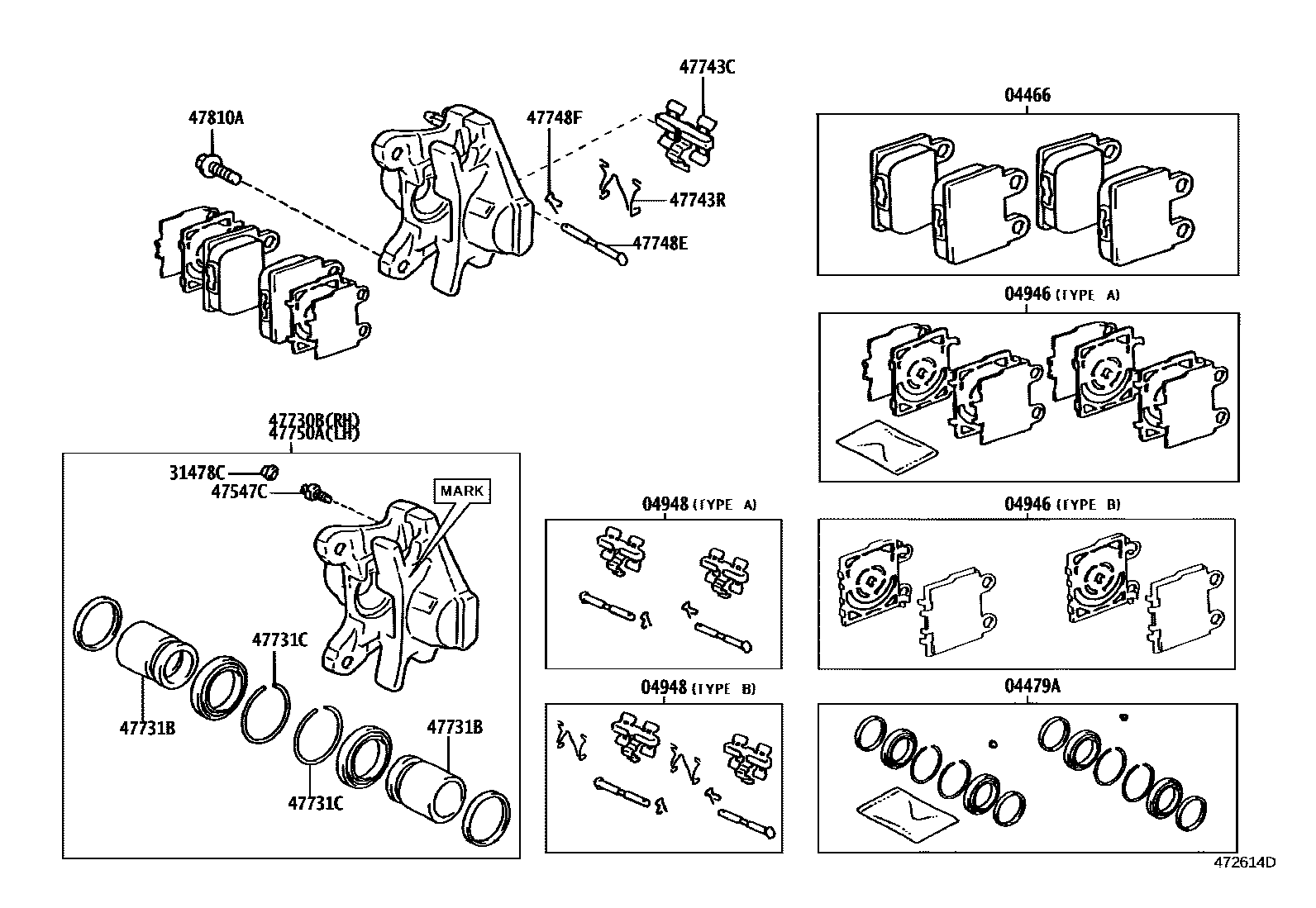

REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
sub04466-30121
sub04466-30122
MARK NBK PN529,TAIWAN SPEC
MARK NBK PN529
MARK NBK PN529,HONG KONG OR SINGAPORE OR THAILAND OR BLUNEI SPEC
MARK NBK PN529
MARK SUMITOMO PS506H
04479ACYLINDER KIT, DISC BRAKE, REAR
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
sub04946-30071
TYPE A:REFER TO ILLUSTRATION
TYPE A:REFER TO ILLUSTRATION, HONG KONG OR SINGAPORE OR BRUNEI OR THAILAND SPEC
TYPE A:REFER TO ILLUSTRATION, TAIWAN SPEC
TYPE B:REFER TO ILLUSTRATION, HONG KONG OR SINGAPORE OR BRUNEI OR THAILAND SPEC
TYPE B:REFER TO ILLUSTRATION, TAIWAN SPEC
04948FITTING KIT, DISC BRAKE, REAR
HONG KONG OR THAILAND SPEC,TYPE A
HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC,TYPE A
TYPE A
TAIWAN SPEC,TYPE A
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
TYPE B
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47730BCYLINDER ASSY, REAR DISC BRAKE, RH
HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC,MARK 40
W/O(CLEAR PAINTED),MARK 40
TAIWAN SPEC,MARK 40
HONG KONG OR THAILAND SPEC,MARK 40
W(CLEAR PAINTED)
47731BPISTON, REAR DISC BRAKE
47731CRING, SET(FOR REAR DISC BRAKE PISTON)
47743CSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)
47743RSPRING, ANTI-SQUEAL(FOR REAR DISC BRAKE)
47748EPIN, W/HOLE(FOR REAR DISC BRAKE)
47748FCLIP(FOR REAR DISC BRAKE)
47750ACYLINDER ASSY, DISC BRAKE, REAR LH
HONG KONG OR THAILAND SPEC,MARK 40
W/O(CLEAR PAINTED),MARK 40
TAIWAN SPEC,MARK 40
HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC,MARK 40
W(CLEAR PAINTED)
47810ABOLT, HEXAGON(FOR REAR CALIPER)
15 parts on this diagram · 1 diagram in section
