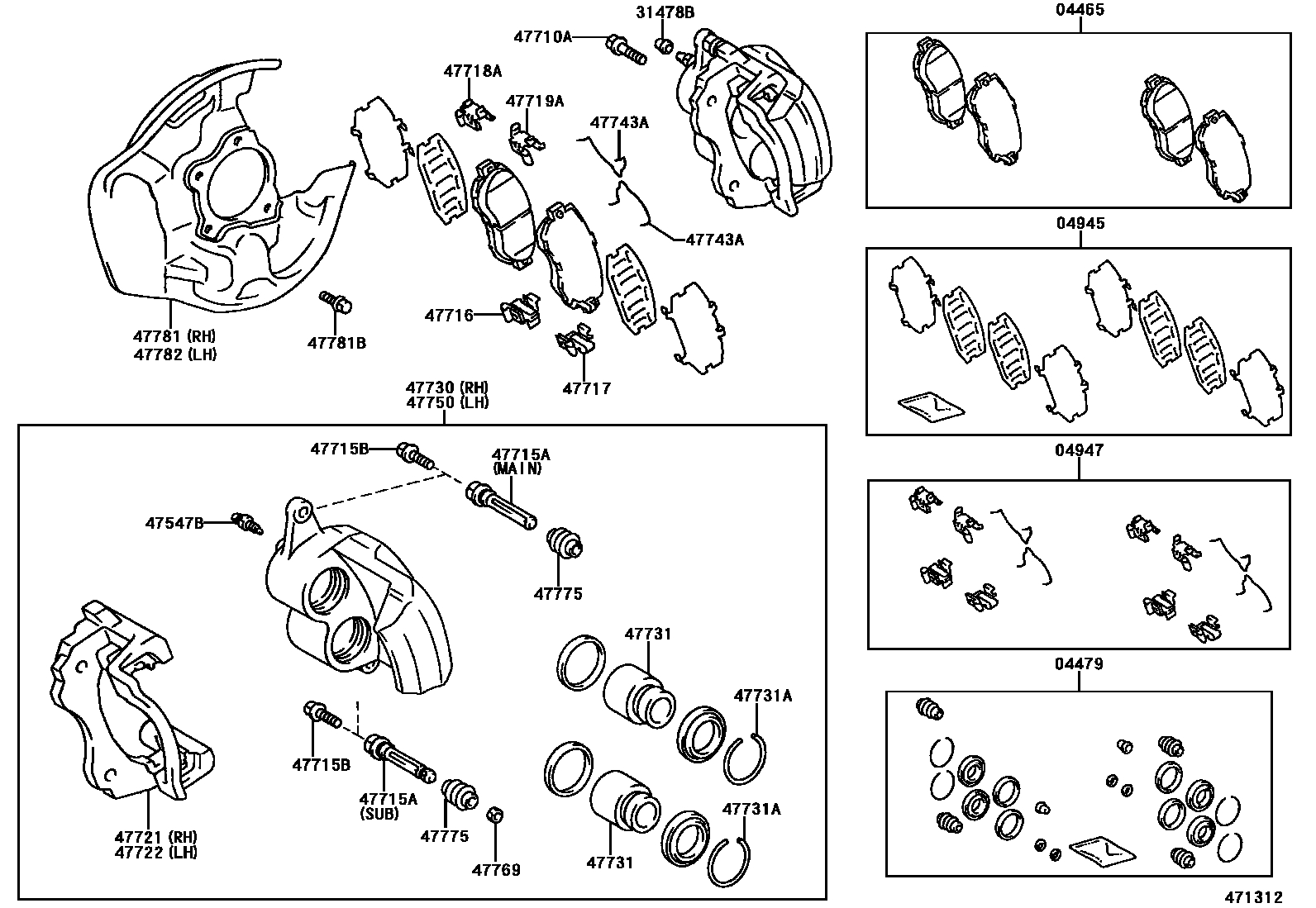

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-22311iGXE10..ARL;GXE10..LHD..ATM199901-200212

MARK NBK PN529H

sub04465-22312

main04465-22311iGXE10..ARL;GXE10..LHD..ATM199901-200212

MARK NBK PN529H,TAIWAN SPEC

sub04465-22312

main04465-22311iGXE10..ARL200001-200107

MARK NBK PN529H,HONG KONG OR SINGAPORE OR THAILAND OR BLUNEI SPEC

sub04465-22312

main04465-22312iGXE10,JCE10..ARL;GXE10,JCE10..LHD..SED..ATM200212-200507

MARK NBK PN529AH

main04465-30271iGXE10..EUR199901-200107

MARK NBK PN532H

sub04465-30320

main04465-30272iGXE10,JCE10200212-200507

MARK TEXTAR T4146

main04465-30320iGXE10,JCE10200107-200212

MARK NBK PN532H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-30190iGXE10199901-200101

sub04479-30191

main04479-30191iGXE10200101-200507

sub04478-30240

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-30110iGXE10..ARL;GXE10..LHD..ATM199901-199903

TAIWAN SPEC

main04945-30120iGXE10,JCE10200212-200508

sub04945-30140

main04945-30130iGXE10..EUR199901-200212

sub04945-30120

main04945-30140iGXE10..ARL;GXE10,JCE10..LHD..SED..ATM200107

HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC

main04945-30140iGXE10..ARL;GXE10..LHD..ATM199903-200107

TAIWAN SPEC

main04945-30140iJCE10..LHD..WG;GXE10..LHD..MTM;GXE10,JCE10..RHD..EUR200508

04947FITTING KIT, DISC BRAKE, FRONT

main04947-30090iGXE10199901-200107

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGXE10199901-200107

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-27030iGXE10199901-200507

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12228iGXE10199901-200107

*12-1.25PX32-24

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-22070iGXE10,JCE10199901-200107

SUB

main47715-30060iGXE10199901-200107

MAIN

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90105-08164iGXE10,JCE10199901-200507

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-24010iGXE10,JCE10199901-200107

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47716-24020iGXE10,JCE10199901-200107

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47717-30070iGXE10,JCE10199901-200107

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47717-30080iGXE10199901-200107

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-22200iGXE10..ARL200107

HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC

main47721-22200iGXE10..ARL200001-200107

HONG KONG OR SINGAPORE OR THAILAND OR BLUNEI SPEC

main47721-22200iGXE10,JCE10..LHD..SED..ATM199912-200107

TAIWAN SPEC

main47721-22200iGXE10199901-200001

main47721-53010iGXE10200001-200107

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-22160iGXE10..ARL200001-200107

HONG KONG OR SINGAPORE OR THAILAND OR BLUNEI SPEC

main47722-22160iGXE10199901-200001

main47722-22160iGXE10..LHD..ATM199912-200107

TAIWAN SPEC

main47722-22160iGXE10,JCE10..LHD..SED..ATM200107

HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC

main47722-53010iGXE10,JCE10200001-200107

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-53010iGXE10..RHD;GXE10..LHD..MTM199901-200001

main47730-53010iGXE10..LHD..ATM199912-200107

TAIWAN SPEC

main47730-53010iGXE10..ARL200001-200107

HONG KONG OR SINGAPORE OR THAILAND OR BLUNEI SPEC

main47730-53010iGXE10,JCE10..LHD..SED..ATM200107

HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC

main47730-53030iGXE10200001-200107

47731PISTON, FRONT DISC BRAKE

main47731-30170iGXE10,JCE10199901-200507

sub47731-30140

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90520-52006iGXE10..ARL200001-200107

HONG KONG OR SINGAPORE OR THAILAND OR BLUNEI SPEC

main90520-52006iGXE10,JCE10199901-200107

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-30020iGXE10,JCE10199901-200107

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-53010iGXE10..ARL200001-200107

HONG KONG OR SINGAPORE OR THAILAND OR BLUNEI SPEC

main47750-53010iGXE10199901-200001

main47750-53010iGXE10..LHD..ATM199912-200107

TAIWAN SPEC

main47750-53010iGXE10,JCE10..LHD..SED..ATM200107

HONG KONG OR SINGAPORE OR THAILAND OR BRUNEI SPEC

main47750-53030iGXE10200001-200107

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010iGXE10199901-200107

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-30070iGXE10199901-200107

sub47775-50010

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-22152iGXE10,JCE10200107-200507

TYPE B

main47781-22152iGXE10199901-200107

47781BBOLT(FOR DUST COVER SETTING)

main90148-60028iGXE10199901-200107

*6-1.0PX14-10.5

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-22152iGXE10199901-200107

main47782-22152iGXE10,JCE10200107-200507

TYPE B

25 parts on this diagram · 1 diagram in section
