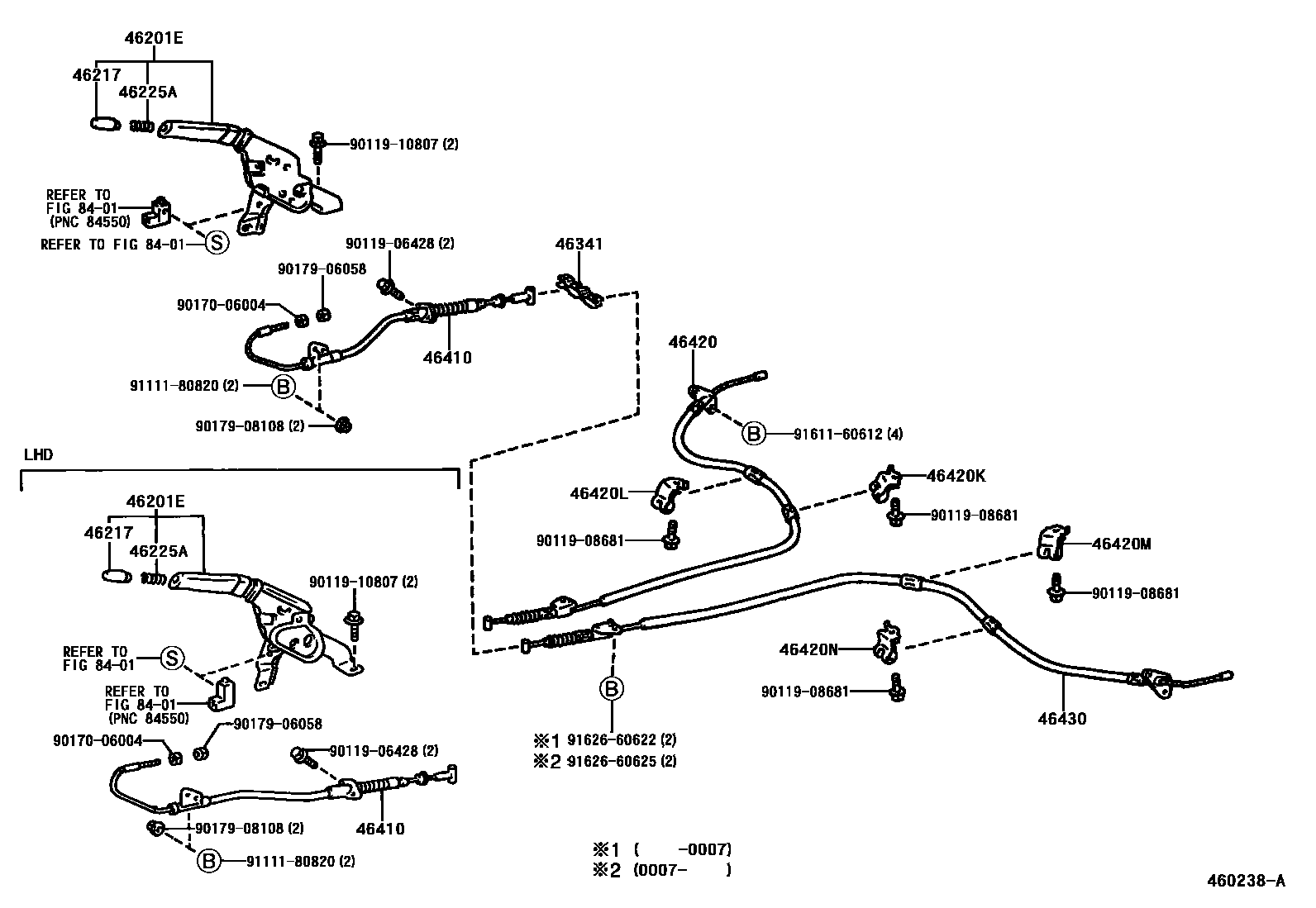

PARKING BRAKE & CABLE

0001 1 0002 1

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-53030-C0iGXE10..LHD199901-200107

BLACK,TRIM0#,2#

main46201-53040-C0iGXE10..RHD199901-200107

BLACK,TRIM0#,2#

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-53010iGXE10199901-200107

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90504-12005iGXE10199901-200107

46341EQUALIZER, PARKING BRAKE

main46341-24010iGXE10,JCE10199901-200107

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-53010iGXE10..RHD199901-200107

main46410-53020iGXE10..LHD199901-200107

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-53010iGXE10199901-200007

sub46420-53011

sub91626-60625

main46420-53011iGXE10200007-200507

46420KCLAMP, NO.4(FOR PARKING BRAKE CABLE)

main46421-51010iGXE10199901-200107

46420LCLAMP, NO.5(FOR PARKING BRAKE CABLE)

main46421-51020iGXE10,JCE10199901-200107

46420MCLAMP, NO.6(FOR PARKING BRAKE CABLE)

main46431-51010iGXE10199901-200107

46420NCLAMP, NO.7(FOR PARKING BRAKE CABLE)

main46431-51020iGXE10199901-200107

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-53010iGXE10199901-200007

sub46430-53011

sub91626-60625

main46430-53011iGXE10200007-200507

8401

9011906428

main90119-06428

9011908681

main90119-08681

9011910807

main90119-10807

9017006004

main90170-06004

9017906058

main90179-06058

9017908108

main90179-08108

9111180820

main91111-80820

9161160612

main91611-60612

9162660622

main91626-60622

9162660625

main91626-60625

22 parts on this diagram · 2 diagrams in section
