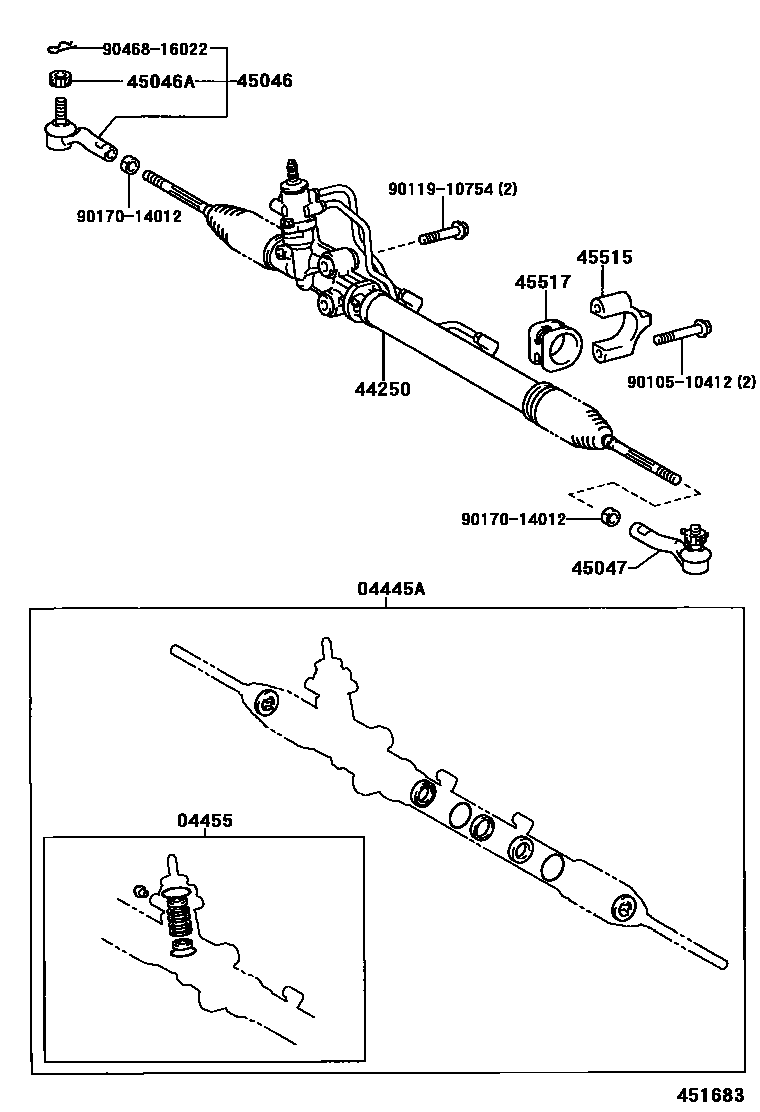

FRONT STEERING GEAR & LINK

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

04445AGASKET KIT, POWER STEERING GEAR(FOR RACK & PINION)

main04445-51010iGXE10199911-200010

sub04445-51011

main04445-51011iGXE10200010-200507

main04445-53010iGXE10199901-199911

sub04445-51010

04455GASKET KIT, POWER STEERING CONTROL VALVE OVERHOLE

main04455-51010iGXE10,JCE10199911-200507

main04455-53010iGXE10199901-199911

sub04455-51010

44250GEAR ASSY, POWER STEERING(FOR RACK & PINION)

main44250-53010iGXE10..RHD199901-200107

main44250-53020iGXE10..LHD199901-200107

main44250-53030iGXE10,JCE10..RHD200107-200209

main44250-53050iGXE10,JCE10..LHD200107-200209

45046END SUB-ASSY, TIE ROD, RH

main45460-59035iGXE10199901-200507

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12002iGXE10199901-200107

45047END SUB-ASSY, TIE ROD, LH

main45470-59035iGXE10199901-200507

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-22120iGXE10199901-200107

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-22070iGXE10199901-200107

9010510412

main90105-10412

9011910754

main90119-10754

9017014012

main90170-14012

9046816022

main90468-16022

12 parts on this diagram · 8 diagrams in section
