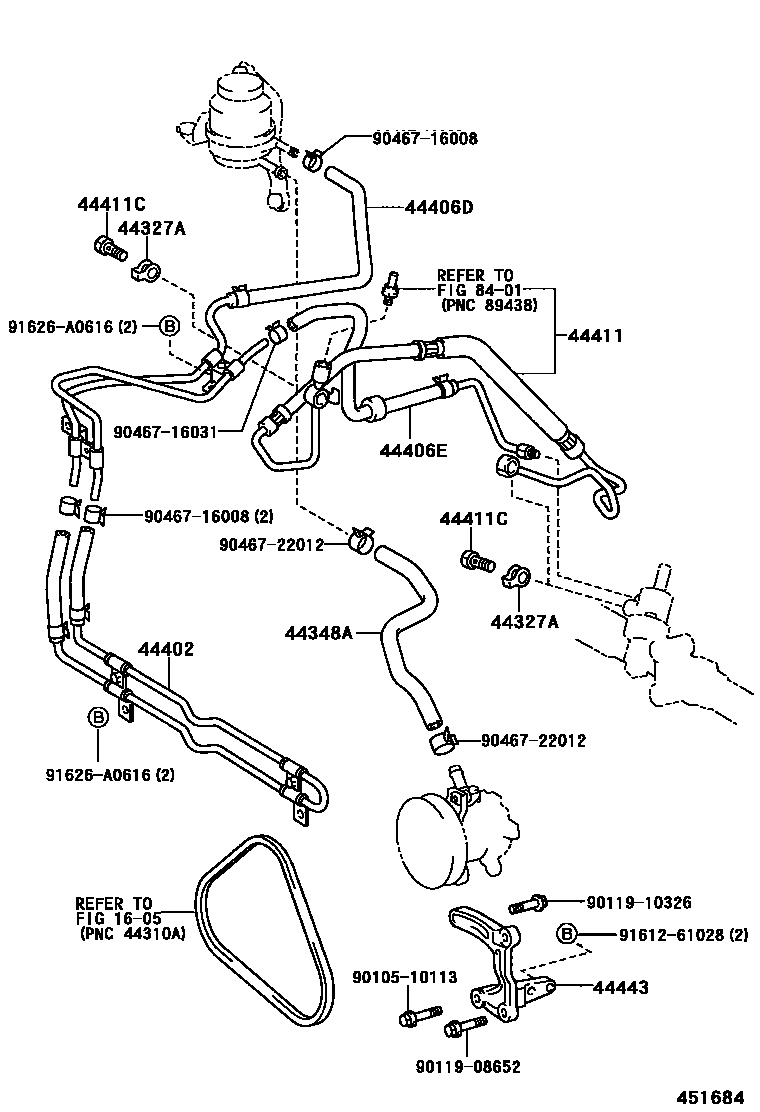

POWER STEERING TUBE

0001 1 0002 1 0003 1 0004 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-30030iGXE10199901-200107

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-53020iGXE10199901-200107

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-53020iGXE10199901-200107

sub44402-53021

main44402-53021iGXE10200107

main44402-53031iJCE10200107

44406DTUBE SUB-ASSY, RETURN, NO.1

main44406-53050iGXE10199901-200107

main44406-53080iJCE10200107

44406ETUBE SUB-ASSY, RETURN, NO.2

main44406-53040iGXE10..RHD199901-200107

main44406-53070iJCE10..LHD200107

44411HOSE, PRESSURE FEED

main44411-53020iGXE10..RHD199901-200107

main44411-53030iJCE10..LHD200107

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main96341-41603iGXE10199901-200107

44443BRACKET, PUMP

main44443-22150iGXE10199901-200107

8401

9010510113

main90105-10113

9011908652

main90119-08652

9011910326

main90119-10326

9046716008

main90467-16008

9046716031

main90467-16031

9046722012

main90467-22012

9161261028

main91612-61028

91626A0616

main91626-A0616

18 parts on this diagram · 4 diagrams in section
