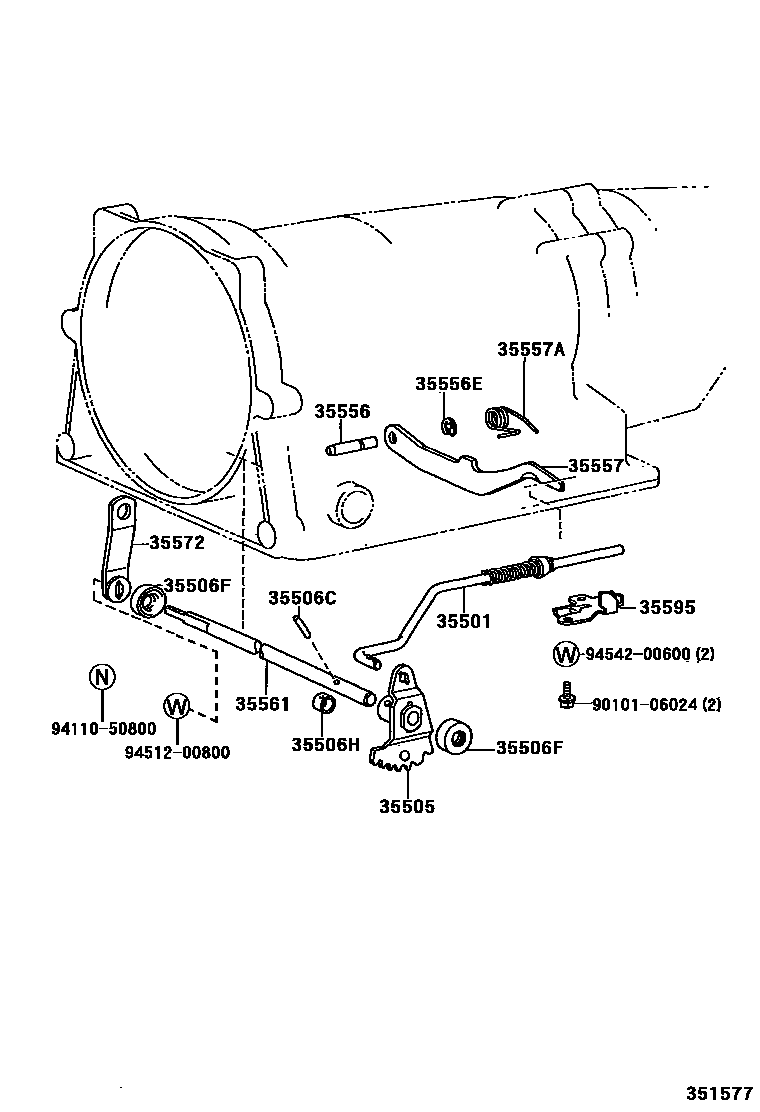

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A47DE 0002 1A650E

35501ROD SUB-ASSY, PARKING LOCK

main35501-26020iGXE10..ATM199901-200107

main35501-30020iJCE10200107

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-22070iGXE10..ATM199901-200107

main35505-50020iJCE10200107

35506CPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT)

main90254-04011iGXE10..ATM199901-200107

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-11003iGXE10..ATM199901-200107

main90311-12002iJCE10200107

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20003iGXE10..ATM199901-200302

sub90560-20025

main90560-20006iJCE10200107-200302

main90560-20025iGXE10,JCE10..ATM200302

35556SHAFT, PARKING LOCK PAWL

main35556-26010iGXE10..ATM199901-200107

main35556-30030iJCE10200107

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGXE10..ATM199901-200107

35557PAWL, PARKING LOCK

main35557-35010iGXE10..ATM199901-200107

main35590-30010iJCE10200107

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-25001iGXE10..ATM199901-200107

main90949-03065iJCE10200107

35561SHAFT, MANUAL VALVE LEVER

main35561-22030iGXE10..ATM199901-200107

main35561-30070iJCE10200107

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-22050iGXE10..ATM199901-200107

main35572-30080iJCE10200107

35595BRACKET, PARKING LOCK PAWL

main35595-30020iJCE10200107

main35595-40010iGXE10..ATM199901-200107

9010106024

main90101-06024

9411050800

main94110-50800

9451200800

main94512-00800

9454200600

main94542-00600

16 parts on this diagram · 2 diagrams in section
