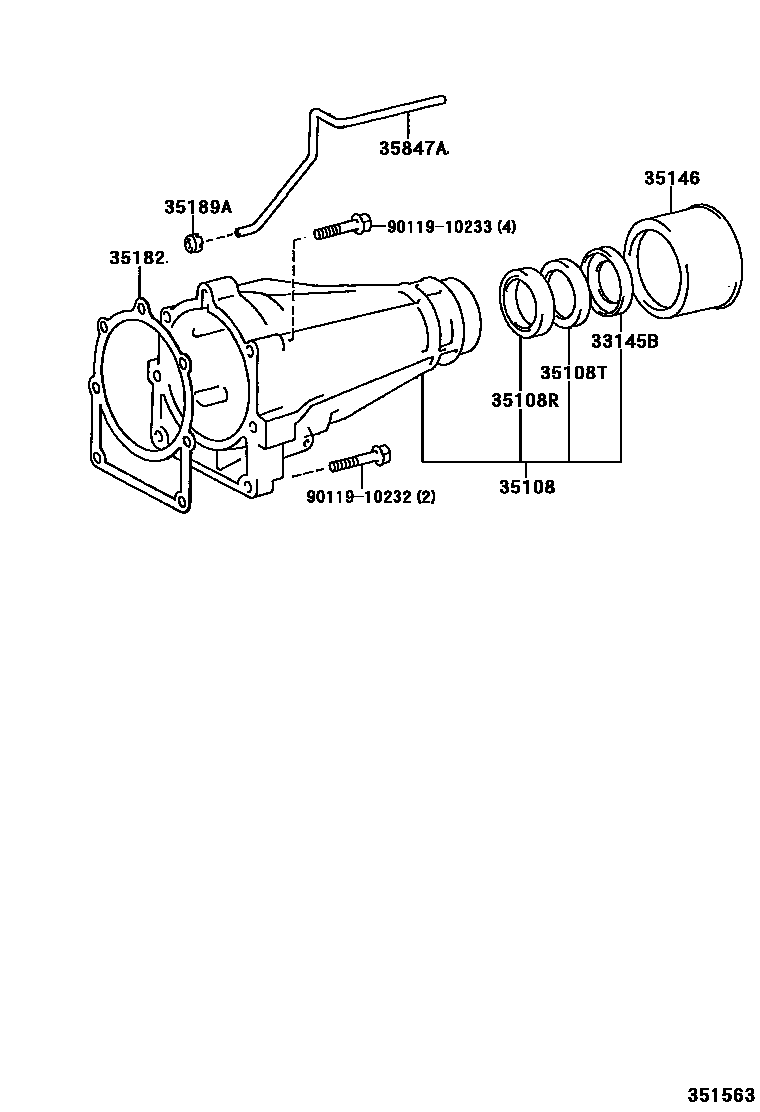

EXTENSION HOUSING (ATM)

0001 1A47DE 0002 1A650E

33145BRETAINER, EXTENSION HOUSING DUST SEAL

main33145-30010iGXE10..ATM199901-200107

35108HOUSING SUB-ASSY, EXTENSION (ATM)

main35108-22090iGXE10..ATM199901-200107

main35180-30040iJCE10200407

main35180-53010iJCE10200107-200407

35108RSEAL, OIL (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90311-38032iGXE10..ATM199901-200107

main90311-40001iJCE10200107

35108TSEAL, DUST (FOR AUTOMATIC TRANSMISSION EXTENSION HOUSING)

main90303-38010iGXE10..ATM199901-200107

35146DEFLECTOR, EXTENSION HOUSING DUST (ATM)

main33146-30020iGXE10..ATM199901-200107

35182GASKET, EXTENSION HOUSING (ATM)

main35182-28010iGXE10..ATM199901-200107

35189AGASKET, EXTENSION HOUSING BUSH APPLY TUBE

main35189-30010iGXE10..ATM199901-200107

35847ATUBE, EXTENSION HOUSING BUSH APPLY

main35847-30020iGXE10..ATM199901-200107

9011910232

main90119-10232

9011910233

main90119-10233

10 parts on this diagram · 2 diagrams in section
