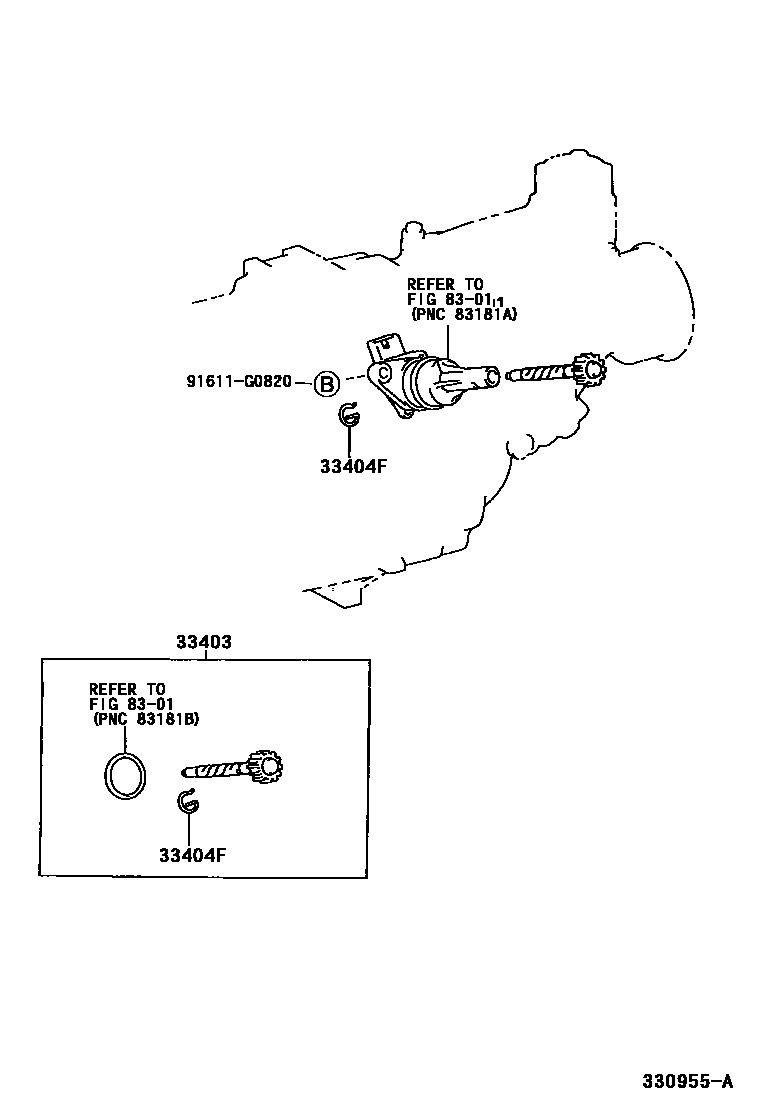

SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33403-29315iGXE10..MTM199901-200107

N=32,MARK 32:10

main33403-29325iGXE10..MTM..ARL200001-200107

N=33,MARK 33:10

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iGXE10..MTM199901-200107

8301

91611G0820

main91611-G0820

4 parts on this diagram · 1 diagram in section
