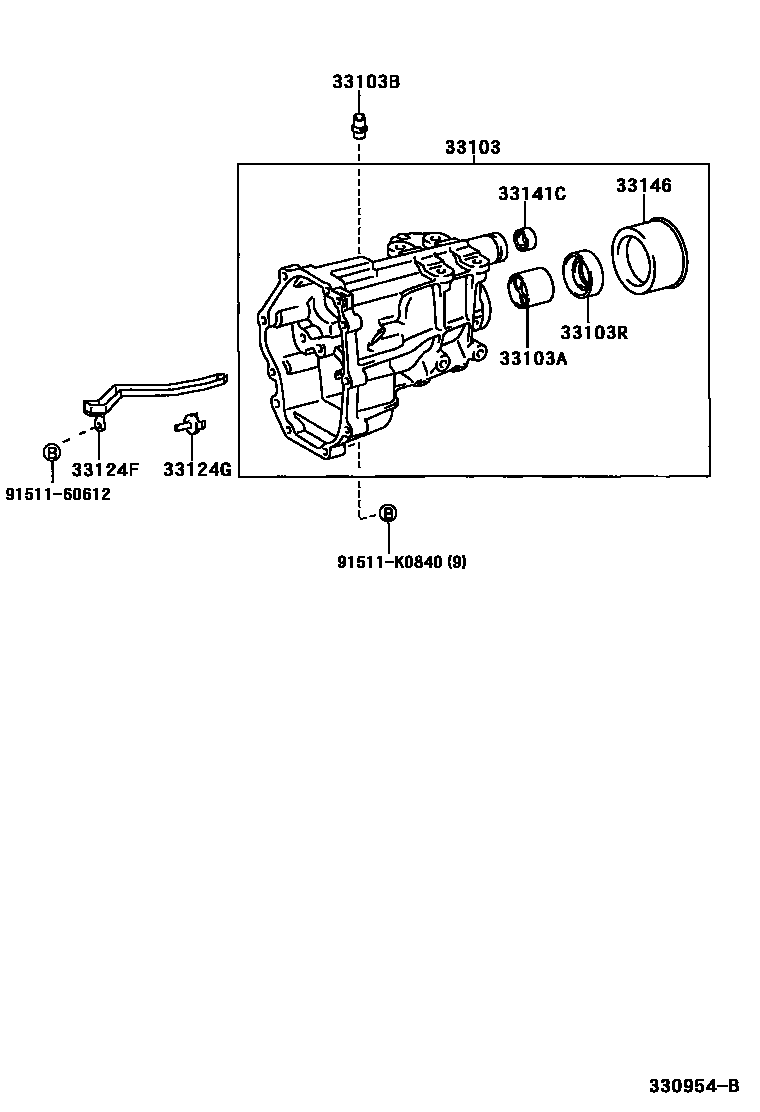

EXTENSION HOUSING (MTM)

33103HOUSING SUB-ASSY, EXTENSION(MTM)

main33103-53010iGXE10..MTM199901-200208

sub33103-53H00

main33103-53011iGXE10..MTM200208-200507

33103ABUSH(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90999-73105iGXE10..MTM199901-200507

33103BPLUG, BREATHER(FOR TRANSMISSION EXTENSION HOUSING)

main90930-03075iGXE10..MTM199901-200507

33103RSEAL, OIL(FOR MANUAL TRANSMISSION EXTENSION HOUSING)

main90311-38032iGXE10..MTM199901-200507

33124FPIPE, OIL RECEIVER, NO.1(FOR EXTENSION HOUSING)

main33124-53010iGXE10..MTM199901-200507

33124GPIPE, OIL RECEIVER, NO.2(FOR EXTENSION HOUSING)

main33124-35100iGXE10..MTM199901-200507

33141CSEAL, OIL(FOR EXTENSION HOUSING REAR)

main90311-18002iGXE10..MTM199901-200507

33146DEFLECTOR, EXTENSION HOUSING DUST(MTM)

main33146-30020iGXE10..MTM199901-200507

9151160612

main91511-60612

91511K0840

main91511-K0840

10 parts on this diagram · 1 diagram in section
