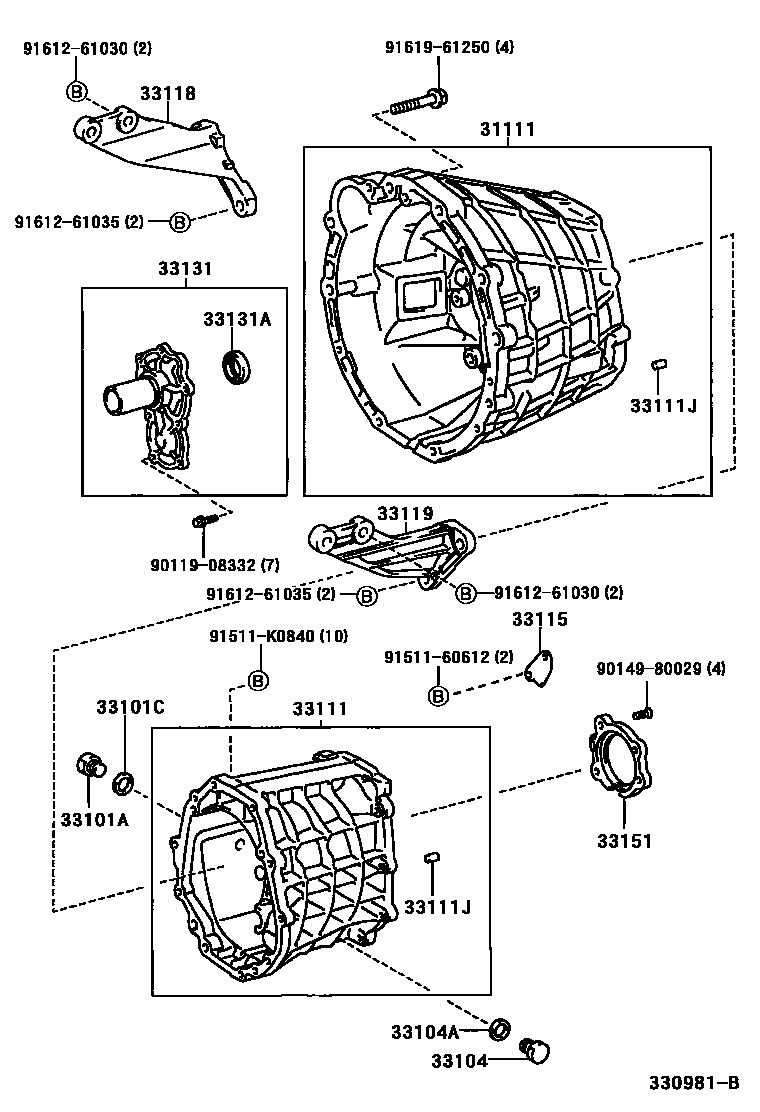

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31111HOUSING, CLUTCH

main33101-53020iGXE10..MTM199901-200507

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18006iGXE10..MTM199901-200507

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iGXE10..MTM199901-200507

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18057iGXE10..MTM199901-200507

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iGXE10..MTM199901-200507

33111CASE, MANUAL TRANSMISSION

main33106-53010iGXE10..MTM199901-200011

sub33106-53011

main33106-53011iGXE10..MTM200011-200507

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-10232iGXE10..MTM199901-200507

L=15,OD=8

33115PLATE, TRANSMISSION OIL FILTER

main33115-53010iGXE10..MTM199901-200507

33118PLATE, STIFFENER, RH(MTM)

main33118-22051iGXE10..MTM199901-200107

33119PLATE, STIFFENER, LH(MTM)

main33119-22042iGXE10..MTM199901-200107

33131RETAINER, BEARING, FRONT(MTM)

main33018-53010iGXE10..MTM199901-200507

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-29001iGXE10..MTM199901-200507

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-53010iGXE10..MTM199901-200507

9011908332

main90119-08332

9014980029

main90149-80029

9151160612

main91511-60612

91511K0840

main91511-K0840

9161261030

main91612-61030

9161261035

main91612-61035

9161961250

main91619-61250

20 parts on this diagram · 1 diagram in section
