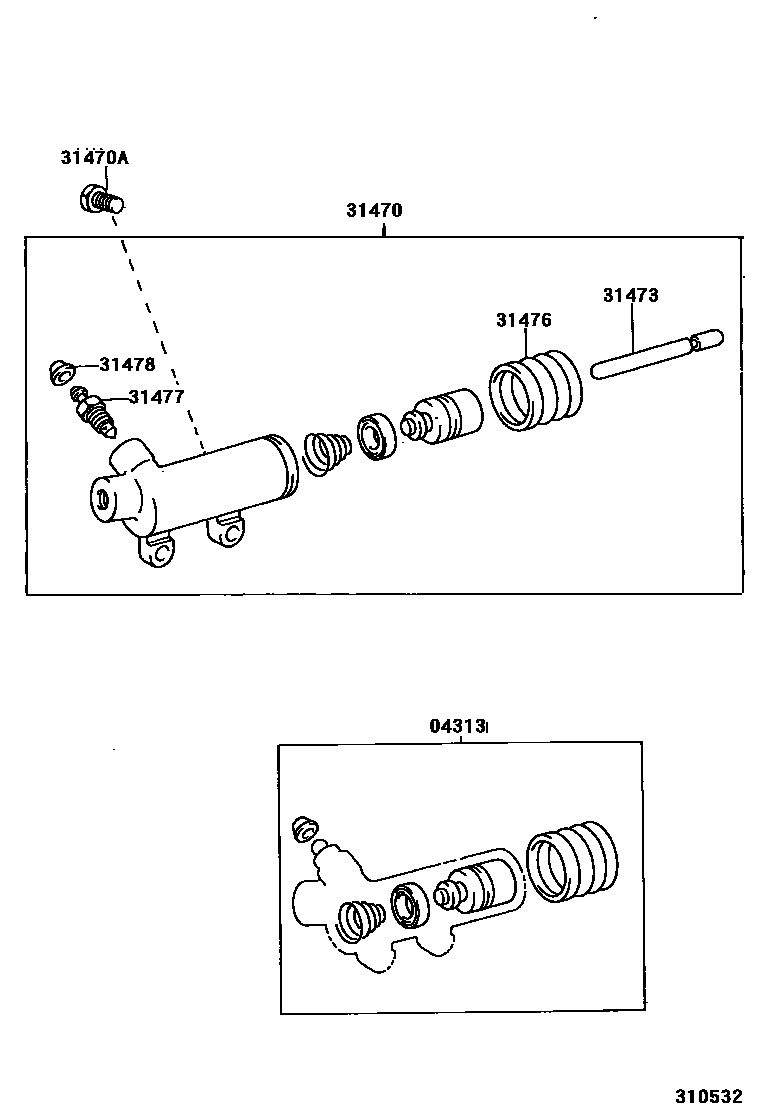

CLUTCH RELEASE CYLINDER

04313CYLINDER KIT, CLUTCH RELEASE

main04313-30130iGXE10..MTM199901-200005

main04313-53010iGXE10..MTM200005-200107

31470CYLINDER ASSY, CLUTCH RELEASE

main31470-30270iGXE10..MTM199901-200010

main31470-53020iGXE10..MTM200010-200507

31470ABOLT(FOR CLUTCH RELEASE CYLINDER SETTING)

main91611-B0825iGXE10..MTM199901-200507

*8-1.25PX25-25

31473ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1

main31473-30070iGXE10..MTM199901-200507

31476BOOT, CLUTCH RELEASE CYLINDER

main31476-22010iGXE10..MTM199901-200507

31477PLUG, BLEEDER(FOR RELEASE CYLINDER)

main47547-12010iGXE10..MTM199901-200507

31478CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)

main31478-30010iGXE10..MTM199901-200507

7 parts on this diagram · 1 diagram in section
