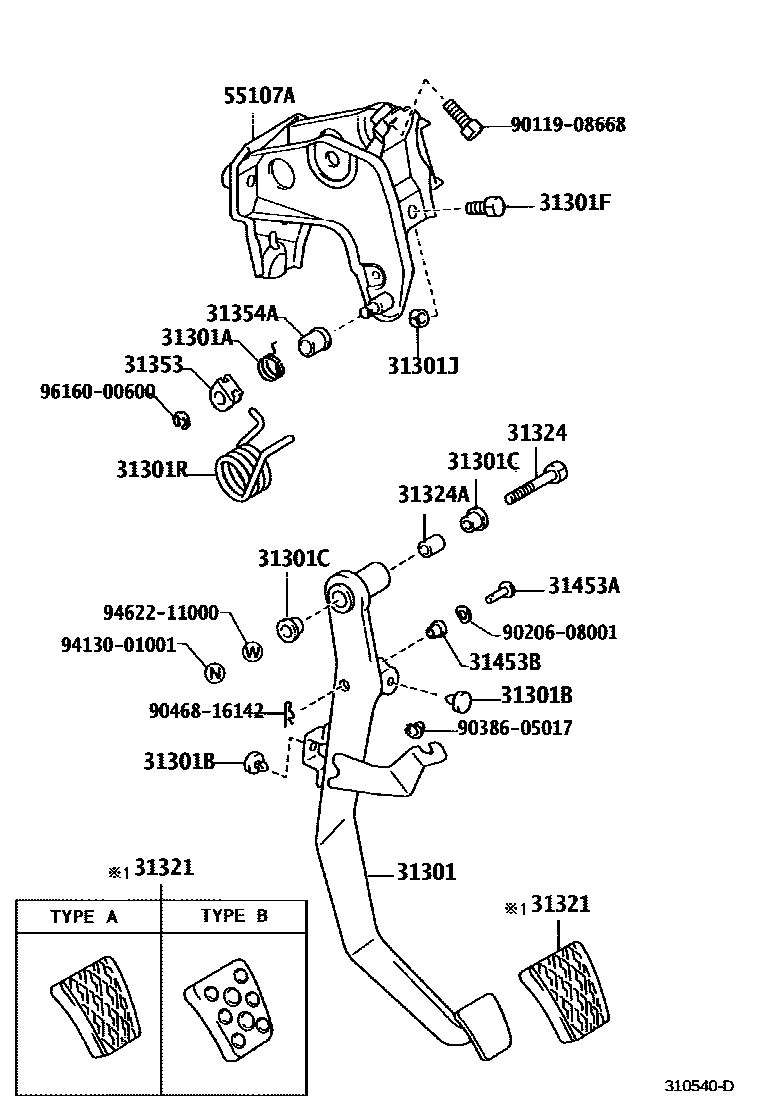

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-53010iGXE10..RHD..MTM199901-200001

main31301-53020iGXE10..LHD..MTM199901-200001

main31301-53030iGXE10..RHD..MTM200001-200107

sub31301-22270

main31301-53040iGXE10..LHD..MTM200001-200107

31301ASPRING(FOR CLUTCH PEDAL)

main90949-03081iGXE10..MTM199901-200107

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06036iGXE10..MTM199901-200107

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iGXE10..MTM199901-200107

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iGXE10..MTM199901-200107

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94130-01001iGXE10..MTM199901-200107

31301RSPRING, COMPRESSION(FOR TURNOVER SPRING SEAT)

main90949-03082iGXE10..MTM199901-200001

main90949-03104iGXE10..RHD..MTM200001-200107

main90949-03105iGXE10..LHD..MTM200001-200107

31321PAD, CLUTCH PEDAL

main31321-12040iGXE10..MTM199901-200107

TYPE A:REFER TO ILLUSTRATION

main31321-53010iGXE10..MTM199901-200107

TYPE B:REFER TO ILLUSTRATION

31324SHAFT, CLUTCH PEDAL

main90101-10015iGXE10..MTM199901-200107

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iGXE10..MTM199901-200107

31353HOLDER, CLUTCH PEDAL SPRING

main31353-14010iGXE10..MTM199901-200107

31354ABUSH(FOR CLUTCH PEDAL SPRING SEAT UPPER)

main90386-13015iGXE10..MTM199901-200107

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iGXE10..MTM199901-200107

L=23.5

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08033iGXE10..MTM199901-199909

main90386-08036iGXE10..MTM199909-200107

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-53010iGXE10..RHD..MTM199901-200107

main55107-53020iGXE10..LHD..MTM199901-200102

sub55107-53021

main55107-53021iGXE10..LHD..MTM200102-200107

9011908668

main90119-08668

9020608001

main90206-08001

9038605017

main90386-05017

9046816142

main90468-16142

9413001001

main94130-01001

9462211000

main94622-11000

9616000600

main96160-00600

22 parts on this diagram · 3 diagrams in section
