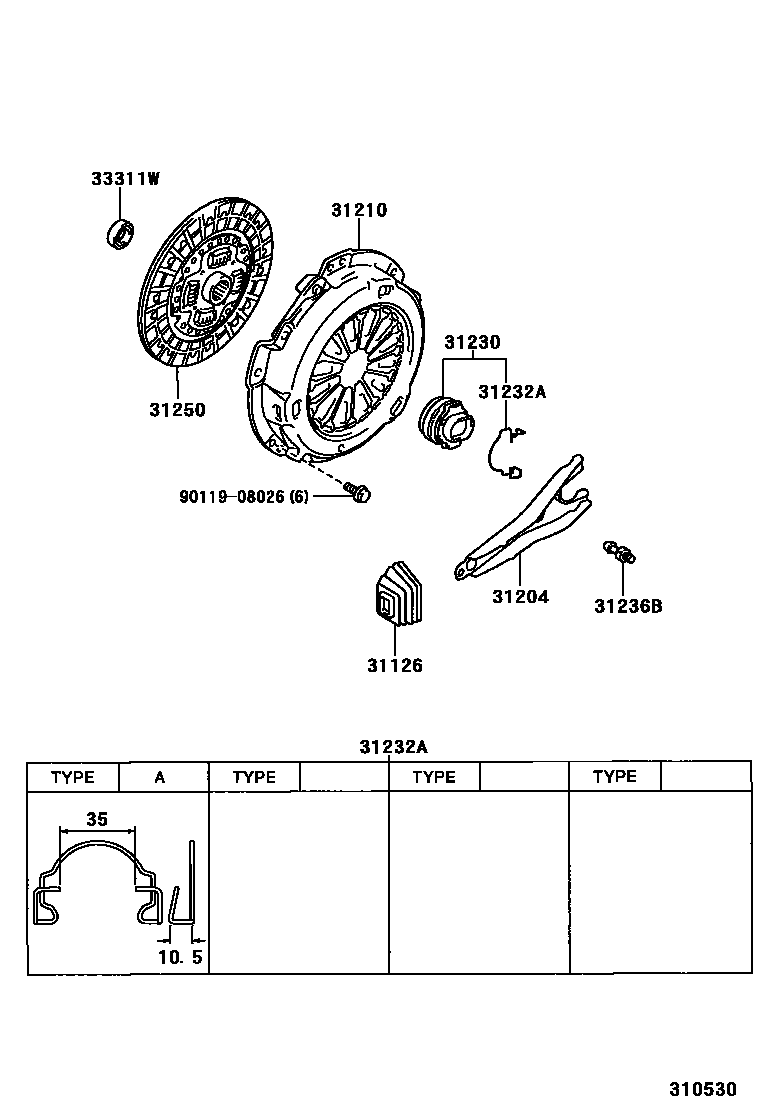

CLUTCH & RELEASE FORK

31126BOOT, CLUTCH RELEASE FORK

main31126-14010iGXE10..MTM199901-200507

31204FORK SUB-ASSY, CLUTCH RELEASE

main31204-43010iGXE10..MTM199901-200507

31210COVER ASSY, CLUTCH

main31210-53010iGXE10..MTM199901-200107

sub31210-53040

31230BEARING ASSY, CLUTCH RELEASE

main31230-53021iGXE10..MTM199901-200304

sub31230-53022

main31230-53022iGXE10..MTM200304-200507

31232ACLIP, RELEASE BEARING HUB

main31232-36030iGXE10..MTM199901-200507

TYPE A:REFER TO ILLUSTRATION

31236BSUPPORT, RELEASE FORK

main31236-14010iGXE10..MTM199901-200507

31250DISC ASSY, CLUTCH

main31250-53011iGXE10..MTM199901-199905

sub31250-53012

main31250-53012iGXE10..MTM199905-200208

sub31250-53030

main31250-53030iGXE10..MTM200208

33311WBEARING (FOR INPUT SHAFT)

main90363-12003iGXE10..MTM199901-200107

9011908026

main90119-08026

9 parts on this diagram · 1 diagram in section
