IGNITION COIL & SPARK PLUG / GLOW PLUG

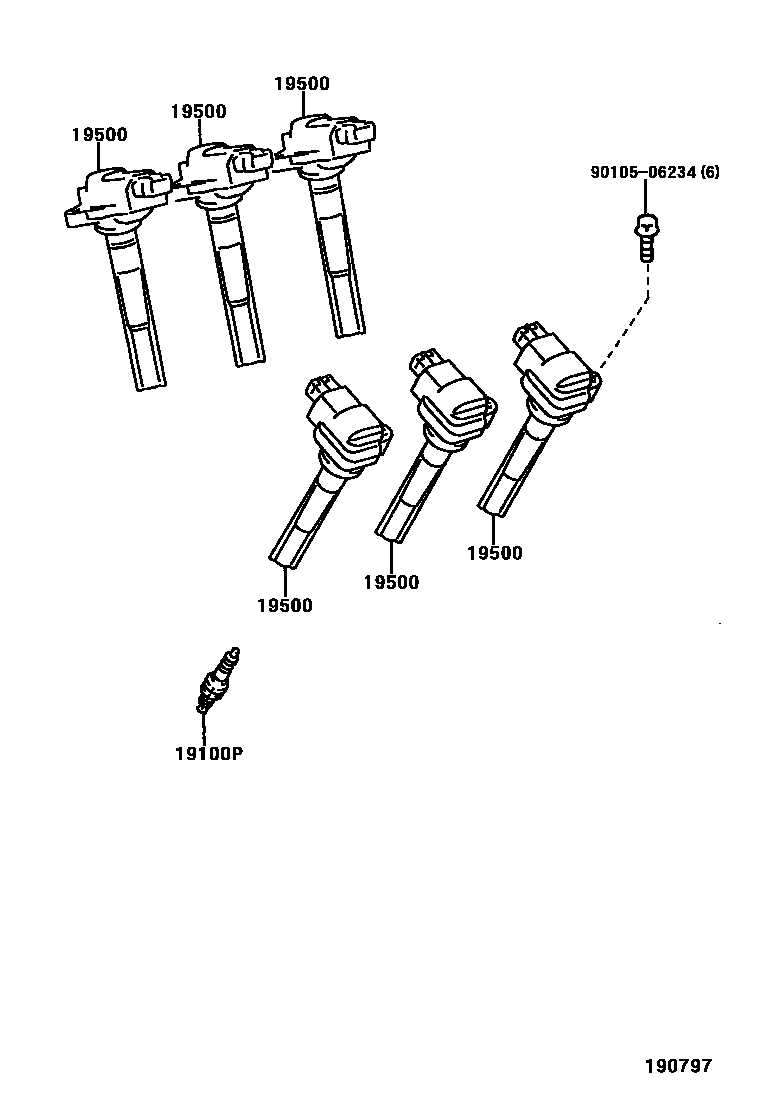

Parts diagram

19100PPLUG, SPARK

main90919-01210i199901-200107

SK20R11

main90919-01225i200107

SK20R-P11

19500COIL ASSY, IGNITION

main90919-02216i200107

main90919-02230i199901-200107

9010506234

main90105-06234

3 parts on this diagram · 2 diagrams in section
