EXHAUST PIPE

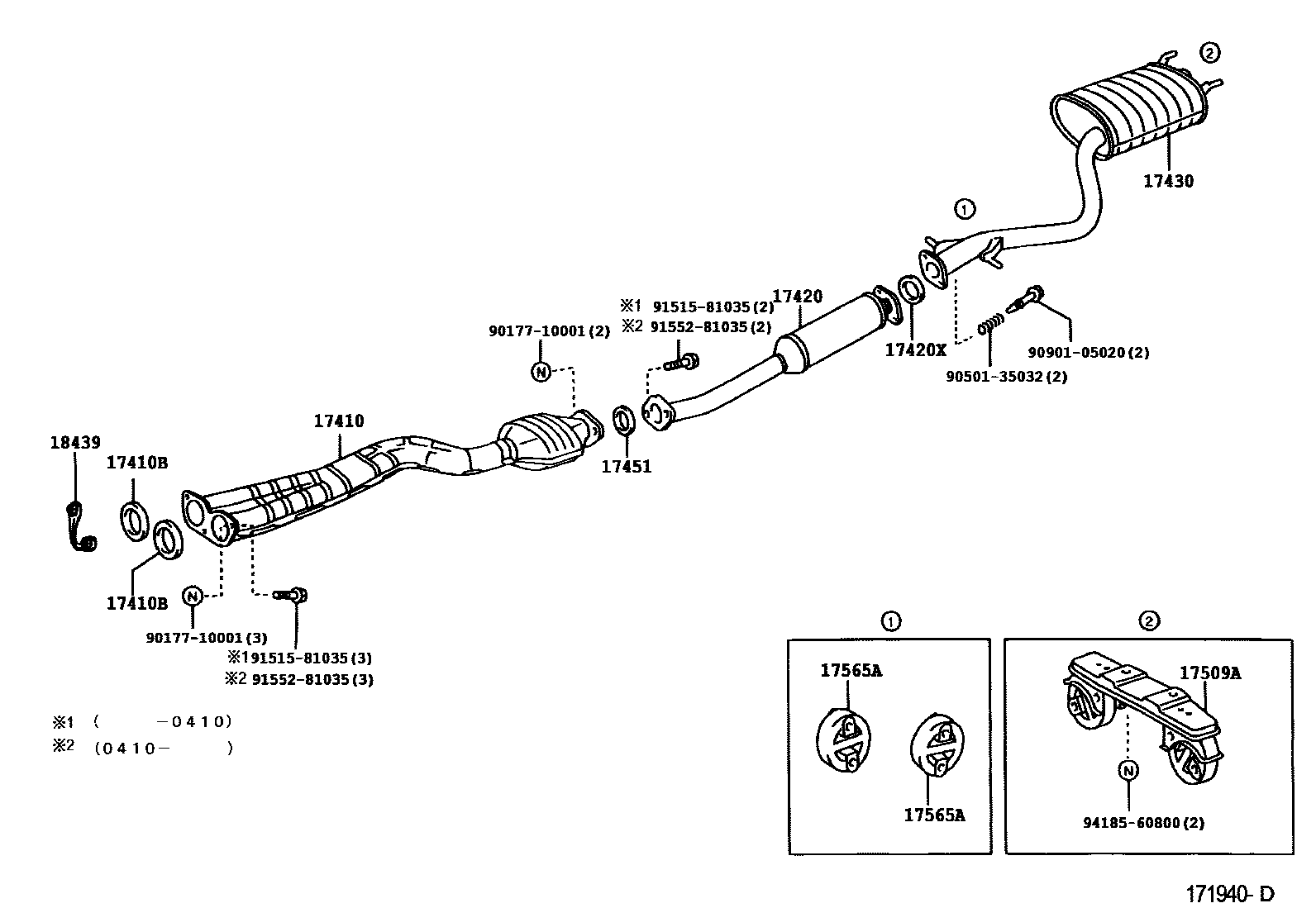

Parts diagram

17410PIPE ASSY, EXHAUST, FRONT

main17410-46580i200107

*115=TOYOTA/01-/Y

main17410-70270i199901-200107

*115=TOYOTA/99-/Y

17410BGASKET, EXHAUST PIPE

main90917-06046i199901-200107

17420PIPE ASSY, EXHAUST, CENTER

main17420-46550i200107

main17420-70340i199901-200107

main17420-70370i200107

17420XGASKET, EXHAUST PIPE, CENTER

main17451-74060i199901-200107

17430PIPE ASSY, EXHAUST, TAIL

main17430-46660i200107

KOREA SPEC

main17430-70670i199901-200107

main17430-70730i200011-200107

KOREA SPEC

main17430-70740i200107

17451GASKET, EXHAUST PIPE

main90917-06076i199901-200107

17509ABRACKET SUB-ASSY, EXHAUST PIPE NO.4 SUPPORT

main17509-74230i199901-200107

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-46040i199901-200107

18439BRACKET, CONVERTOR PROTECTOR, REAR

main18495-46020i199901-200107

9017710001

main90177-10001

9050135032

main90501-35032

9090105020

main90901-05020

9151581035

main91515-81035

9155281035

main91552-81035

9418560800

main94185-60800

15 parts on this diagram · 2 diagrams in section
