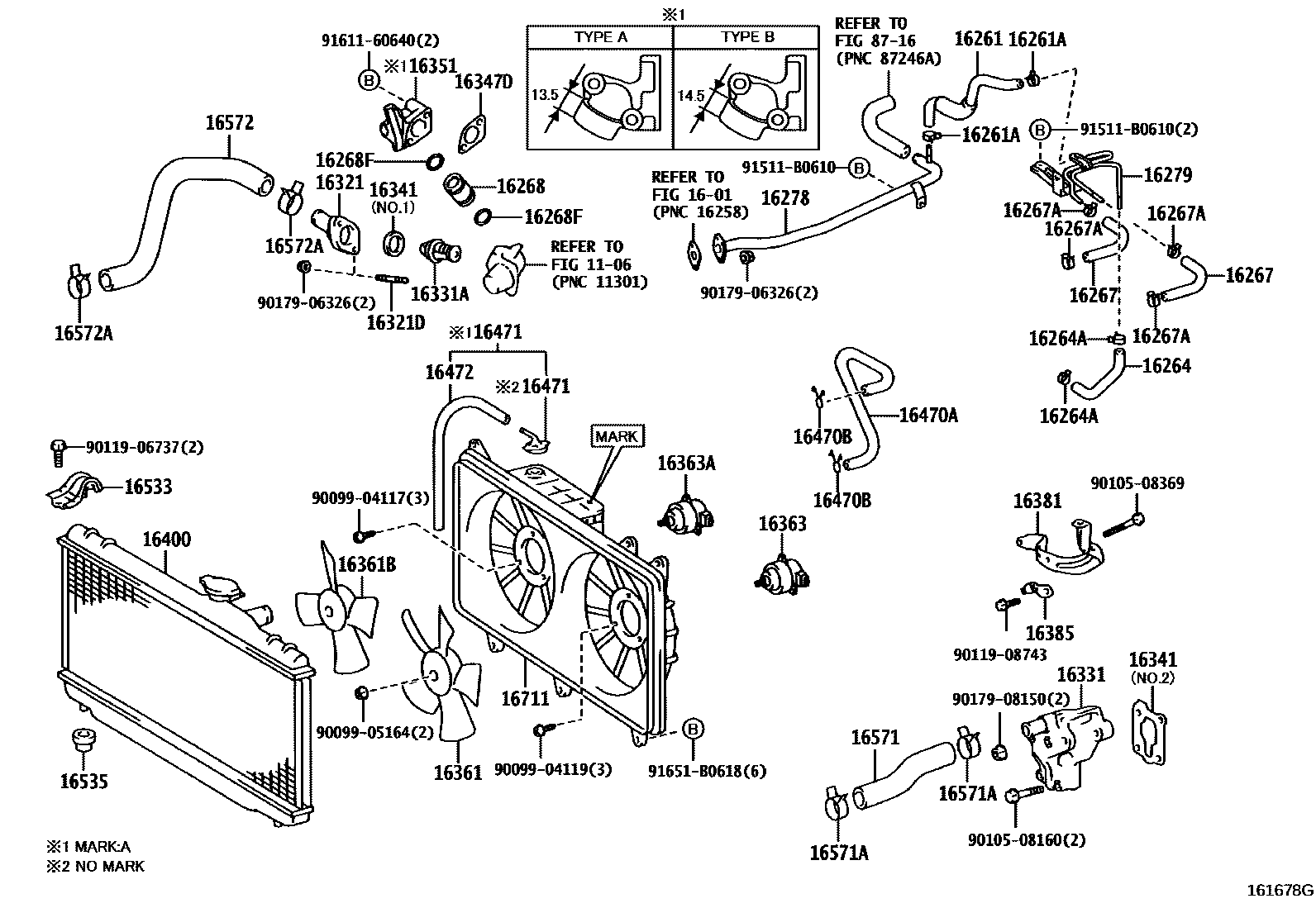

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1

1106

1601

16261HOSE, WATER BY-PASS

main16261-46020i2JZGE..JCE10200107

main16261-70090i1GFE..GXE10..ATM199901-200107

main16261-70100i1GFE..GXE10..MTM199901-200107

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13001i1GFE..GXE10199901-200107

sub96135-51300

main96135-51300i1GFE..GXE10200107-200507

16264HOSE, WATER BY-PASS, NO.2

main16264-46041i2JZGE..JCE10200107

main16264-70100i1GFE..GXE10199901-200101

sub99555-10200

main99555-10200i1GFE..GXE10200101-200107

*H,L=140

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13001i1GFE..GXE10199901-200107

sub96135-51300

main96135-51300i2JZGE..JCE10200107-200507

16267HOSE, WATER BY-PASS, NO.3

main16267-46030i2JZGE..JCE10200107

sub16267-46900

main16267-70070i1GFE..GXE10199901-200107

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90466-21001i2JZGE..JCE10200107

main90467-13001i1GFE..GXE10199901-200107

sub96135-51300

main96135-51300i1GFE..GXE10200107-200507

16268PIPE, WATER BY-PASS, NO.1

main16268-46011i2JZGE..JCE10200107

main16268-70031i1GFE..GXE10199901-200107

16268FRING, O(FOR WATER BY-PASS PIPE)

main90301-17009i1GFE..GXE10199901-200107

main90301-17009i1GFE..GXE10200107-200207

PNC 16351=TYPE A

main90301-17016i1GFE..GXE10200207-200507

PNC 16351=TYPE B

main96761-24022i2JZGE..JCE10200107

16278PIPE, WATER BY-PASS, NO.2

main16278-46100i2JZGE..JCE10200107

main16278-70080i1GFE..GXE10..ATM199901-200107

main16278-70090i1GFE..GXE10..MTM199901-200107

16279PIPE, WATER BY-PASS, NO.3

main16279-46030i2JZGE..JCE10200107

main16279-70080i1GFE..GXE10199901-200107

16321INLET, WATER

main16321-46040i2JZGE..JCE10200107

main16321-70030i1GFE..GXE10199901-200107

16321DBOLT, STUD(FOR WATER INLET)

main16193-63010i1GFE..GXE10199901-200107

16331OUTLET, WATER

main16304-70020i1GFE..GXE10199901-200107

main16331-46100i2JZGE..JCE10200107

16331ATHERMOSTAT

main90916-03081i1GFE..GXE10199901-200107

*WAX 82-95

main90916-03093i2JZGE..JCE10200107

*WAX 82-95

16341GASKET, WATER OUTLET

main16341-35010i1GFE..GXE10199901-200107

NO.1

main16341-70040i1GFE..GXE10199901-200107

NO.2

16347DGASKET, WATER BY-PASS

main16347-70021i1GFE..GXE10199901-200107

16351OUTLET, WATER BY-PASS

main16351-46022i2JZGE..JCE10200107

main16351-70010i1GFE..GXE10199901-200107

sub16351-70011

main16351-70010i1GFE..GXE10200107-200207

TYPE A:REFER ILLUST.

sub16351-70011

main16351-70011i1GFE..GXE10200207-200507

TYPE B:REFER ILLUST.

16361FAN

main16361-46080i2JZGE..JCE10200107

main16361-70070i1GFE..GXE10199901-200107

16361BFAN, NO.2

main16361-46090i2JZGE..JCE10200107

main88453-33010i1GFE..GXE10199901-200107

16363MOTOR, COOLING FAN

main16363-46050i2JZGE..JCE10200107

sub16363-46190

main16363-70010i1GFE..GXE10199901-200107

sub16363-64240

16363AMOTOR, COOLING FAN, NO.2

main16363-46120i2JZGE..JCE10200107

main16363-74340i1GFE..GXE10199901-200107

16381BAR, FAN BELT ADJUSTING

main16381-70060i1GFE..GXE10199901-200107

16385SLIDER, FAN BELT ADJUSTING

main16385-70030i1GFE..GXE10199901-200107

16400RADIATOR ASSY

main16400-46720i2JZGE..JCE10200107-200411

sub16400-46721

main16400-46721i2JZGE..JCE10200411

main16400-70620i1GFE..GXE10..ATM..ARL;1GFE..GXE10..LHD..ATM199901-200411

CORE THICKNESS=16

sub16400-70621

main16400-70621i1GFE..GXE10..ATM200411

CORE THICKNESS=16

main16400-70630i1GFE..GXE10..RHD..MTM199901-200411

CORE THICKNESS=16

sub16400-70631

main16400-70631i1GFE..GXE10..RHD..MTM200411

CORE THICKNESS=16

main16400-70640i1GFE..GXE10..ATM199901-200411

CORE THICKNESS=27

sub16400-70641

main16400-70641i1GFE..GXE10..ATM200411

CORE THICKNESS=27

main16400-70650i1GFE..GXE10..MTM199901-200411

CORE THICKNESS=27

sub16400-70651

main16400-70651i1GFE..GXE10..MTM200411

CORE THICKNESS=27

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main16377-70010i1GFE..GXE10199901-200507

main16565-46070i2JZGE..JCE10200107

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i1GFE..GXE10199901-200507

16471CAP SUB-ASSY, RESERVE TANK

main16405-46200i1GFE..GXE10199901-200507

NO MARK:REF.ILLUST

main16405-46200i2JZGE..JCE10200107-200507

NO MARK:REFER TO ILLUSTRATION

main16405-70130i1GFE..GXE10199901-200507

MARK A:REFER ILLUST.

main16405-70130i1GFE..GXE10200107-200507

MARK A:REFER TO ILLUSTRATION

16472HOSE, BREATHER

main90445-12078i1GFE..GXE10199901-200507

L=600(*H,L=500)

16533SUPPORT, RADIATOR, UPPER

main16505-70060i1GFE..GXE10199901-200107

16535SUPPORT, RADIATOR, LOWER

main90480-40021i1GFE..GXE10199901-200107

16571HOSE, RADIATOR, INLET

main16571-46310i2JZGE..JCE10200107

main16571-70320i1GFE..GXE10199901-200107

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37005i2JZGE..JCE10200107

main90467-37006i1GFE..GXE10199901-200107

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-46290i2JZGE..JCE10200107

main16572-70260i1GFE..GXE10199901-200107

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-41007i2JZGE..JCE10200308-200410

NO.2

main90467-37005i2JZGE..JCE10200107

NO.1

main90467-37006i1GFE..GXE10199901-200107

sub90467-37005

main90467-41002i2JZGE..JCE10200107-200307

NO.2

sub90466-41008

main96136-54801i2JZGE..JCE10200411

NO.2

16711SHROUD, FAN

main16711-46350i2JZGE..JCE10200107-200507

main16711-70190i1GFE..GXE10199901-200107

8716

9009904117

main90099-04117

9009904119

main90099-04119

9009905164

main90099-05164

9010508160

main90105-08160

9010508369

main90105-08369

9011906737

main90119-06737

9011908743

main90119-08743

9017906326

main90179-06326

9017908150

main90179-08150

91511B0610

main91511-B0610

9161160640

main91611-60640

91651B0618

main91651-B0618

50 parts on this diagram · 5 diagrams in section
