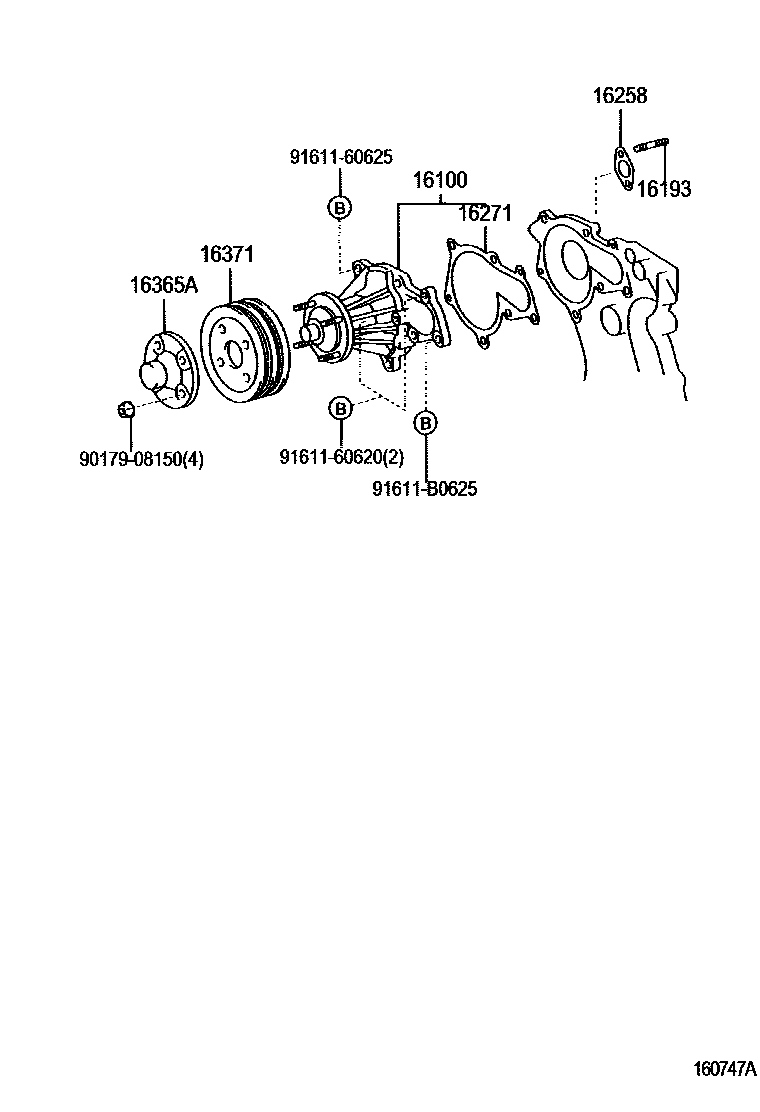

WATER PUMP

0001 1 0002 1

16100PUMP ASSY, ENGINE WATER

main16100-49876i2JZGE..JCE10200107-200507

sub16100-49877

main16100-79285i1GFE..GXE10199901-200107

16193BOLT, STUD(FOR WATER PUMP COVER)

main16192-70010×2i1GFE..GXE10199901-200107

main16193-46030×2i2JZGE..JCE10200107

16258GASKET(FOR HEATER RETURN)

main16258-70020i1GFE..GXE10199901-200107

16271GASKET, WATER PUMP

main16124-70041i1GFE..GXE10199901-200107

16365ASPACER, FAN

main16365-70010i1GFE..GXE10199901-200107

16371PULLEY, FAN

main16371-46040i2JZGE..JCE10200107

main16371-70060i1GFE..GXE10199901-200107

sub16371-70061

9017908150

main90179-08150

9161160620

main91611-60620

9161160625

main91611-60625

91611B0625

main91611-B0625

10 parts on this diagram · 2 diagrams in section
