CAMSHAFT & VALVE

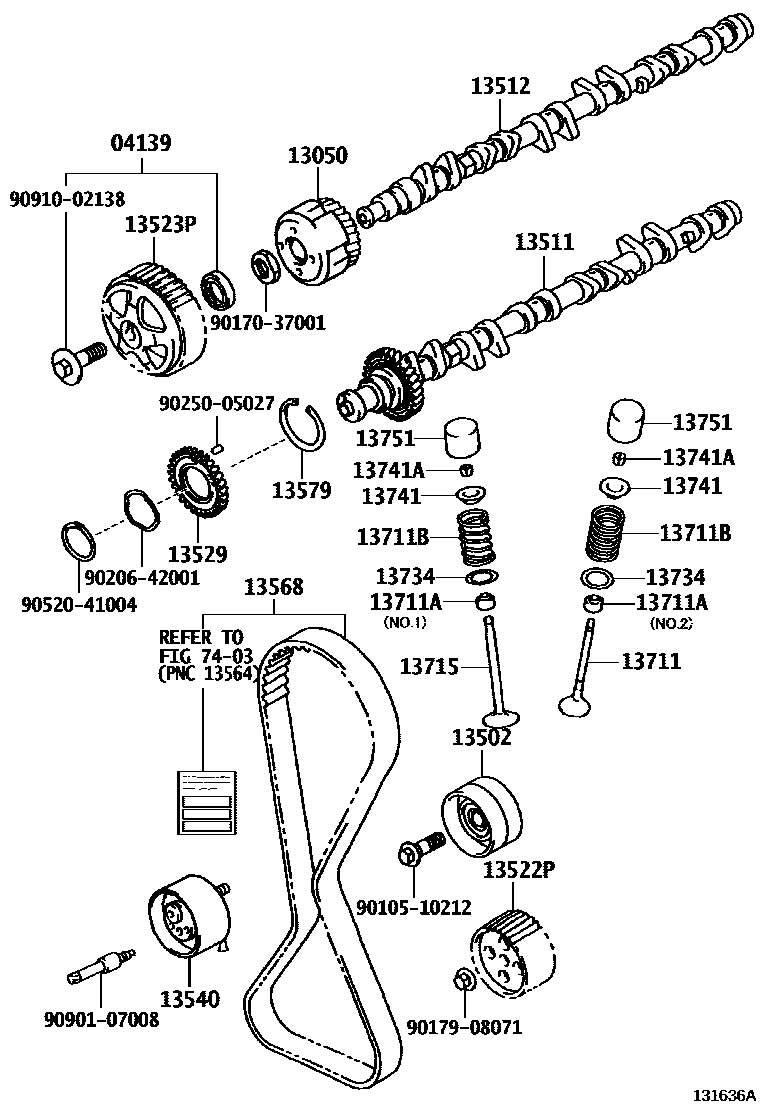

Parts diagram
04139BOLT KIT, CAMSHAFT TIMING PULLEY
main04139-70010i199901-200107
13050GEAR ASSY, CAMSHAFT TIMING
main13050-70010i199901-200107
13502IDLER SUB-ASSY, TIMING BELT, NO.2
main13503-70080i200107
13511CAMSHAFT
main13501-46080i200107
main13501-70110i199901-200107
13512CAMSHAFT, NO.2
main13502-46011i200107
main13502-70060i199901-200107
13522PPULLEY, PUMP DRIVE SHAFT
main13524-70050i199901-200107
13523PPULLEY, CAMSHAFT TIMING
main13050-46010i200107
LH
main13523-46030i200107
RH
main13523-70050i199901-200107
13529GEAR, CAMSHAFT SUB
main13529-70010i199901-200107
13540TENSIONER ASSY, CHAIN, NO.1
main13540-46030i200107
main13540-70020i200107-200507
main13540-70021i200507
13568BELT, TIMING
main13568-49036i200107-200507
main13568-79235i199901-200107
13579WASHER, CAMSHAFT TIMING GEAR BOLT
main13579-70010i200107
13711VALVE, INTAKE
main13711-46022×12i200107
main13711-70060×12i200107
13711ASEAL OR RING, O(FOR VALVE STEM OIL)
main90913-02088×12i200107
NO.2
main90913-02090×12i200107
NO.1
main90913-02092×12i199901-200107
NO.1
sub90913-02128
main90913-02093×12i200107
NO.2
13711BSPRING, COMPRESSION(FOR INNER)
main90501-28029×24i200107
main90905-01068×24i200107
13715VALVE, EXHAUST
main13715-46020×12i200107
main13715-70080×12i199901-200107
13734SEAT, VALVE SPRING
main13734-20010×24i200107
main90201-18017×24i200107
13741RETAINER, VALVE SPRING
main13741-22020×24i199901-200107
main13741-22021×24i200107
main13741-46020×24i200107
13741ALOCK, VALVE SPRING RETAINER
main90913-03025×48i200107
main90913-03031×48i200107
13751LIFTER, VALVE
main13751-22040×24i199901-200107
T=5.06
sub13751-21020
main13751-22050×24i199901-200107
T=5.08
sub13751-21030
main13751-22060×24i199901-200107
T=5.10
sub13751-21040
main13751-22070×24i199901-200107
T=5.12
sub13751-21050
main13751-22080×24i199901-200107
T=5.14
sub13751-21060
main13751-22090×24i199901-200107
T=5.16
sub13751-21070
main13751-22100i200107
T=5.18
sub13751-21080
main13751-22110i200107
T=5.20
sub13751-21090
main13751-22120i200107
T=5.22
sub13751-21100
main13751-22130i200107
T=5.24
sub13751-21110
main13751-22140i200107
T=5.26
sub13751-21120
main13751-22150i200107
T=5.28
sub13751-21130
main13751-22160i200107
T=5.30
sub13751-21140
main13751-22170×24i199901-200107
T=5.32
sub13751-21150
main13751-22180i200107
T=5.34
sub13751-21160
main13751-22190×24i199901-200107
T=5.36
sub13751-21170
main13751-22200×24i199901-200107
T=5.38
sub13751-21180
main13751-22210i200107
T=5.40
sub13751-21190
main13751-22220i200107
T=5.42
sub13751-21200
main13751-22230×24i199901-200107
T=5.44
sub13751-21210
main13751-22240×24i199901-200107
T=5.46
sub13751-21220
main13751-22250i200107
T=5.48
sub13751-21230
main13751-22260i200107
T=5.50
sub13751-21240
main13751-22270×24i199901-200107
T=5.52
sub13751-21250
main13751-22280×24i199901-200107
T=5.54
sub13751-21260
main13751-22290i200107
T=5.56
sub13751-21270
main13751-22300×24i199901-200107
T=5.58
sub13751-21280
main13751-22310i200107
T=5.60
sub13751-21290
main13751-22320i200107
T=5.62
sub13751-21300
main13751-22330i200107
T=5.64
sub13751-21310
main13751-22340i200107
T=5.66
sub13751-21320
main13751-22350×24i199901-200107
T=5.68
sub13751-21330
main13751-22360×24i199901-200107
T=5.70
sub13751-21340
main13751-22370i200107
T=5.72
sub13751-21350
main13751-22380×24i199901-200107
T=5.74
sub13751-21360
main13751-46740×24i200107
7403
9010510212
main90105-10212
9017037001
main90170-37001
9017908071
main90179-08071
9020642001
main90206-42001
9025005027
main90250-05027
9052041004
main90520-41004
9090107008
main90901-07008
9091002138
main90910-02138
