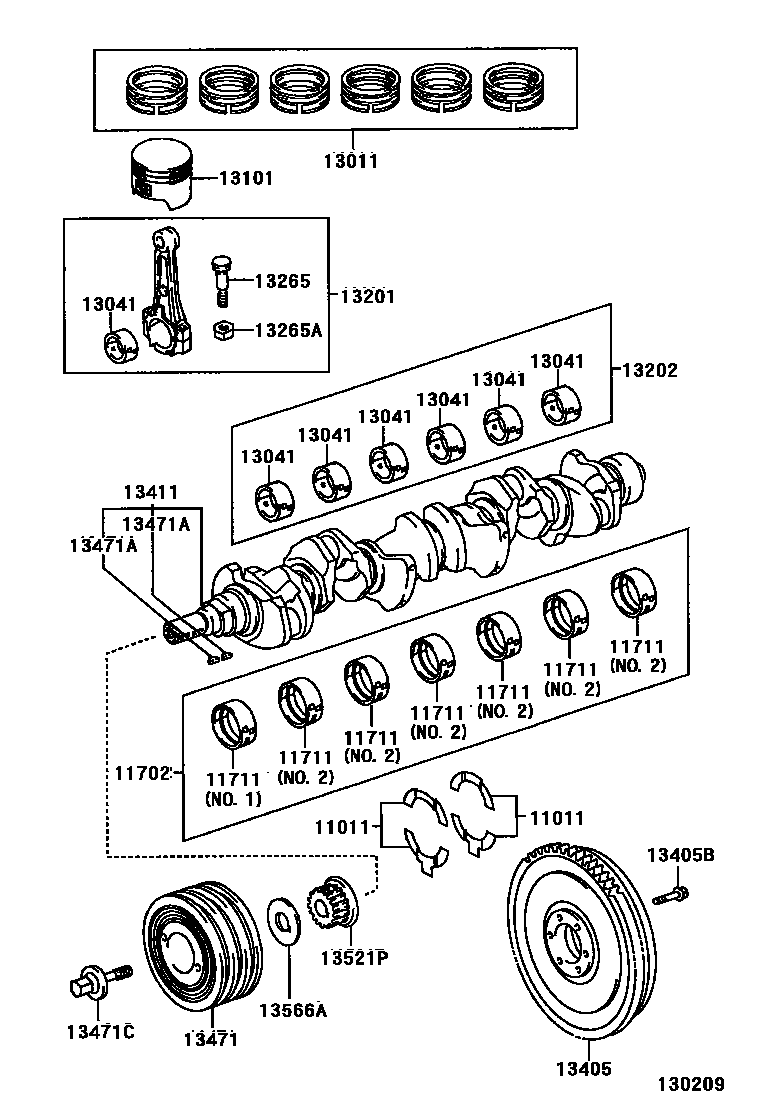

CRANKSHAFT & PISTON
11011WASHER SET, CRANKSHAFT THRUST
STD
STD
11702BEARING SET, CRANKSHAFT
U/S 0.25
U/S 0.25
11711BEARING, CRANKSHAFT
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
MARK 5,NO.1,REFER R/M
MARK 1,NO.1:REFER TO REPAIR MANUAL,MARK 1
MARK 2,NO.1:REFER TO REPAIR MANUAL,MARK 2
MARK 3,NO.1:REFER TO REPAIR MANUAL,MARK 3
MARK 4,NO.1:REFER TO REPAIR MANUAL,MARK 4
MARK 5,NO.1:REFER TO REPAIR MANUAL,MARK 5
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 5,NO.2,REFER R/M
MARK 1,NO.2:REFER TO REPAIR MANUAL,MARK 1
MARK 2,NO.2:REFER TO REPAIR MANUAL,MARK 2
MARK 3,NO.2:REFER TO REPAIR MANUAL,MARK 3
MARK 4,NO.2:REFER TO REPAIR MANUAL,MARK 4
MARK 5,NO.2:REFER TO REPAIR MANUAL,MARK 5
13011RING SET, PISTON
STD
STD
O/S 0.50
13041BEARING, CONNECTING ROD
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
MARK 4,REFER REPAIR MANUAL
MARK 5,REFER REPAIR MANUAL
MARK 3:REFER TO REPAIR MANUAL,MARK 3
MARK 4:REFER TO REPAIR MANUAL,MARK 4
MARK 5:REFER TO REPAIR MANUAL,MARK 5
13101PISTON SUB-ASSY, W/PIN
STD
STD
O/S 0.50
13201ROD SUB-ASSY, CONNECTING
13202BEARING SET, CONNECTING ROD
U/S 0.25
U/S 0.25
U/S 0.25
13265BOLT, CONNECTING ROD
13265ANUT, HEXAGON(FOR CONNECTING ROD BOLT)
13405FLYWHEEL SUB-ASSY
13405BBOLT, FLYWHEEL SETTING
13411CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521PPULLEY, CRANKSHAFT TIMING
13566AGUIDE, TIMING BELT
18 parts on this diagram · 2 diagrams in section
