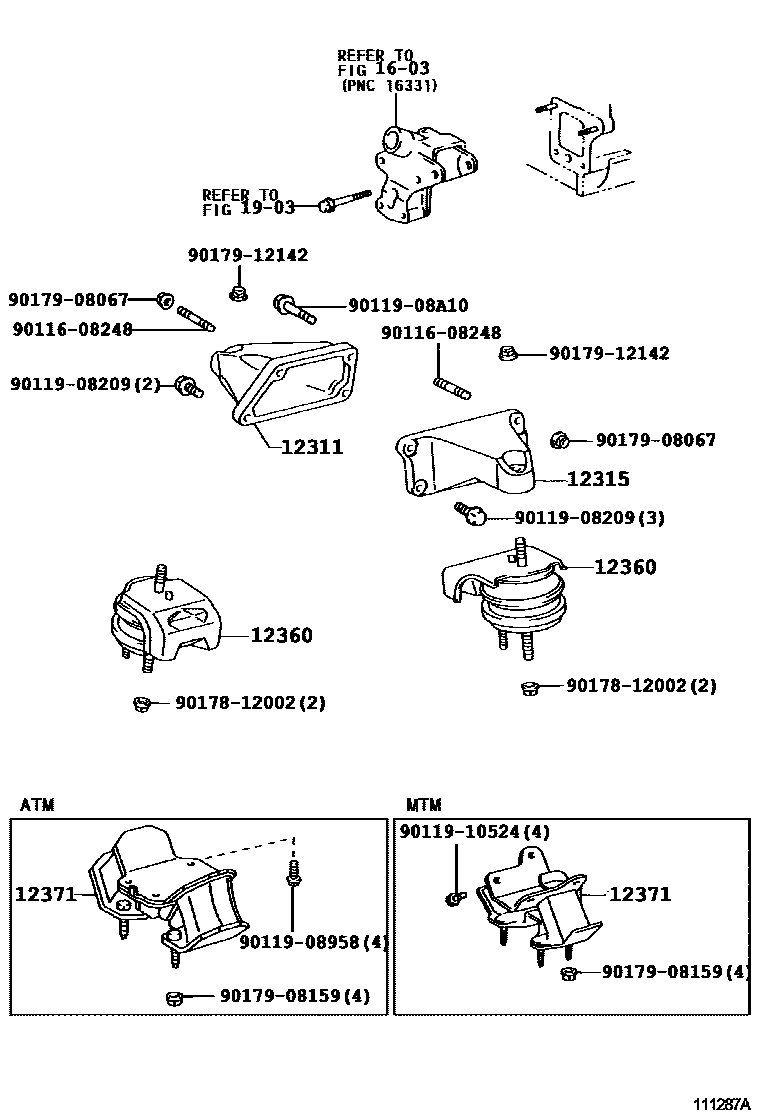

MOUNTING

0001 1 0002 1

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-46140i2JZGE..JCE10200107

main12311-70150i1GFE..GXE10199901-200107

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-46120i2JZGE..JCE10200107

main12315-70130i1GFE..GXE10199901-200107

12360INSULATOR ASSY, ENGINE MOUNTING, FRONT

main12360-70040×2i1GFE..GXE10199901-200107

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-46050i1GFE..GXE10..ATM200107

main12371-46160i2JZGE..JCE10200107

main12371-70090i1GFE..GXE10..MTM199901-200107

1603

1903

9011608248

main90116-08248

9011908209

main90119-08209

9011908958

main90119-08958

9011908A10

main90119-08A10

9011910524

main90119-10524

9017812002

main90178-12002

9017908067

main90179-08067

9017908159

main90179-08159

9017912142

main90179-12142

15 parts on this diagram · 2 diagrams in section
