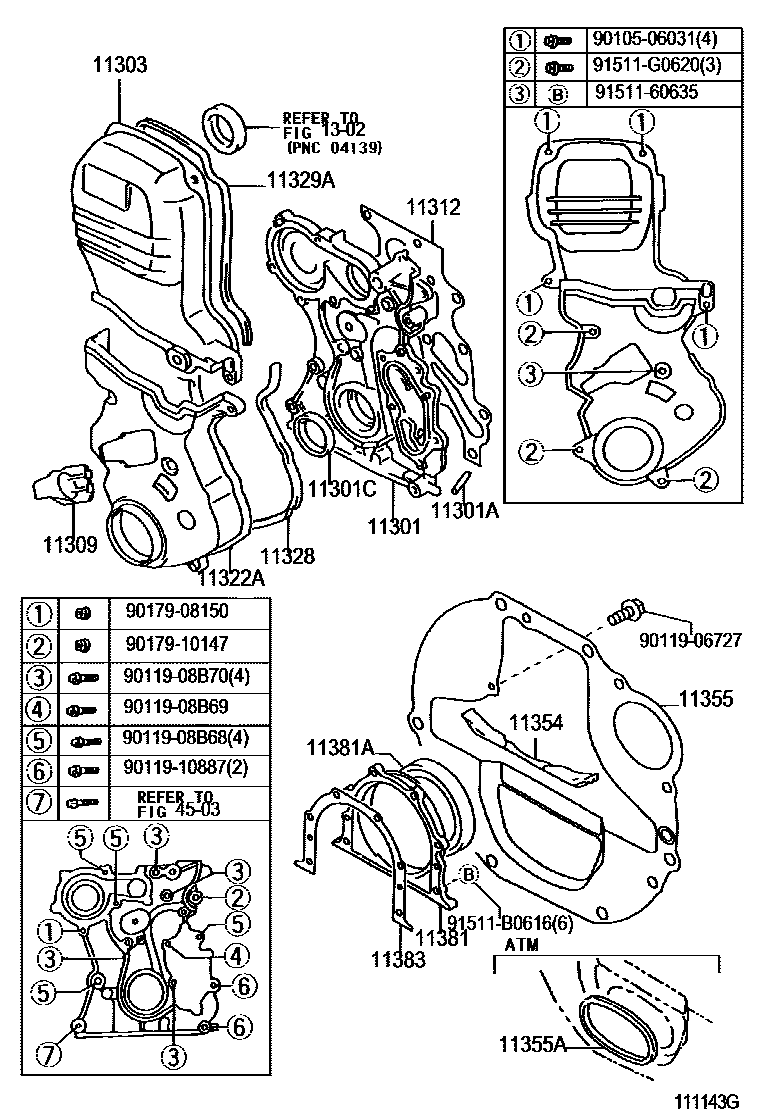

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301CASE SUB-ASSY, TIMING GEAR

main11311-70060i1GFE..GXE10199901-200207

sub11311-70061

main11311-70061i1GFE..GXE10200207-200407

sub11311-70062

main11311-70062i1GFE..GXE10200407-200507

11301APIN, STRAIGHT(FOR TIMING GEAR CASE)

main90250-06058i1GFE..GXE10199901-200107

L=38,OD=5.93-6.0

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-45015i1GFE..GXE10199901-200107

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-70030i1GFE..GXE10199901-200107

11309COVER SUB-ASSY, TIMING BELT, NO.4

main11325-70020i1GFE..GXE10199901-200107

11312GASKET, FRONT END PLATE

main11312-70020i1GFE..GXE10199901-200107

11322ACOVER, TIMING BELT, NO.1

main11302-46031i2JZGE..JCE10200107

main11302-70030i1GFE..GXE10199901-200107

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-70050i1GFE..GXE10199901-200107

11329AGASKET, TIMING BELT OR CHAIN COVER, NO.2

main11329-70030i1GFE..GXE10199901-200107

11354SEAL, FLYWHEEL HOUSING DUST

main11354-70010i1GFE..GXE10199901-200107

11355PLATE, REAR END

main11355-70010i1GFE..GXE10..MTM199901-200107

main11355-70020i1GFE..GXE10..ATM199901-200107

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01307i1GFE..GXE10..ATM199901-200107

11381RETAINER, ENGINE REAR OIL SEAL

main11381-46010i2JZGE..JCE10200107

main11381-70010i1GFE..GXE10199901-200107

11381ASEAL, ENGINE REAR OIL

main90311-75007i1GFE..GXE10199901-200107

main90311-90006i2JZGE..JCE10200107

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-70011i1GFE..GXE10199901-200107

1302

4503

9010506031

main90105-06031

9011906727

main90119-06727

9011908B68

main90119-08B68

9011908B69

main90119-08B69

9011908B70

main90119-08B70

9011910887

main90119-10887

9017908150

main90179-08150

9017910147

main90179-10147

9151160635

main91511-60635

91511B0616

main91511-B0616

91511G0620

main91511-G0620

28 parts on this diagram · 2 diagrams in section
