STANDARD TOOL

09110JACK ASSY

main09110-53010iGXE10..ARL199901-200107

main09110-53011iGXE10,JCE10..ARL200107-200507

main09111-02020iGXE10,JCE10..EUR200107-200507

SINGAPORE OR HONG KONG OR THAILAND OR BRUNEI SPEC

main09111-20110iGXE10..ARL199901-200107

SINGAPORE OR HONG KONG OR THAILAND OR BRUNEI SPEC

sub09111-02020

main09111-53010iGXE10..LHD..ATM200411-200507

CHINA SPEC

09113HANDLE, JACK

main09113-13040iGXE10199901-200107

main09113-22020iGXE10,JCE10200107

09120BAG, TOOL

main09120-28040iGXE10,JCE10200107

09130PLIERS

main09130-50030iGXE10,JCE10199901-200107

09135DRIVER, SCREW

main09135-50040iGXE10199901-200107

09141SPANNER

main09141-50050iGXE10,JCE10199901-200107

8 X 10

main09141-50060iGXE10199901-200107

12 X 14

09150WRENCH, HUB NUT BOX

main09150-50010iGXE10199901-200107

sub09150-53010

09184STOPPER, WHEEL

main09184-00010iGXE10199901-200107

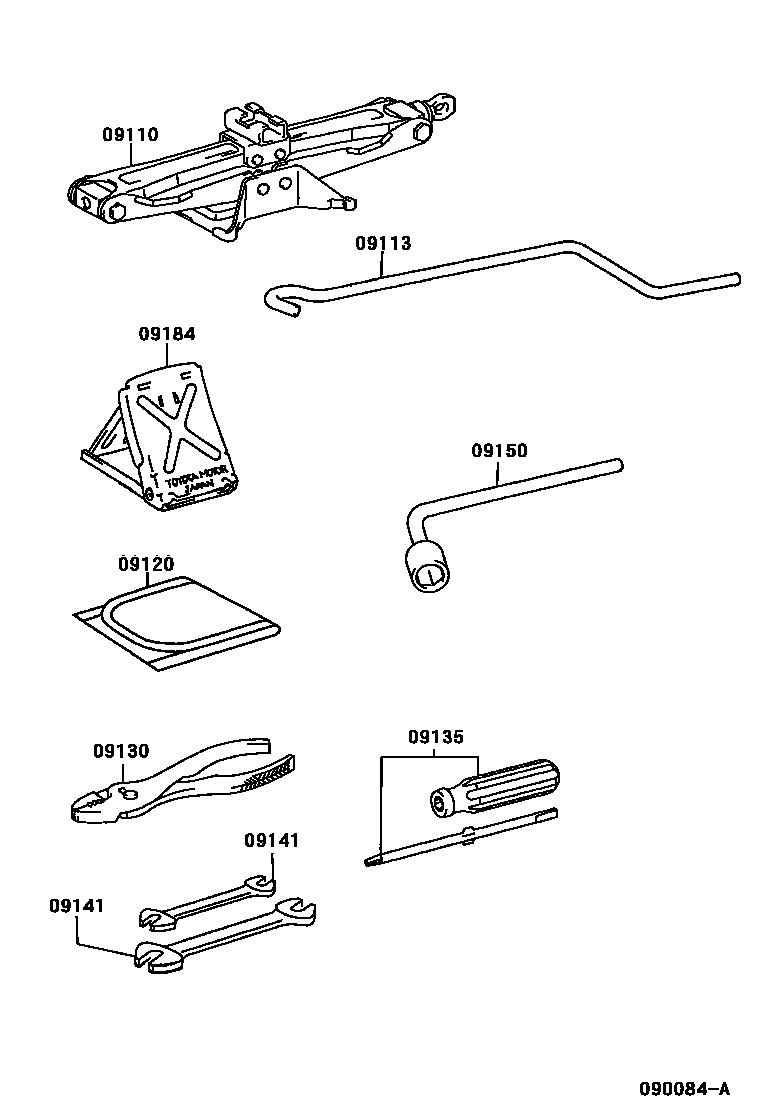

8 parts on this diagram · 1 diagram in section
