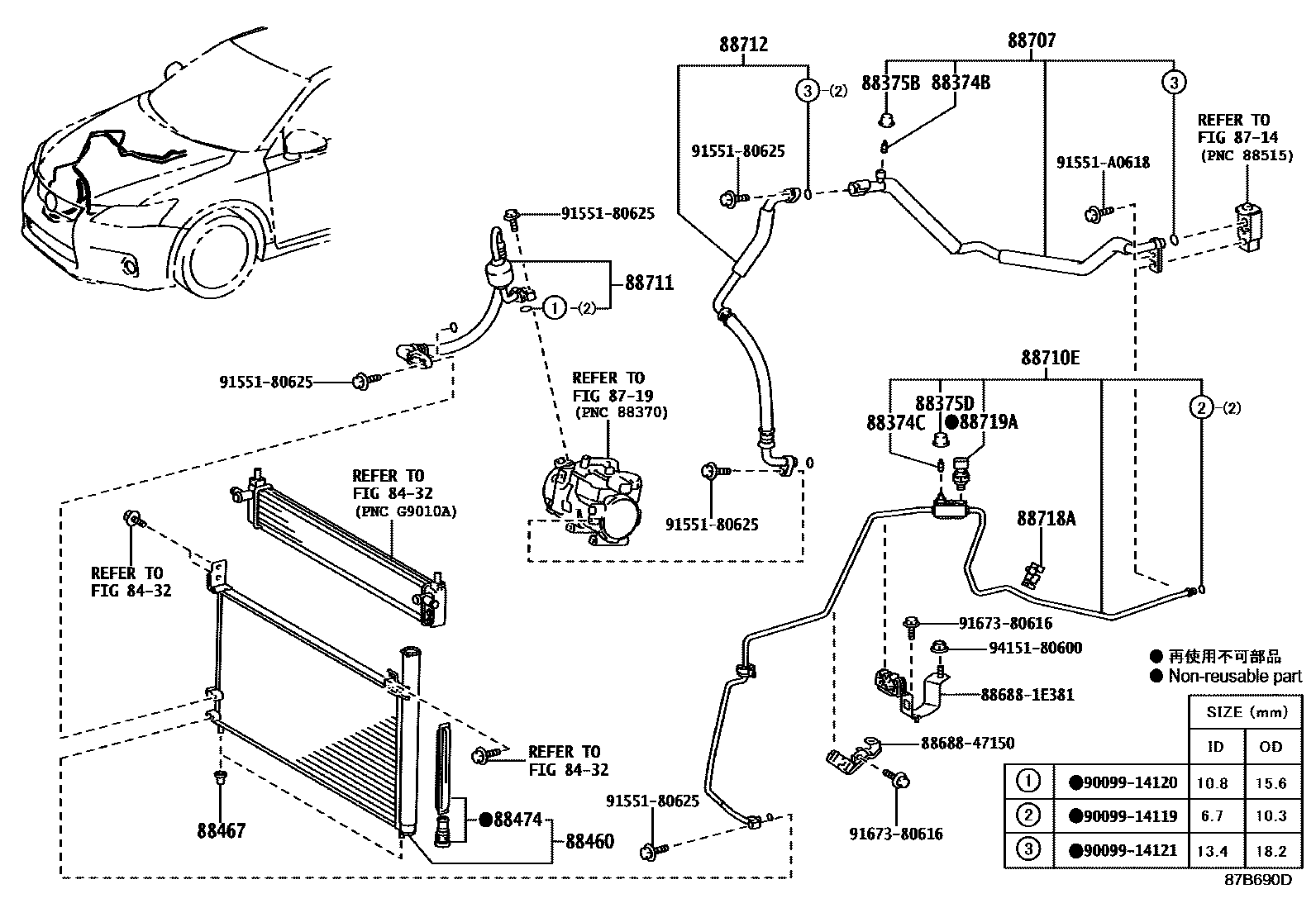

HEATING & AIR CONDITIONING - COOLER PIPING

8432

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iZWA10201012-202009

88374CVALVE, SERVICE, NO.2

main88374-30010iZWA10201012-202009

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iZWA10201012-201606

main88375-30310iZWA10201606-202009

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iZWA10201012-201606

main88375-30320iZWA10201606-202009

88460CONDENSER ASSY, COOLER

main88460-47150iZWA10¥63,400201012-201108

main88460-76010iZWA10¥50,400201108-201708

main88460-76020iZWA10¥31,900201708-202009

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010iZWA10¥220201012-202009

88474DRYER, COOLER

main88474-47030iZWA10201012-202009

88707PIPE SUB-ASSY, SUCTION

main88707-47041iZWA10¥9,500201012-201606

main88707-47070iZWA10201606-202009

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-76020iZWA10¥21,200201012-201606

main88710-76030iZWA10201606-202009

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-47040iZWA10¥8,700201012-202009

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-76010iZWA10¥9,000201012-201606

main88712-76030iZWA10201606-202009

88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)

main88718-1E040iZWA10201012-201606

main88718-42080iZWA10201606-202009

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZWA10¥0201012-202009

886881E381BRACKET, COOLER DIAPHRAGM

main88688-1E381

8868847150BRACKET, COOLER DIAPHRAGM

main88688-47150

9009914119

main90099-14119

9009914120

main90099-14120¥0

9009914121

main90099-14121

9155180625

main91551-80625¥60

91551A0618

main91551-A0618¥60

9167380616

main91673-80616¥60

9415180600

main94151-80600¥60

25 parts on this diagram · 1 diagram in section
