HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1HEATER CONTROL 0002 1AIR DUCT 0003 1AIR DUCT 0004 1SENSOR 0005 1SENSOR

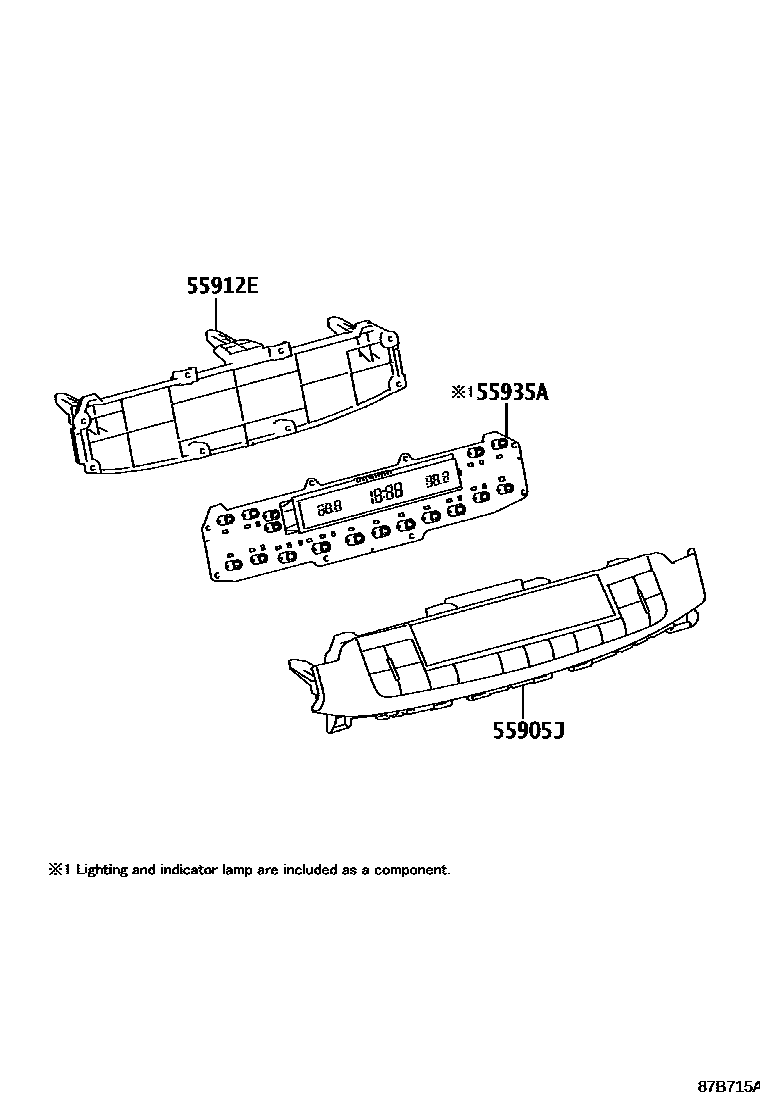

55905JKNOB SUB-ASSY, CONTROL

main55905-76030iZWA10..RHD201012-201312

main55905-76050iZWA10..LHD¥32,700201012-201312

main55905-76110iZWA10..RHD201312-202007

main55905-76130iZWA10..LHD¥22,600201312-202009

55912EBASE, HEATER CONTROL, LOWER

main55912-76010iZWA10..RHD¥2,020201012-202007

main55912-76020iZWA10..LHD¥2,020201012-202009

55935ACIRCUIT, CENTER CLUSTER MODULE

main55935-76030iZWA10..RHD201012-201312

main55935-76050iZWA10..LHD¥60,300201012-201312

main55935-76110iZWA10..RHD201312-202007

main55935-76130iZWA10..LHD¥36,800201312-202009

3 parts on this diagram · 5 diagrams in section
