ANTENNA

82667AHOLDER, CONNECTOR

main82666-76120i201012-202009

8504

86101CORD SUB-ASSY, ANTENNA

main86101-76020i201012-201112

AUDIO-AM/FM CD 6SPEAKER

sub86101-76021

main86101-76020i201012-201112

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

sub86101-76021

main86101-76021i201201-201312

AUDIO-AM/FM CD 6SPEAKER

main86101-76021i201201-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main86101-76021i201312-202007

AUDIO-AM/FM & CD & 6SPEAKER

main86101-76021i201312-202007

AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86101-76021i201312-202007

AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&6SPEAKER

main86101-76040i201012-201112

AUDIO-AM/FM CD 6SPEAKER

sub86101-76041

main86101-76040i201012-201112

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

sub86101-76041

main86101-76041i201312-202009

AUDIO-AM/FM & CD & 6SPEAKER

main86101-76041i201312-202009

AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86101-76041i201312-202009

AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&6SPEAKER

main86101-76041i201201-201312

AUDIO-AM/FM CD 6SPEAKER

86101DCORD SUB-ASSY, ANTENNA, NO.3

main86101-76120i201012-201111

AUDIO-AM/FM CD 6SPEAKER

sub86101-76121

main86101-76120i201012-201111

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

sub86101-76121

main86101-76121i201112-201312

AUDIO-AM/FM CD 6SPEAKER

main86101-76520i201312-202009

AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&6SPEAKER

main86101-76520i201312-202009

AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&6SPEAKER&SATELLITE RADIO-WITH(DAB)

main86101-76520i201312-202009

AUDIO-AM/FM & DVD & EMV & 10SPEAKER&SATELLITE RADIO-WITH(DAB)

main86101-76520i201312-202009

AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86101-76520i201312-202009

AUDIO-AM/FM & CD & 6SPEAKER

86101JCORD SUB-ASSY, ANTENNA, NO.2

main86101-76100i201012-201106

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

sub86101-76101

main86101-76100i201012-201106

AUDIO-AM/FM CD 6SPEAKER

sub86101-76101

main86101-76101i201312-202009

AUDIO-AM/FM & CD & 6SPEAKER

main86101-76101i201107-201312

AUDIO-AM/FM CD 6SPEAKER

main86101-76101i201312-202009

AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86101-76101i201312-202009

AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&6SPEAKER

86101QCORD SUB-ASSY, ANTENNA, NO.4

main86101-76250i201012-201109

ANTI-THEFT SYSTEM-*IM,SIREN,*IS,*INC,*GBS,HOOD COURTESY SW&AUDIO-AM/FM CD 6SPEAKER

sub86101-76251

main86101-76250i201012-201109

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

sub86101-76251

main86101-76250i201012-201109

ANTI-THEFT SYSTEM-*IM,SIREN,*IS,*INC,*GBS,HOOD COURTESY SW&AUDIO-AM/FM CD-CHANGER10SPEAKER WITH(*NS)

sub86101-76251

main86101-76250i201012-201109

AUDIO-AM/FM CD 6SPEAKER

sub86101-76251

main86101-76251i201110-201312

ANTI-THEFT SYSTEM-*IM,SIREN,*IS,*INC,*GBS,HOOD COURTESY SW&AUDIO-AM/FM CD-CHANGER10SPEAKER WITH(*NS)

main86101-76251i201110-201312

AUDIO-AM/FM CD 6SPEAKER

main86101-76251i201110-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main86101-76251i201110-201312

ANTI-THEFT SYSTEM-*IM,SIREN,*IS,*INC,*GBS,HOOD COURTESY SW&AUDIO-AM/FM CD 6SPEAKER

main86101-76530i201312-202009

AUDIO-AM/FM & CD & 6SPEAKER

main86101-76530i201312-202009

ANTI-THEFT SYSTEM-*IM & SIREN & *HCS & *INC & *GBS&AUDIO-AM/FM & CD & 6SPEAKER

main86101-76530i201312-202009

ANTI-THEFT SYSTEM-*IM & SIREN & *HCS & *INC & *GBS&AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86101-76530i201312-202009

ANTI-THEFT SYSTEM-*IM & SIREN & *HCS & *INC & *GBS&AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&6SPEAKER

main86101-76530i201312-202009

AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86101-76530i201312-202009

AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&6SPEAKER

86101TCORD SUB-ASSY, ANTENNA

86203VWIRE SUB ASSY, RADIO

86300CANTENNA ASSY, AMPLIFIER, NO.2

main86300-76010i201012-201208

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main86300-76010i201012-201208

AUDIO-AM/FM CD 6SPEAKER

main86300-76010i201012-201208

REAR WINDOW WIPER-WITH&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main86300-76010i201012-201208

REAR WINDOW WIPER-WITH&AUDIO-AM/FM CD 6SPEAKER

main86300-76010i201012-201208

ANTI-THEFT SYSTEM-*IM,SIREN,*IS,*INC,*GBS,HOOD COURTESY SW&AUDIO-AM/FM CD-CHANGER10SPEAKER WITH(*NS)

main86300-76010i201012-201208

ANTI-THEFT SYSTEM-*IM,SIREN,*IS,*INC,*GBS,HOOD COURTESY SW&AUDIO-AM/FM CD 6SPEAKER

main86300-76010i201012-201208

ANTI-THEFT SYSTEM-*IM,SIREN,*IS,*INC,*GBS,HOOD COURTESY SW&REAR WINDOW WIPER-WITH&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main86300-76010i201012-201208

ANTI-THEFT SYSTEM-*IM,SIREN,*IS,*INC,*GBS,HOOD COURTESY SW&REAR WINDOW WIPER-WITH&AUDIO-AM/FM CD 6SPEAKER

main86300-76070i201312-202009

ANTI-THEFT SYSTEM-*IM & SIREN & *HCS & *INC & *GBS&AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86300-76070i201312-202009

ANTI-THEFT SYSTEM-*IM & SIREN & *HCS & *INC & *GBS&AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&6SPEAKER

main86300-76070i201312-202009

REAR WINDOW WIPER-WITH&AUDIO-AM/FM & CD & 6SPEAKER

main86300-76070i201312-202009

REAR WINDOW WIPER-WITH&AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86300-76070i201312-202009

REAR WINDOW WIPER-WITH&AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&6SPEAKER

main86300-76070i201312-202009

AUDIO-AM/FM & CD & 6SPEAKER

main86300-76070i201312-202009

AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86300-76070i201312-202009

AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&6SPEAKER

main86300-76070i201312-202009

ANTI-THEFT SYSTEM-*IM & SIREN & *HCS & *INC & *GBS&REAR WINDOW WIPER-WITH&AUDIO-AM/FM & CD & 6SPEAKER

main86300-76070i201312-202009

ANTI-THEFT SYSTEM-*IM & SIREN & *HCS & *INC & *GBS&REAR WINDOW WIPER-WITH&AUDIO-AM/FM & DVD & EMV & 10SPEAKER

main86300-76070i201312-202009

ANTI-THEFT SYSTEM-*IM & SIREN & *HCS & *INC & *GBS&REAR WINDOW WIPER-WITH&AUDIO-AM/FM&CD&*DA(W/GPS ANTENNA)&6SPEAKER

main86300-76070i201312-202009

ANTI-THEFT SYSTEM-*IM & SIREN & *HCS & *INC & *GBS&AUDIO-AM/FM & CD & 6SPEAKER

main86300-76070i201208-201312

REAR WINDOW WIPER-WITH&AUDIO-AM/FM CD 6SPEAKER

main86300-76070i201208-201312

ANTI-THEFT SYSTEM-*IM,SIREN,*IS,*INC,*GBS,HOOD COURTESY SW&REAR WINDOW WIPER-WITH&AUDIO-AM/FM CD 6SPEAKER

main86300-76070i201208-201312

ANTI-THEFT SYSTEM-*IM,SIREN,*IS,*INC,*GBS,HOOD COURTESY SW&REAR WINDOW WIPER-WITH&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main86300-76070i201208-201312

ANTI-THEFT SYSTEM-*IM,SIREN,*IS,*INC,*GBS,HOOD COURTESY SW&AUDIO-AM/FM CD 6SPEAKER

main86300-76070i201208-201312

ANTI-THEFT SYSTEM-*IM,SIREN,*IS,*INC,*GBS,HOOD COURTESY SW&AUDIO-AM/FM CD-CHANGER10SPEAKER WITH(*NS)

main86300-76070i201208-201312

REAR WINDOW WIPER-WITH&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main86300-76070i201208-201312

REAR WINDOW WIPER-WITH&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&EMV & NAVIGATIONSYSTEM-WITH(HDD)

main86300-76070i201208-201312

AUDIO-AM/FM CD 6SPEAKER

main86300-76070i201208-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main86300-76070i201208-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&EMV & NAVIGATION SYSTEM-WITH(HDD)

main86300-76070i201208-201312

ANTI-THEFT SYSTEM-*IM,SIREN,*IS,*INC,*GBS,HOOD COURTESY SW&REAR WINDOW WIPER-WITH&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)&EMV & NAVIGATION SYSTEM-WITH(HDD)

main86300-76070i201208-201312

ANTI-THEFT SYSTEM-*IM,SIREN,*IS,*INC,*GBS,HOOD COURTESY SW&AUDIO-AM/FM CD-CHANGER10SPEAKER WITH(*NS)&EMV & NAVIGATION SYSTEM-WITH(HDD)

main86300-76070i201208-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS)

main86300-76070i201208-201312

ANTI-THEFT SYSTEM-*IM,SIREN,*IS,*INC,*GBS,HOOD COURTESY SW&AUDIO-AM/FM CD-CHANGER10SPEAKER WITHOUT(*NS)

main86300-76070i201208-201312

ANTI-THEFT SYSTEM-*IM,SIREN,*IS,*INC,*GBS,HOOD COURTESY SW&REAR WINDOW WIPER-WITH&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS)

main86300-76070i201208-201312

REAR WINDOW WIPER-WITH&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS)

86300JANTENNA ASSY, ROOF

main86300-76040i201012-201207

sub86300-76041

main86300-76041i201208-201312

main86760-76100i201312-202009

86309EPOLE SUB-ASSY, ROOF ANTENNA

main86309-42080i201012-201312

AUDIO-AM/FM CD 6SPEAKER

main86309-42080i201012-201312

AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)

main86309-76020i201012-201312

86396NUT, ANTENNA

main86396-47010i201012-201312

863C0ANTENNA ASSY, DIGITAL AUDIO BROADCASTING

main863C0-76020

main86300-76080

9011906915

main90119-06915

9017906274

main90179-06274

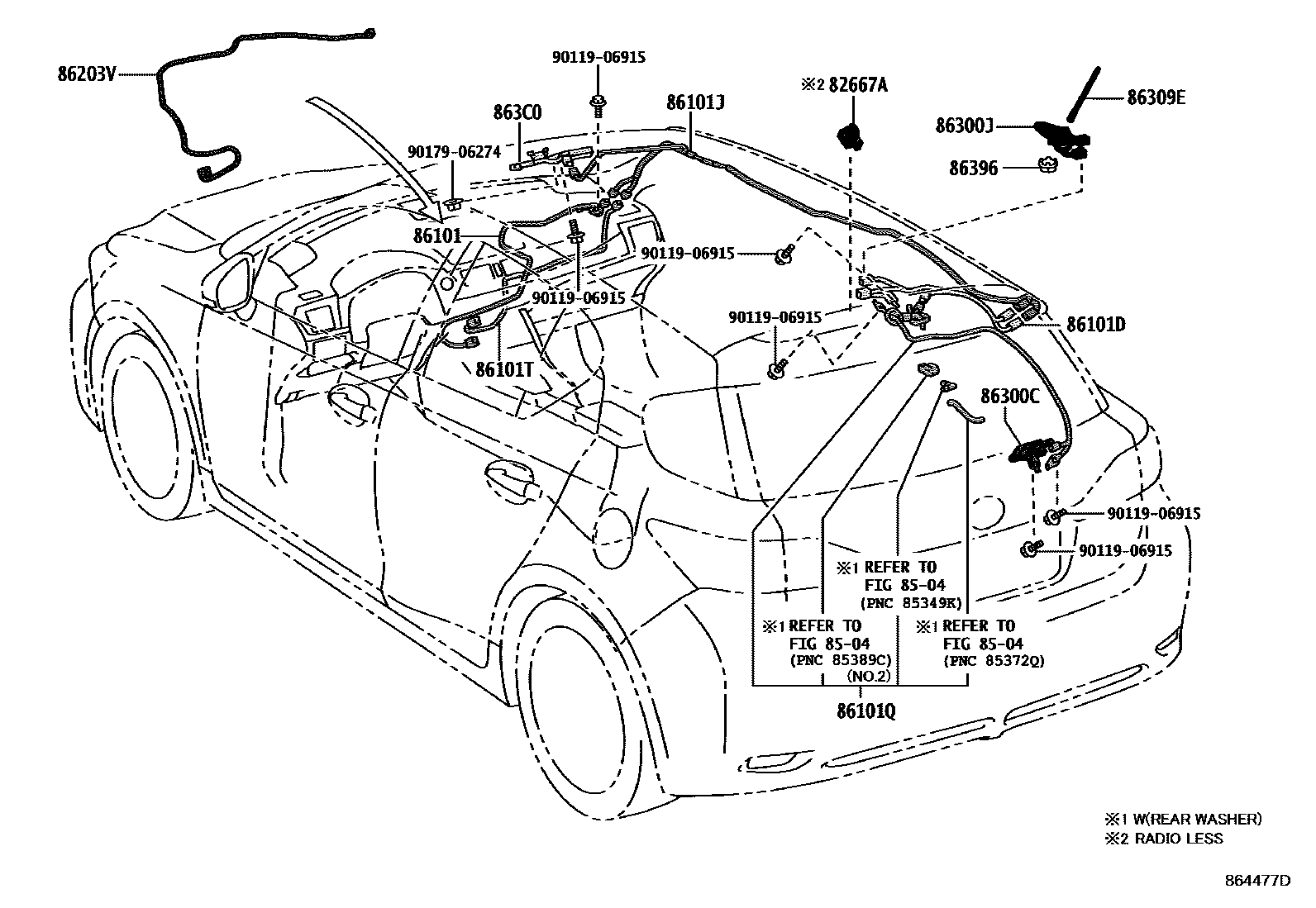

15 parts on this diagram · 3 diagrams in section
