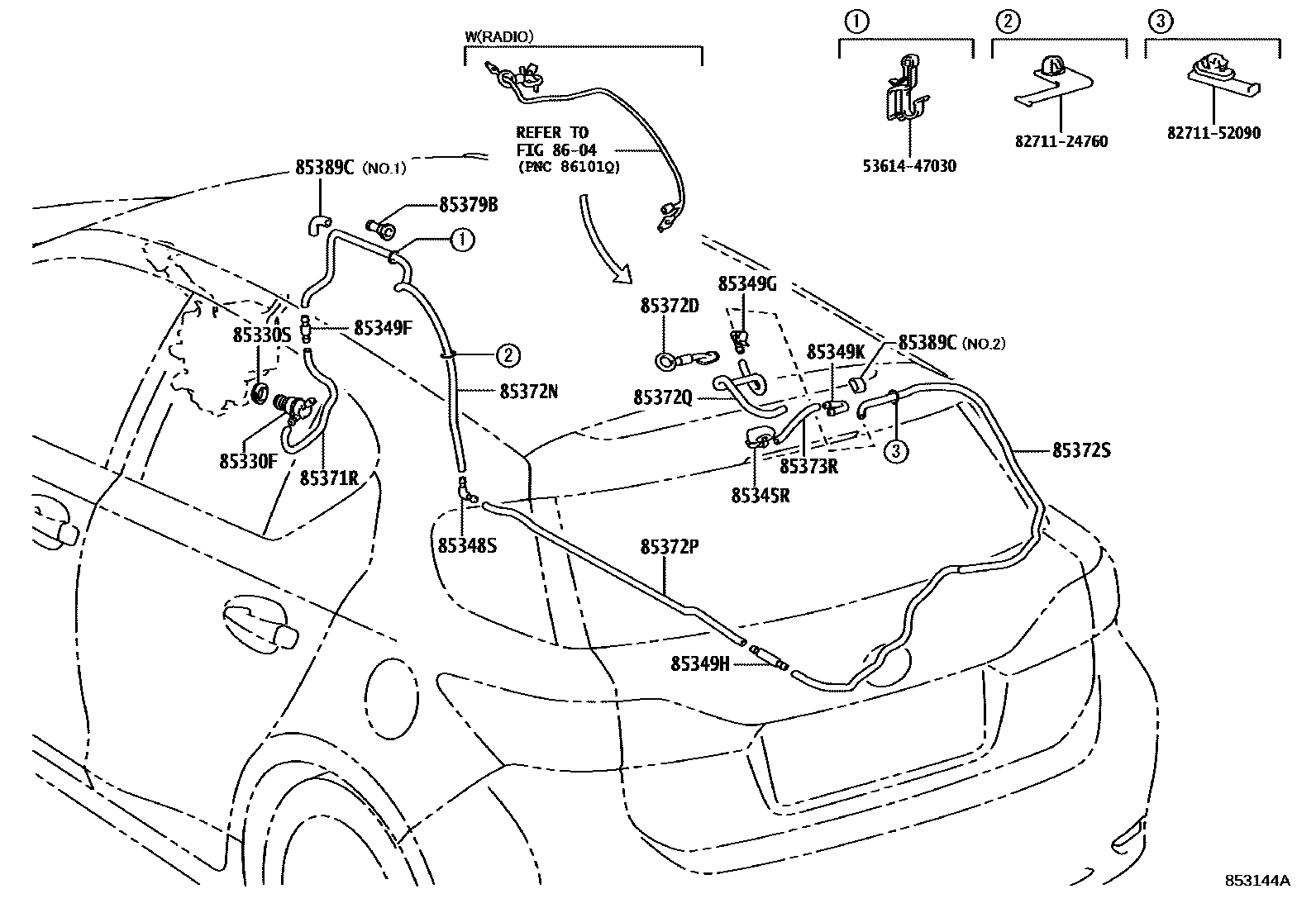

REAR WASHER

85330FMOTOR & PUMP ASSY, RR WASHER

85330SBUSH, REAR WASHER JAR

85345RNOZZLE, REAR WASHER

85348SJOINT, REAR WASHER ELBOW, NO.1

85349FJOINT, REAR WASHER HOSE, NO.1

85349GJOINT, REAR WASHER HOSE, NO.2

85349HJOINT, REAR WASHER HOSE, NO.3

85349KJOINT, REAR WASHER ELBOW, NO.2

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

85372DGROMMET, REAR WASHER HOSE

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

85379BGROMMET, WASHER, A

85389CPROTECTOR, WASHER

8604

5361447030CLAMP, HOOD LOCK CONTROL CABLE

main53614-47030¥210

8271124760WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-24760¥170

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090¥80

21 parts on this diagram · 1 diagram in section
