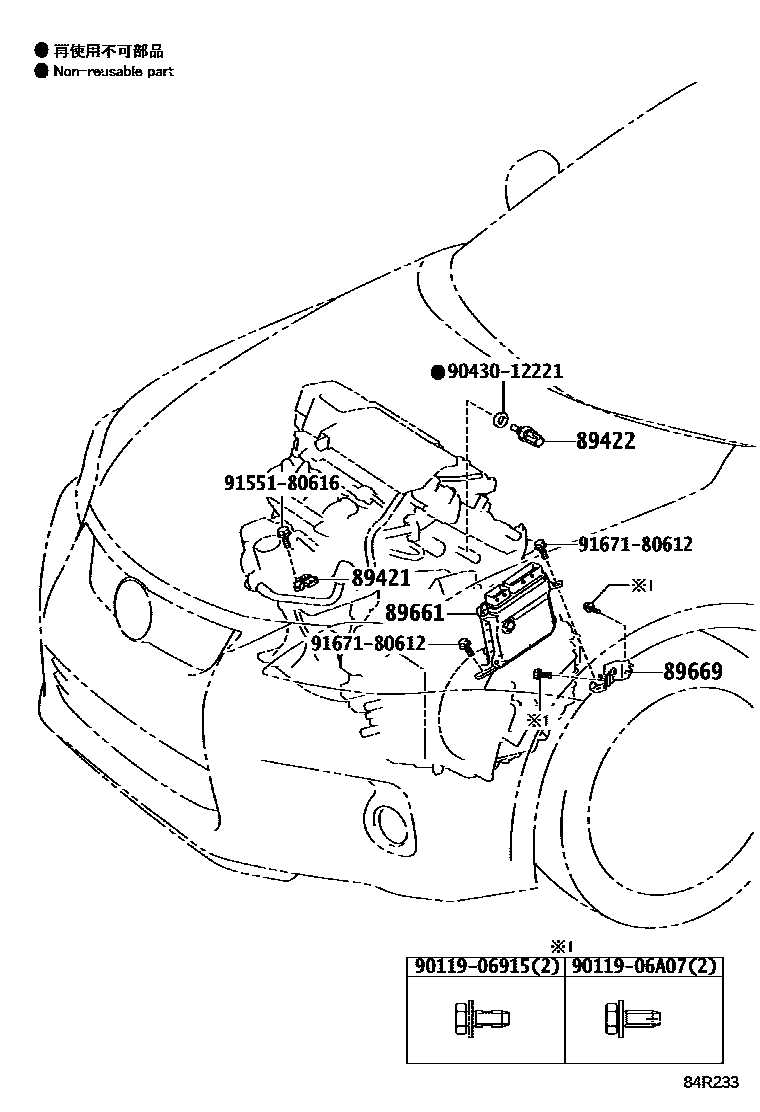

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iZWA10201012-202009

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZWA10201012-202009

89661COMPUTER, ENGINE CONTROL

main89660-76030iZWA10201012-201208

main89660-76120iZWA10201208-201312

main89660-76130iZWA10201312-201408

sub89661-76130

sub89667-47090

sub89988-75010

sub90159-50386

main89660-76190iZWA10201408-201708

sub89661-76180

sub89667-47090

sub89988-75010

sub90159-50386

main89660-76220iZWA10201708-201803

sub89661-76350

sub89667-47090

sub89988-75010

sub90159-50386

main89660-76240iZWA10201803-201809

DENSO

sub89661-76400

sub89667-47090

sub89988-75010

sub90159-50386

main89660-76260iZWA10201809-202009

DENSO

sub89661-76430

sub89667-47090

sub89988-75010

sub90159-50386

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-47070iZWA10201012-202009

9011906915

main90119-06915

9011906A07

main90119-06A07

9043012221

main90430-12221

9155180616

main91551-80616

9167180612

main91671-80612

9 parts on this diagram · 1 diagram in section
