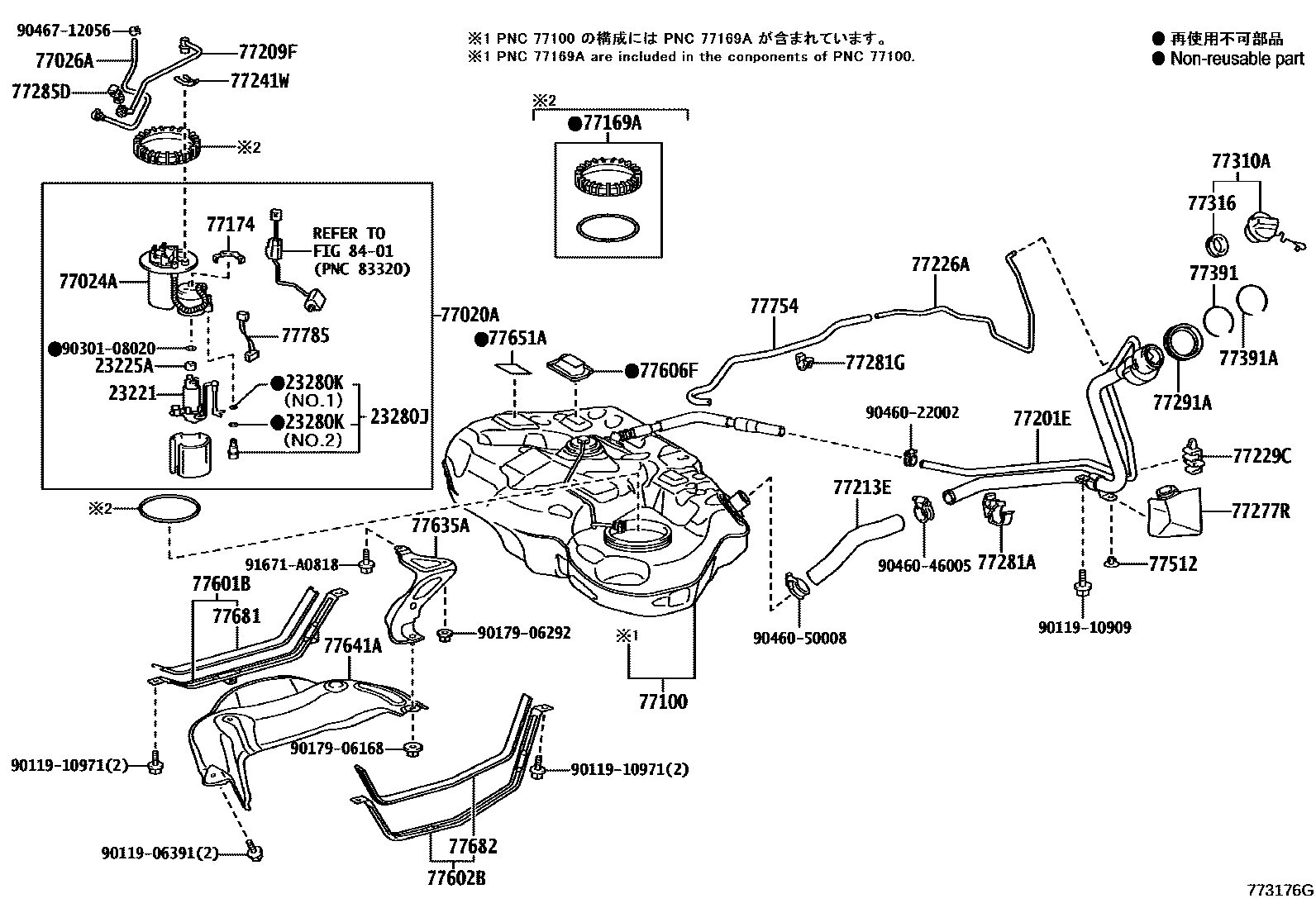

FUEL TANK & TUBE
23221PUMP, FUEL
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1
NO.2
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77026ATUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77201EPIPE SUB-ASSY, FUEL TANK FILLER
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77213EHOSE, FUEL TANK TO FILLER PIPE
77241WCLIP, TUBE JOINT
77277RPROTECTOR, FUEL TANK FILLER PIPE
77281ACLAMP, FUEL FILLER PIPE
77281GCLAMP, FUEL HOSE
77285DCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391RING, FUEL INLET BOX
77391ARING, FUEL INLET BOX
77512BRACKET, FUEL TANK, REAR
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606FCASE SUB-ASSY, FUEL TANK COVER VENT
77635ASTAY, FUEL TANK LOWER PROTECTOR, NO.1
77641APROTECTOR, FUEL TANK, NO.1
77651ACUSHION, FUEL TANK, NO.1
77681SEAT, FUEL TANK BAND, RH
77682SEAT, FUEL TANK BAND, LH
77754HOSE, CHARCOAL CANISTER OUTLET, NO.1
BEIJING SPEC
CHINA(EXCEPT BEIJING) SPEC
8401
9011906391
9011910909
9011910971
9017906168
9017906292
9030108020
9046022002
9046046005
9046050008
9046712056
91671A0818
48 parts on this diagram · 5 diagrams in section
