DECK BOARD & DECK TRIM COVER
58401HBOARD SUB-ASSY, REAR FLOOR, NO.1
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
58401JCLIP(FOR DECK BOAD)
58402FBOARD SUB-ASSY, REAR FLOOR, NO.2
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
58405CLOCK SUB-ASSY, DECK BOARD
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
58415EBOARD, REAR FLOOR, NO.1
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
58416KBOARD, REAR FLOOR, NO.2
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC,BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,8#
SPARE TIRE-TEMPORARY(T125/70D17),BLACK,TRIM0#,2#,3#,4#,8#
SPARE TIRE-TEMPORARY(T125/70D17)&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS),BLACK,TRIM0#,2#,3#,4#,8#
SPARE TIRE-TEMPORARY(T125/70D17)&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR,BLACK,TRIM0#,2#,3#,4#,8#
SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC&AUDIO-AM/FM CD-CHANGER 10SPEAKERWITH(*NS),BLACK,TRIM0#,2#,3#,4#,8#
SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC&AUDIO-AM/FM DVD-CHANGER 13SPEAKER*MAR,BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
SPARE TIRE-TEMPORARY(T125/70D17),BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
SPARE TIRE-TEMPORARY(T125/70D17)&AUDIO-AM/FM & DVD & EMV & 10SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
SPARE TIRE-TEMPORARY(T125/70D17)&AUDIO-AM/FM & DVD & EMV & 13SPEAKER,BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC,BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
58417BOARD, REAR FLOOR, NO.3
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
58418EBOARD, REAR FLOOR, NO.4
BLACK,TRIM0#,2#,3#,4#,8#
BLACK,TRIM0#,1#,2#,3#,4#,5#,8#
BLACK,TRIM0#,2#,3#,4#,5#,8#
58427CSPACER, REAR FLOOR BOARD
58443CUSHION, DECK BOARD, NO.1
SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC&AUDIO-AM/FM CD-CHANGER 10SPEAKERWITH(*NS)
SPARE TIRE-TEMPORARY(T125/70D17)&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)
AUDIO-AM/FM & DVD & EMV & 10SPEAKER
AUDIO-AM/FM & DVD & EMV & 13SPEAKER
SPARE TIRE-TEMPORARY(T125/70D17)&AUDIO-AM/FM & DVD & EMV & 10SPEAKER
SPARE TIRE-TEMPORARY(T125/70D17)&AUDIO-AM/FM & DVD & EMV & 13SPEAKER
SPARE TIRE-TEMPORARY(T125/70D17)&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR
AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR
AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)
SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC&AUDIO-AM/FM DVD-CHANGER 13SPEAKER*MAR
58478BPROTECTOR, DECK BOARD
BLACK,TRIM0#,2#,3#,4#,8#
BLACK
58792FSUPPORT, JACK CARRIER
UKRAINE SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
ISRAEL SPEC
ISRAEL SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
SOUTH AFRICA SPEC
SOUTH AFRICA SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
CHINA(EXCEPT BEIJING) SPEC
CHINA(EXCEPT BEIJING) SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
EGYPT
EGYPT&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
ARGENTINA
ARGENTINA&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
CHILE SPEC
CHILE SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
HONG KONG SPEC
HONG KONG SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
MALAYSIA SPEC
MALAYSIA SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
BRUNEI SPEC
BRUNEI SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
SINGAPORE SPEC
SINGAPORE SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
PHILIPPINES SPEC
PHILIPPINES SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
INDONESIA SPEC
INDONESIA SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
SPARE TIRE-TEMPORARY(T125/70D17)
SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
JACK-WITHOUT
JACK-WITHOUT&KAZAKHSTAN SPEC
JACK-WITHOUT&BELARUS SPEC
JACK-WITHOUT&MOROCCO SPEC
JACK-WITHOUT&ADRIA SPEC
JACK-WITHOUT&CROATIA SPEC
JACK-WITHOUT&RUSSIA SPEC
JACK-WITHOUT&TURKEY SPEC
JACK-WITHOUT&UKRAINE SPEC
JACK-WITHOUT&ISRAEL SPEC
JACK-WITHOUT&SOUTH AFRICA SPEC
JACK-WITHOUT&EGYPT
JACK-WITHOUT&SPARE TIRE-TEMPORARY(T125/70D17)
JACK-WITHOUT&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
BEIJING SPEC
BEIJING SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
THAILAND SPEC
THAILAND SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
KAZAKHSTAN SPEC
KAZAKHSTAN SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
REUNION SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
BELARUS SPEC
BELARUS SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
SERBIA SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
MOROCCO SPEC
MOROCCO SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
ADRIA SPEC
ADRIA SPEC&SPARE TIRE-TEMPORARY(T125/70D17)
NEW ZEALAND SPEC
CROATIA SPEC
CROATIA SPEC&SPARE TIRE-TEMPORARY(T125/70D17)
AUSTRALIA SPEC
RUSSIA SPEC
RUSSIA SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
TURKEY SPEC
TURKEY SPEC&SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC
TAIWAN SPEC
TAIWAN SPEC&SPARE TIRE-TEMPORARY(T125/70D17)
UKRAINE SPEC
64777JCUSHION, SPARE WHEEL
64993BOX, DECK FLOOR, REAR
64997CCLIP(FOR DECK FLOOR BOX)
SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC&AUDIO-AM/FM CD-CHANGER 10SPEAKERWITH(*NS)
AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS)
SPARE TIRE-TEMPORARY(T125/70D17)&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITHOUT(*NS)
SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC&AUDIO-AM/FM CD-CHANGER 10SPEAKERWITHOUT(*NS)
SPARE TIRE-TEMPORARY(T125/70D17)&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)
SPARE TIRE-TEMPORARY(T125/70D17)&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR
SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC&AUDIO-AM/FM DVD-CHANGER 13SPEAKER*MAR
AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS)
AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR
SPARE TIRE-TEMPORARY(T125/70D17)&AUDIO-AM/FM & DVD & EMV & 10SPEAKER
SPARE TIRE-TEMPORARY(T125/70D17)&AUDIO-AM/FM & DVD & EMV & 13SPEAKER
AUDIO-AM/FM & DVD & EMV & 10SPEAKER
AUDIO-AM/FM & DVD & EMV & 13SPEAKER
SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC&AUDIO-AM/FM DVD-CHANGER 13SPEAKER*MAR,BLACK
SPARE TIRE-TEMPORARY(T125/70D17),ROUGH ROAD SPEC&AUDIO-AM/FM CD-CHANGER 10SPEAKERWITH(*NS),BLACK
AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS),BLACK
AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR,BLACK
BLACK
SPARE TIRE-TEMPORARY(T125/70D17)&AUDIO-AM/FM CD-CHANGER 10SPEAKER WITH(*NS),BLACK
SPARE TIRE-TEMPORARY(T125/70D17)&AUDIO-AM/FM DVD-CHANGER 13SPEAKER *MAR,BLACK
9010906322
main90109-06322
9046400562
main90464-00562
9046710201
main90467-10201
9167180820
main91671-80820

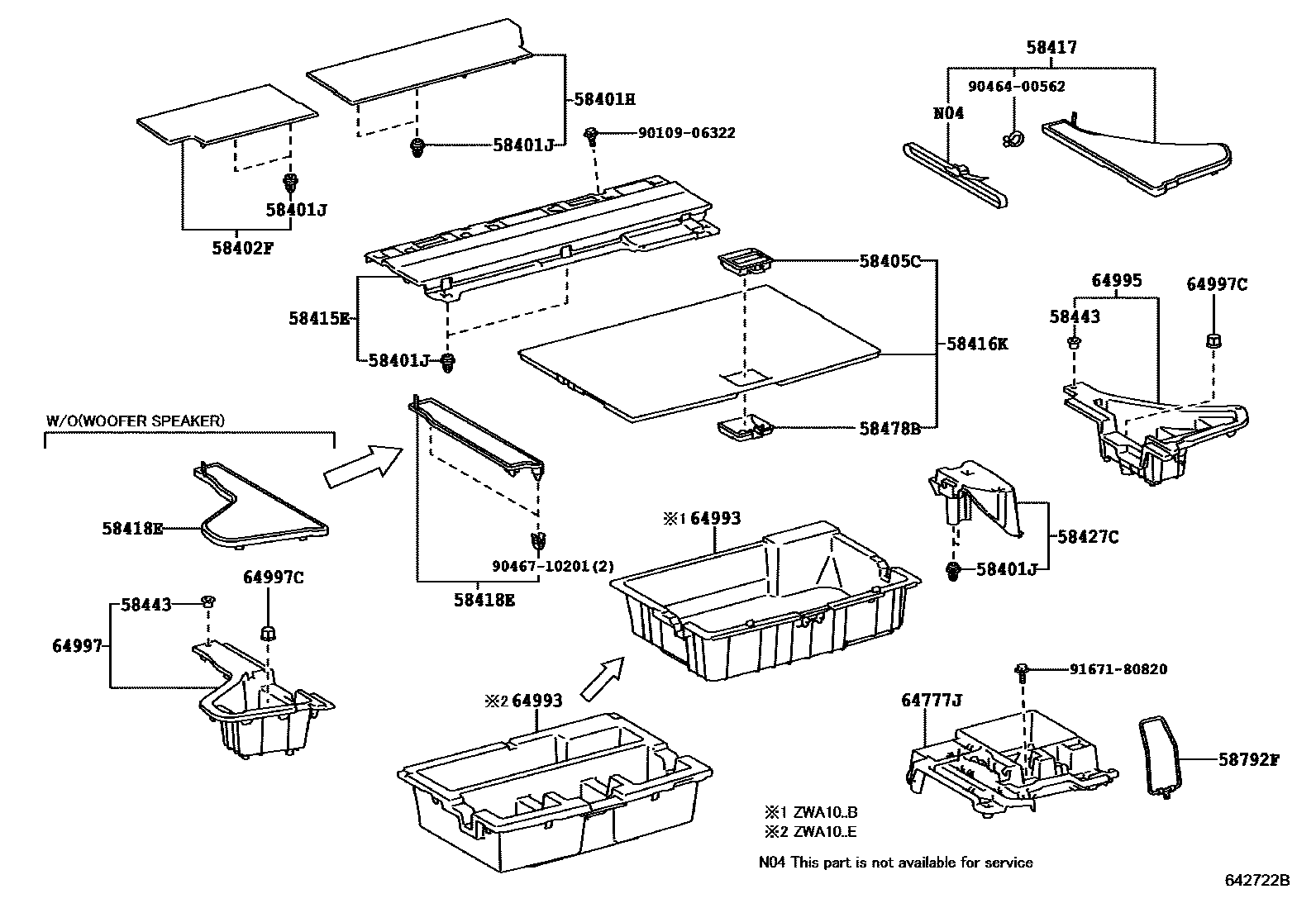

21 parts on this diagram · 3 diagrams in section
