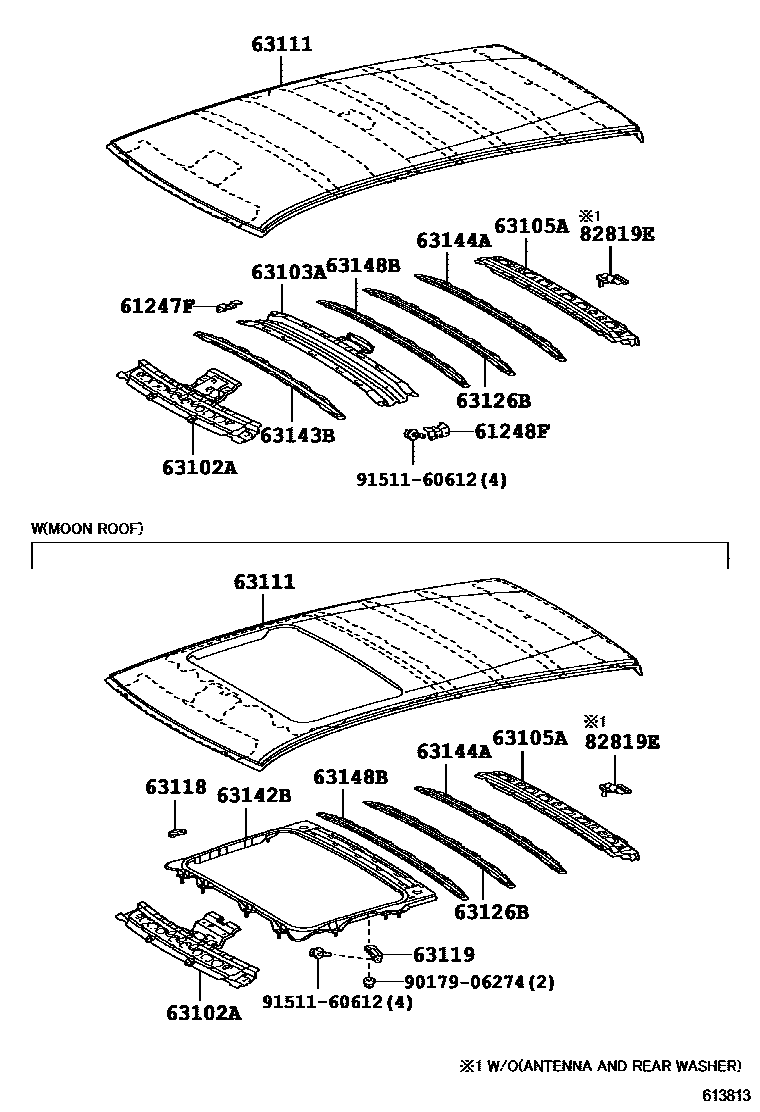

ROOF PANEL & BACK WINDOW GLASS

0001 1ROOF PANEL 0002 1MOON ROOF

61247FREINFORCEMENT, ROOF SIDE RAIL, INNER

main61247-76010iZWA10201012-202009

61248FREINFORCEMENT, ROOF SIDE RAIL, INNER, LH

main61247-76010iZWA10201012-202009

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-76902iZWA10201012-202009

63103AREINFORCEMENT SUB-ASSY, ROOF PANEL

main63103-76010iZWA10201012-202009

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-76010iZWA10201012-202009

63111PANEL, ROOF

main63111-76010iZWA10201012-201312

main63111-76011iZWA10201312-202009

63118SUPPORT, ROOF PANEL, RH

main63118-76010

63119SUPPORT, ROOF PANEL, LH

main63118-76010

63126BREINFORCEMENT, ROOF PANEL, REAR NO.2

main63126-76010iZWA10201012-202009

63142BREINFORCEMENT, ROOF PANEL, REAR

63143BREINFORCEMENT, ROOF PANEL, NO.3

main63143-76010iZWA10201012-202009

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-76010iZWA10201012-202009

63148BREINFORCEMENT, ROOF PANEL SIDE

main63148-76010iZWA10201012-202009

82819EGROMMET, WIRING HARNESS

main82819-76080iZWA10..E201012-202009

9017906274

main90179-06274

9151160612

main91511-60612

16 parts on this diagram · 2 diagrams in section
