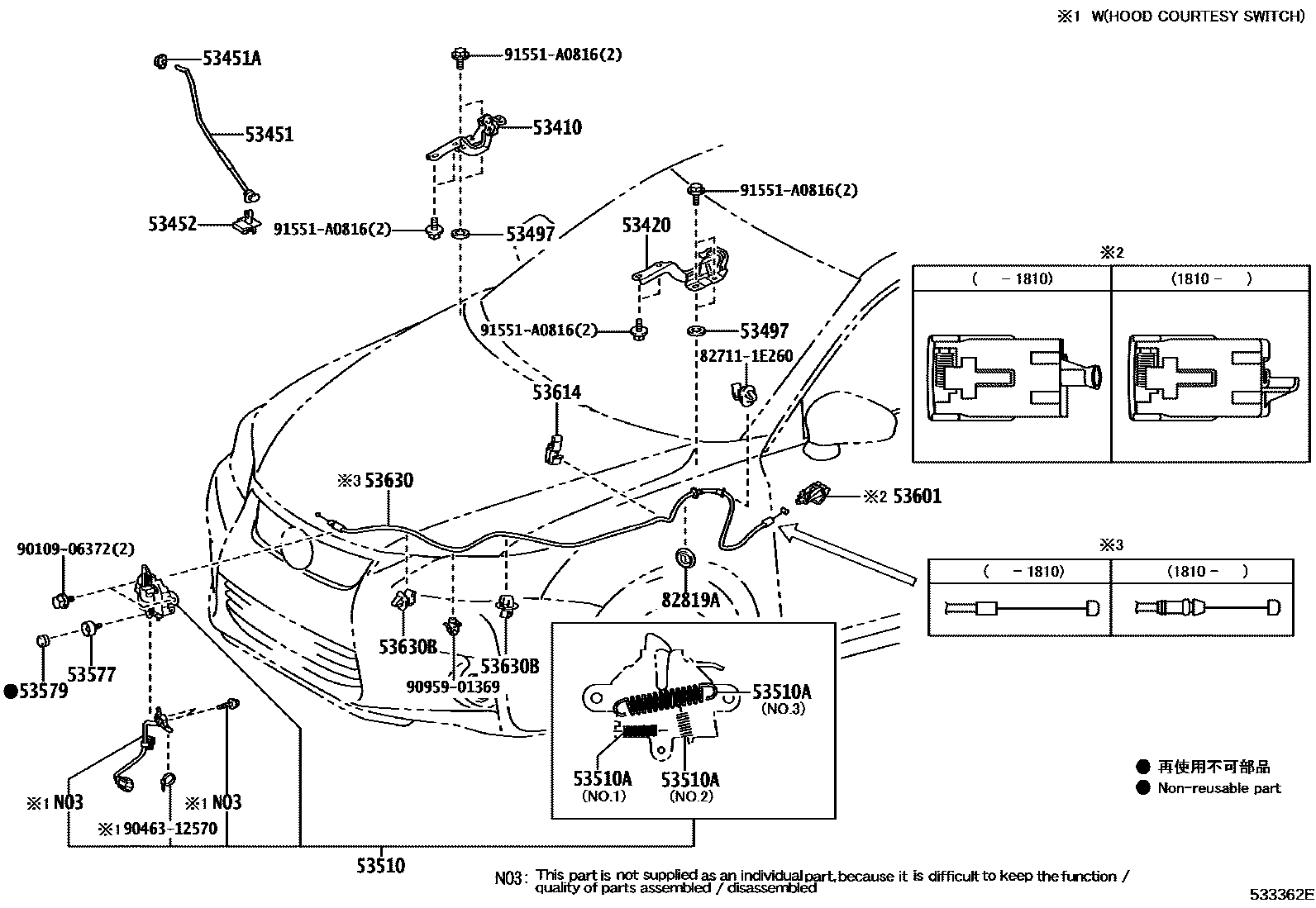

HOOD LOCK & HINGE
53410HINGE ASSY, HOOD, RH
53420HINGE ASSY, HOOD, LH
53451ROD, HOOD SUPPORT
53451AGROMMET(FOR HOOD SUPPORT ROD)
53452HOLDER, HOOD STAY
53497PAD, HOOD HINGE, NO.1
T=2.0
T=0.5
53510LOCK ASSY, HOOD
ANTI-THEFT SYSTEM-*IM & SIREN & *HCS
ANTI-THEFT SYSTEM-*IM & SIREN & *HCS & *INC & *GBS
ANTI-THEFT SYSTEM-*IM,SIREN,*IS,HOOD COURTESY SW
ANTI-THEFT SYSTEM-*IM,SIREN,*IS,*INC,*GBS,HOOD COURTESY SW
ANTI-THEFT SYSTEM-*IM & SIREN & *HCS
ANTI-THEFT SYSTEM-*IM,SIREN,*IS,HOOD COURTESY SW
ANTI-THEFT SYSTEM-*IM & SIREN & *HCS & TRACKING
ANTI-THEFT SYSTEM-*IM & SIREN & *HCS & *INC & *GBS
53510ASPRING, TENSION(FOR HOOD LOCK)
WD=0.9,CW=21,NO.1
WD=1.2,CW=8.5,NO.2
WD=1.6,CW=12,NO.3
53577BOLT, HOOD LOCK
53579CAP, HOOD LOCK NUT
53601LEVER SUB-ASSY, HOOD LOCK CONTROL
BLACK,TRIM0#,2#,3#,4#
53614CLAMP, HOOD LOCK CONTROL CABLE
53630CABLE ASSY, HOOD LOCK CONTROL
53630BCLAMP(FOR HOOD LOCK CONTROL CABLE)
827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E260
9010906372
main90109-06372
9046312570
main90463-12570
9095901369
main90959-01369
91551A0816
main91551-A0816
20 parts on this diagram · 2 diagrams in section
