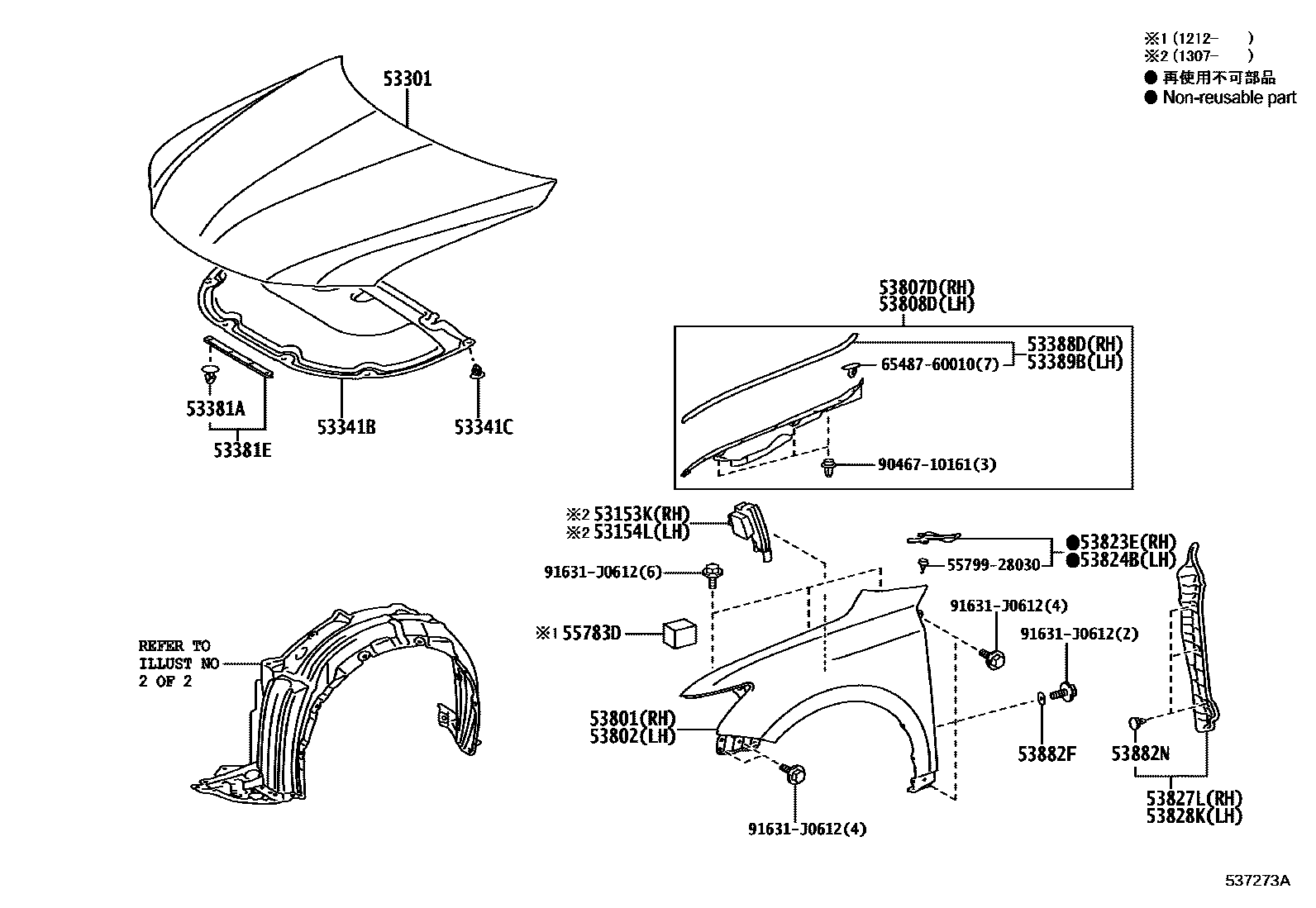

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53153KGUIDE, RADIATOR GRILLE SIDE AIR, RH

main53153-76010iZWA10201307-202009

53154LGUIDE, RADIATOR GRILLE SIDE AIR, LH

main53154-76010iZWA10201307-202009

53301HOOD SUB-ASSY

main53301-76010iZWA10201012-202009

53341BINSULATOR, HOOD

main53341-76010iZWA10201012-201312

FLOOR UNDER COVER-WITHOUT

main53341-76010iZWA10201312-202009

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iZWA10201012-201312

FLOOR UNDER COVER-WITHOUT

main90467-09050iZWA10201312-202009

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iZWA10201012-202009

53381ESEAL, HOOD TO RADIATOR SUPPORT

main53381-76010iZWA10201012-202009

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-76010iZWA10201012-202009

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-76010iZWA10201012-202009

53801FENDER SUB-ASSY, FRONT RH

main53801-76010iZWA10201012-202009

53802FENDER SUB-ASSY, FRONT LH

main53802-76010iZWA10201012-202009

53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53807-76010iZWA10201012-202009

53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53808-76010iZWA10201012-202009

53823EPROTECTOR, FRONT SIDE PANEL, NO.2 RH

main53823-76010iZWA10201012-201412

sub53823-76011

main53823-76011iZWA10201501-202009

53824BPROTECTOR, FRONT SIDE PANEL, NO.2 LH

main53824-76010iZWA10201012-201412

sub53824-76011

main53824-76011iZWA10201501-202009

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-76010iZWA10201012-202009

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-76010iZWA10201012-202009

53882FSEAL, FRONT FENDER

main53882-26010iZWA10201012-202009

53882NCLIP(FOR FRONT FENDER SEAL)

main53857-47011iZWA10201012-202009

55783DPAD, COWL TOP SILENCER

main55783-30110iZWA10201212-202009

5579928030COVER, WIPER MOTOR

main55799-28030

6548760010CLIP, CORNER PROTECTOR

main65487-60010

9046710161

main90467-10161

91631J0612

main91631-J0612

24 parts on this diagram · 2 diagrams in section
