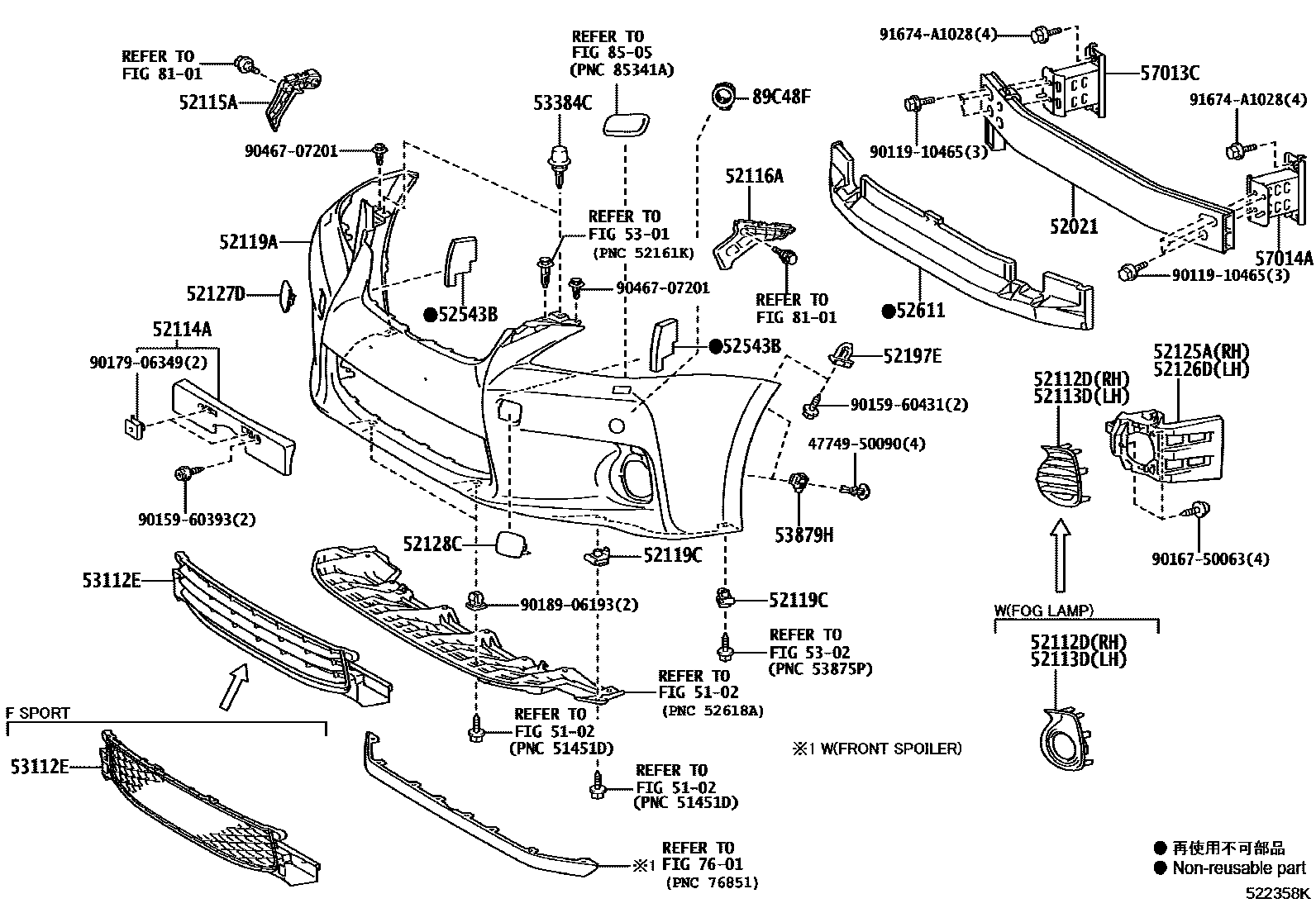

FRONT BUMPER & BUMPER STAY
5102
52021REINFORCEMENT SUB-ASSY, FRONT BUMPER
52112DEXTENSION, FRONT BUMPER, RH
NO PAINT REQ.,F SPORT&FRONT FOG & DRIVING LAMP-WITH
NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & B
FRONT FOG LAMP-WITH(BULB)
FRONT FOG LAMP-WITH(BULB) & F SPORT
FRONT FOG LAMP-WITH(LED) & THE CRAFTED LINE
NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH
52113DEXTENSION, FRONT BUMPER, LH
NO PAINT REQ.,RADIATOR GRILLE-F SPORT&FRONT FOG & DRIVING LAMP-WITH
NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & B
FRONT FOG LAMP-WITH(BULB)
FRONT FOG LAMP-WITH(BULB) & F SPORT
FRONT FOG LAMP-WITH(LED) & THE CRAFTED LINE
NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING
THE CRAFTED LINE
F SPORT
52115ASUPPORT, FRONT BUMPER SIDE, RH
52116ASUPPORT, FRONT BUMPER SIDE, LH
52119ACOVER, FRONT BUMPER
PAINT REQ.,HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE &
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SO
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH
HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH
HEADLAMP-LED
CLEARANCE & BACK SONAR-WITH
F SPORT&CLEARANCE & BACK SONAR-WITH
F SPORT
F SPORT&HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH
F SPORT&HEADLAMP-LED
HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
F SPORT&CLEARANCE & BACK SONAR-WITH
F SPORT&HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH
HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH
F SPORT&CLEARANCE & BACK SONAR-WITH
F SPORT&HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH
HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)
CLEARANCE & BACK SONAR-WITH
HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)&CLEARANCE & BACK SONAR-WITH
F SPORT
F SPORT&HEADLAMP-LED & WITH(AUTOMATIC HIGH BEAM)
F SPORT&CLEARANCE & BACK SONAR-WITH
F SPORT&HEADLAMP-LED&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG& DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG& DRIVING LAMP-WITH
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH
52119CCLIP, FRONT BUMPER COVER
52125ABRACKET, FOG LAMP MOUNTING, RH
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
52126DBRACKET, FOG LAMP MOUNTING, LH
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE)&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
52127DCOVER, FRONT BUMPER HOLE, RH
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT,LWR=AERO BUMPER&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
52128CCOVER, FRONT BUMPER HOLE, LH
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH&CLEARANCE & BACK SONAR-WITH
52197EBRACKET, FRONT BUMPER SEAL
52543BSEAL, FRONT BUMPER
52611ABSORBER, FRONT BUMPER ENERGY
5301
5302
53112EGRILLE, RADIATOR, LOWER NO.1
NO PAINT REQ.
NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&RADIATOR GRILLE-F SPORT(*MRT),LWR=AERO BUMPER(MESH TYPE)&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH
F SPORT&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)
SE PACKAGE(FOR EUR)&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)
NO PAINT REQ.,RADIATOR GRILLE-F SPORT&FRONT FOG & DRIVING LAMP-WITH
NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&HEAD LAMP-LED&FRONT FOG & DRIVING LAMP-WITH
TAIWAN SPEC&F SPORT&PRE-COLLISION SYSTEM-WITH(WITHOUT/*PB)
TAIWAN SPEC&THE CRAFTED LINE&PRE-COLLISION SYSTEM-WITH(WITHOUT/*PB)
EUROPE SE PACKAGE(LCA4)&PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWITCH)
NO PAINT REQ.,BUMPER-F SPORT,VERSION C,VERSION L ; AERO TYPE&FRONT FOG & DRIVING LAMP-WITH
53384CCUSHION, HOOD, CENTER
53879HRETAINER, FRONT FENDER LINER
57013CBRACKET SUB-ASSY, FRONT SIDE MEMBER, RH
57014ABRACKET SUB-ASSY, FRONT SIDE MEMBER, LH
7601
8101
8505
89C48FRETAINER, ULTRASONIC SENSOR, FRONT SIDE
'12 EUROPE PACKAGE,WHITE PEARL CS.,077
CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083
'12 EUROPE PACKAGE,MERCURY GRAY MC.,1H9
CLEARANCE & BACK SONAR-WITH,PLATINUM SILVER ME.,1J4
CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1
'12 EUROPE PACKAGE,BLACK,212
CLEARANCE & BACK SONAR-WITH,BLACK OPAL MC.,214
'12 EUROPE PACKAGE,STARLIGHT BLACK GF.,217
CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH,FIRE AGATE M.M.,4V3
CLEARANCE & BACK SONAR-WITH,FLARE YELLOW M.M.,5B1
CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077
CLEARANCE & BACK SONAR-WITH,SILVER M.M.,1G1
CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0
CLEARANCE & BACK SONAR-WITH,BLACK,212
CLEARANCE & BACK SONAR-WITH,BLACK OPAL MC.,214
CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH,FIRE AGATE M.M.,4V3
CLEARANCE & BACK SONAR-WITH,FLARE YELLOW M.M.,5B1
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1
CLEARANCE & BACK SONAR-WITH,SILVERY BLUE ME.,8U9
CLEARANCE & BACK SONAR-WITH
4774950090CLIP, PIN HOLD
main47749-50090
9011910465
main90119-10465
9015960393
main90159-60393
9015960431
main90159-60431
9016750063
main90167-50063
9017906349
main90179-06349
9018906193
main90189-06193
9046707201
main90467-07201
91674A1028
main91674-A1028
36 parts on this diagram · 6 diagrams in section
