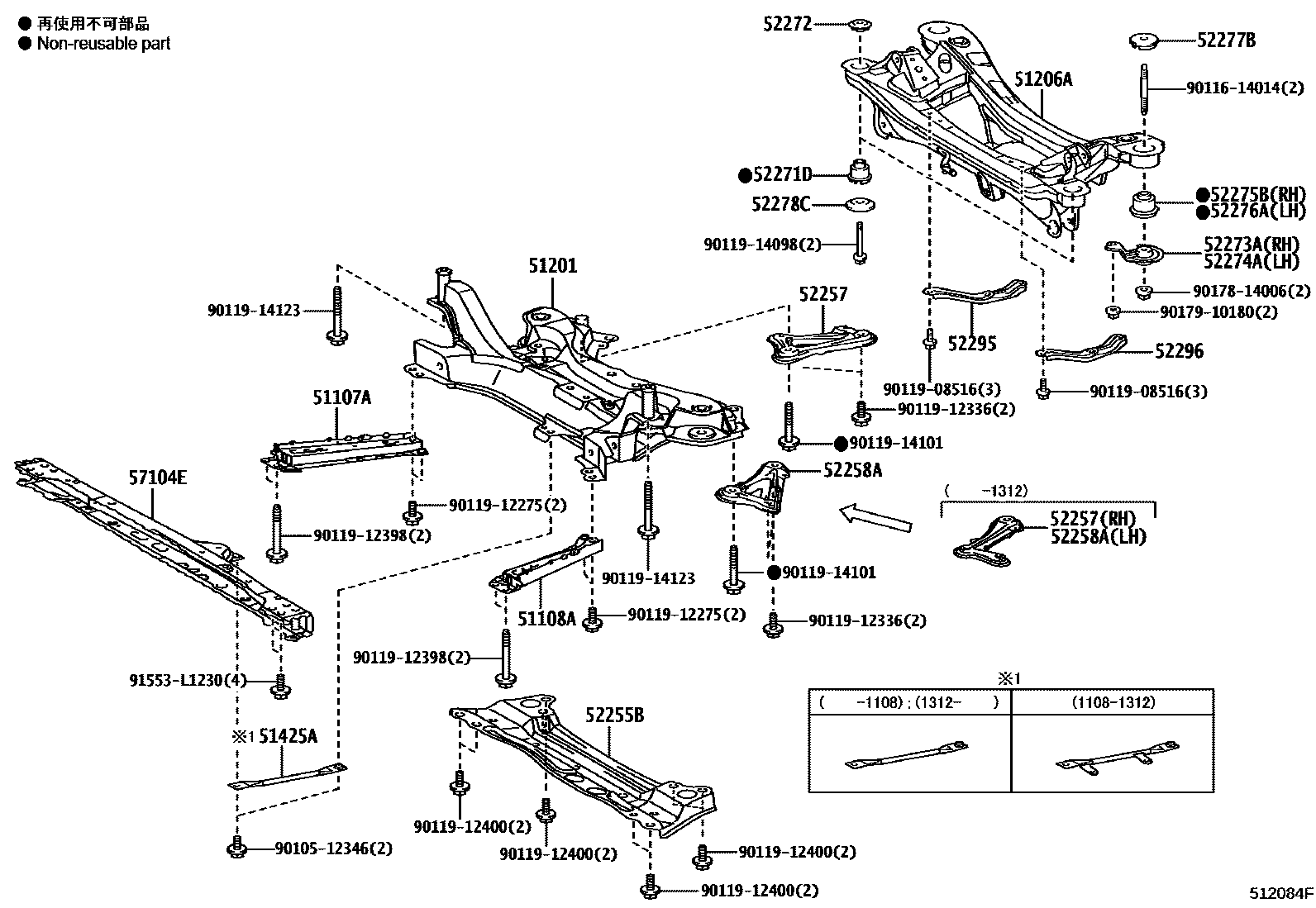

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSSMEMBER 0002 1ENGINE UNDER COVER 0003 1ENGINE UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-12010iZWA10¥4,540201012-202009

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-12010iZWA10¥4,510201012-202009

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12441iZWA10¥84,500201012-201211

sub51201-12442¥58,900

main51201-12442iZWA10¥58,900201307-201401

sub51201-78010¥58,700

main51201-78010iZWA10¥58,700201211-202009

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-75020iZWA10¥69,300201012-201409

sub51206-75022¥57,700

main51206-75021iZWA10¥48,100201409-202009

51425AREINFORCEMENT, ENGINE FRONT MOUNTING BRACKET, LOWER

main51408-47020iZWA10¥1,460201108-201312

main51425-12060iZWA10¥1,720201012-202009

52255BBRACE, FRONT SUSPENSION MEMBER

main52255-76010iZWA10¥7,400201012-202009

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-12011iZWA10¥2,560201012-201312

main52257-21040iZWA10¥2,590201312-202009

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-12011iZWA10¥2,560201012-201312

main52258-21040iZWA10¥2,590201312-202009

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-75010iZWA10¥2,570201012-202009

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-75010iZWA10¥700201012-202009

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52203-12010iZWA10¥3,030201012-202009

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52203-12010iZWA10¥3,030201012-202009

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-75010iZWA10¥3,210201012-202009

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-75010iZWA10¥3,210201012-202009

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-75010iZWA10¥1,120201012-202009

52278CSTOPPER, REAR SUSPENSION MEMBER, REAR LOWER

main52278-75010iZWA10¥810201012-202009

52295BRACE, REAR SUSPENSION MEMBER, RH

main52295-12051iZWA10¥1,400201012-202009

52296BRACE, REAR SUSPENSION MEMBER, LH

main52295-12051iZWA10¥1,400201012-202009

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-47020iZWA10¥28,900201012-202009

9010512346

main90105-12346¥120

9011614014

main90116-14014¥470

9011908516

main90119-08516¥120

9011912275

main90119-12275¥210

9011912336

main90119-12336¥210

9011912398

main90119-12398¥350

9011912400

main90119-12400¥180

9011914098

main90119-14098¥400

9011914101

main90119-14101¥590

9011914123

main90119-14123¥470

9017814006

main90178-14006¥160

9017910180

main90179-10180¥120

91553L1230

main91553-L1230¥210

32 parts on this diagram · 3 diagrams in section
