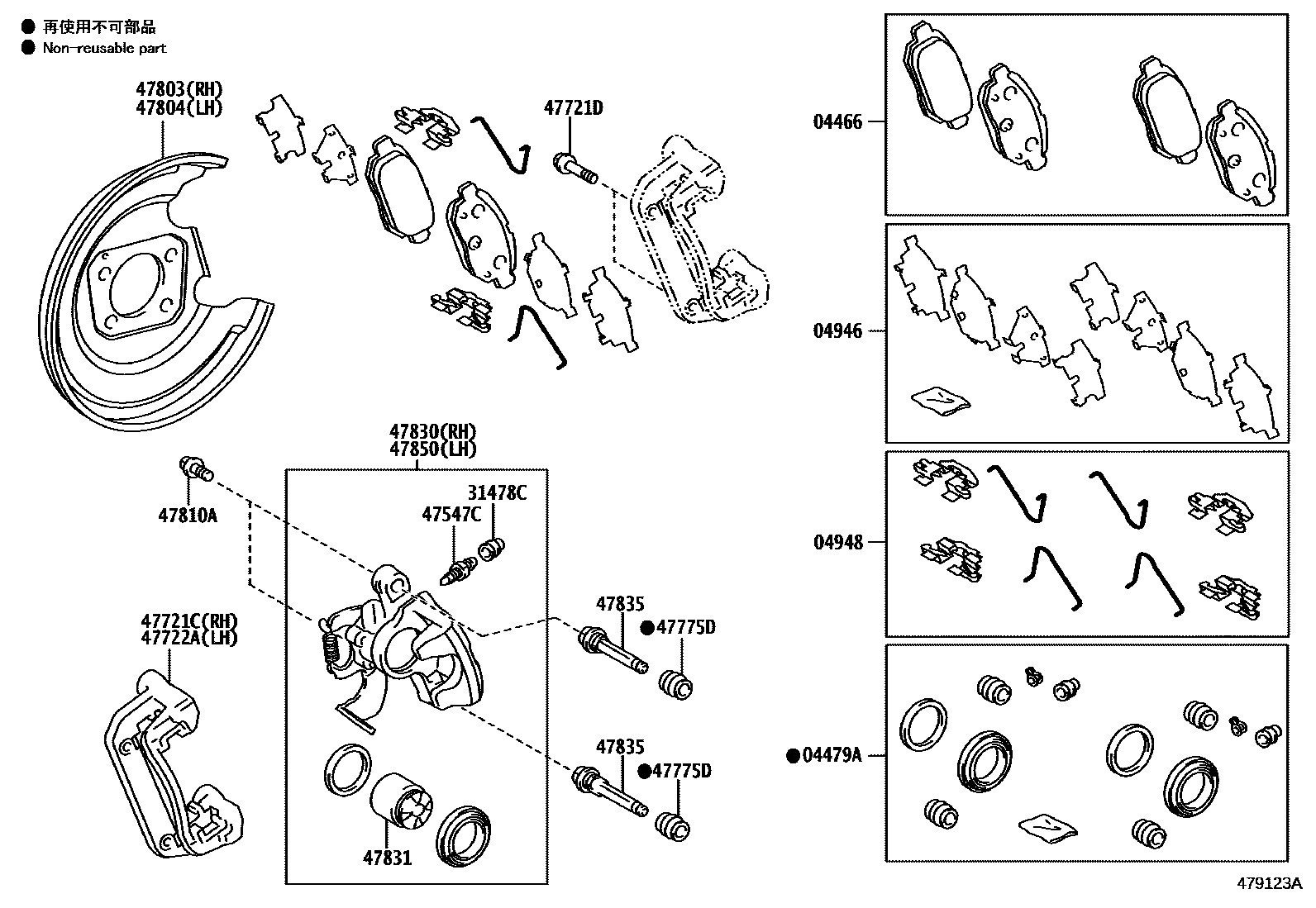

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-47030iZWA10201012-201111

MARK AK NS254

sub04466-76010

main04466-76010iZWA10201111-201207

MARK AK NS254

sub04466-76011

main04466-76011iZWA10201207-201304

MARK AK NS254

sub04466-76012

main04466-76012iZWA10201305-202009

MARK AK NS254

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-12230iZWA10201012-202009

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-47070iZWA10201012-202009

04948FITTING KIT, DISC BRAKE, REAR

main04948-47010iZWA10..E201012-202009

main04948-76000iZWA10..B201012-202009

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010iZWA10201012-202009

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050iZWA10201012-202009

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-12150iZWA10..E201012-202009

main47821-12240iZWA10..B201012-202009

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-10404iZWA10201012-202009

*10-1.25PX24-21.5

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-12150iZWA10..E201012-202009

main47821-12240iZWA10..B201012-202009

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150iZWA10201012-202009

47803COVER SUB-ASSY, DISC BRAKE DUST, REAR RH

main47881-12080iZWA10..E201012-202009

main47881-12090iZWA10..B201012-202009

47804COVER SUB-ASSY, DISC BRAKE DUST, REAR LH

main47882-12080iZWA10..E201012-202009

main47882-12090iZWA10..B201012-202009

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90015-AA102iZWA10201012-202009

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-12160iZWA10..E201012-201312

sub47830-12260

main47830-12240iZWA10..B201012-202009

main47830-12260iZWA10..E201312-202009

47831PISTON, REAR DISC BRAKE

main47831-52050iZWA10201012-202009

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150iZWA10201012-202009

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-12160iZWA10..E201012-201312

sub47850-12260

main47850-12240iZWA10..B201012-202009

main47850-12260iZWA10..E201312-202009

17 parts on this diagram · 1 diagram in section
