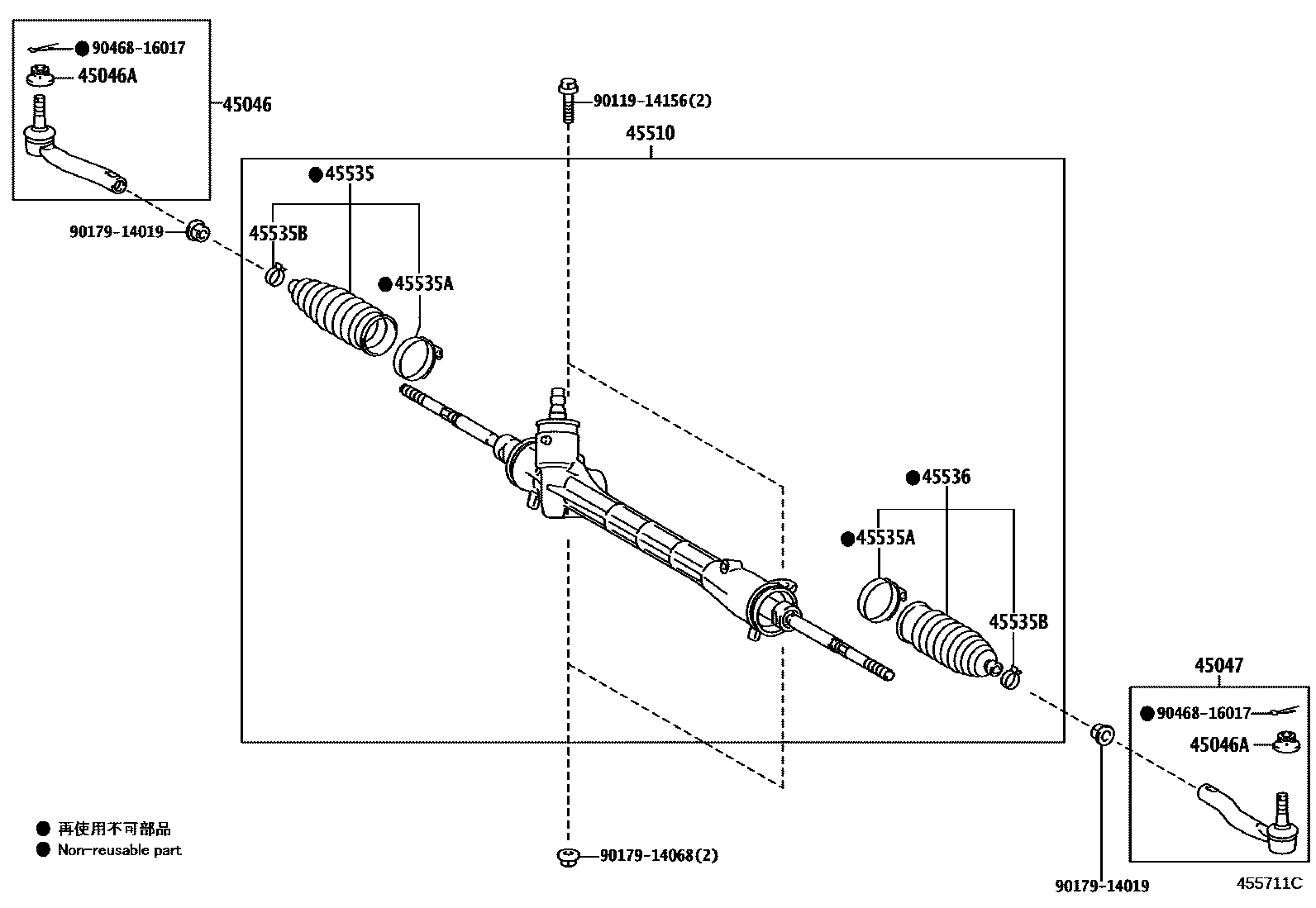

FRONT STEERING GEAR & LINK

0001 1 0002 1

45046END SUB-ASSY, TIE ROD, RH

main45046-49225iZWA10201012-202009

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12014iZWA10201012-202009

45047END SUB-ASSY, TIE ROD, LH

main45047-49165iZWA10201012-202009

45510GEAR ASSY, STEERING

main45510-76010iZWA10..LHD201012-202009

main45510-76020iZWA10..RHD201012-202007

main45510-76040iZWA10..LHD..B201208-201312

BRAZIL SPEC

main45510-76041iZWA10..LHD..B201312-202008

LATIN AMERICA SPEC

main45510-76041iZWA10..LHD..B201312-202008

PERU SPEC

main45510-76041iZWA10..LHD..B201312-202008

CHILE SPEC

main45510-76041iZWA10..LHD..B201312-202008

BRAZIL SPEC

45535BOOT, STEERING RACK, NO.1

main45535-49015iZWA10201012-202009

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-47010iZWA10201012-202009

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021iZWA10201012-202009

45536BOOT, STEERING RACK, NO.2

main45535-49015iZWA10201012-202009

9011914156

main90119-14156

9017914019

main90179-14019

9017914068

main90179-14068

9046816017

main90468-16017

12 parts on this diagram · 2 diagrams in section
