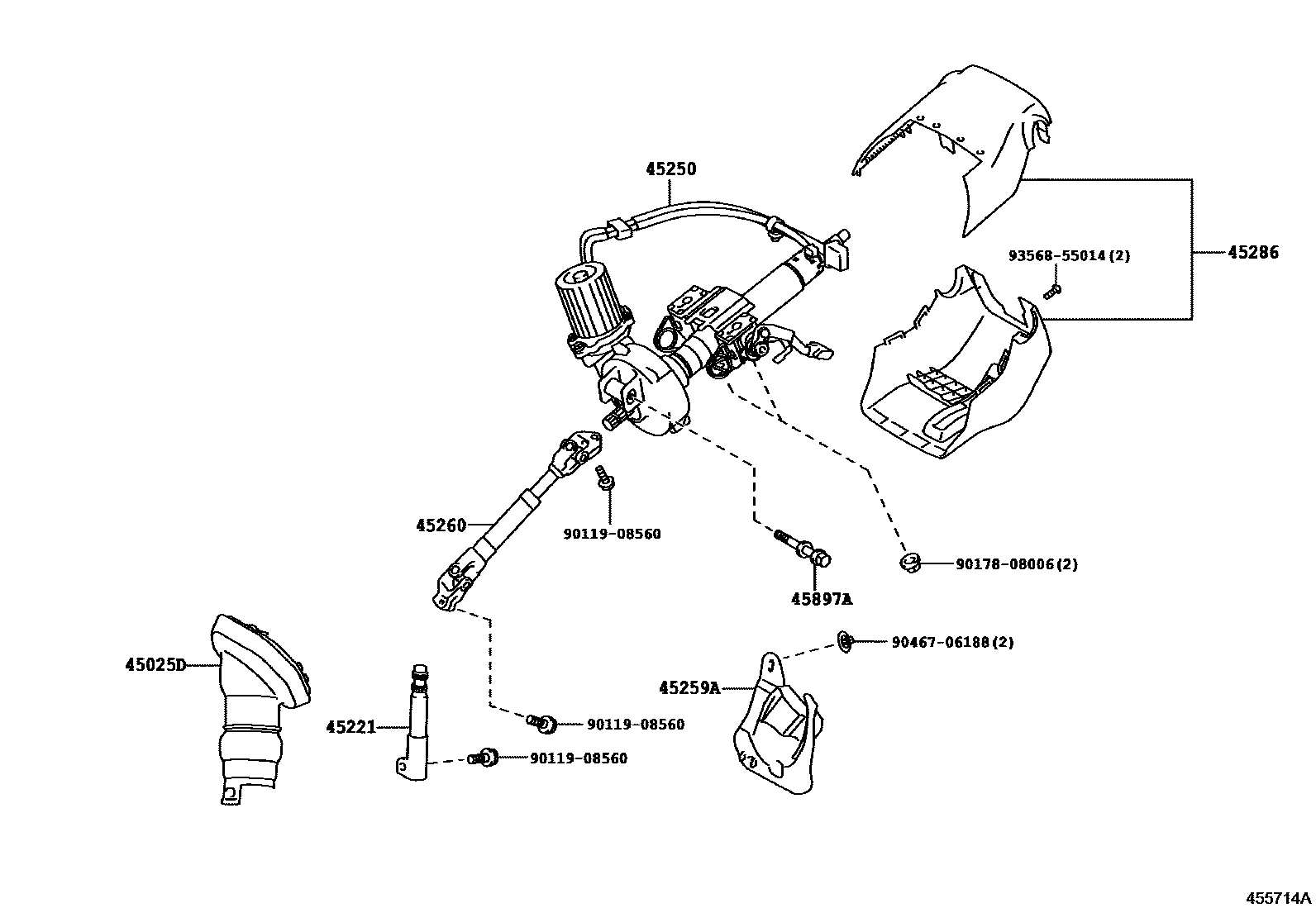

STEERING COLUMN & SHAFT

0001 1 0002 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-12280iZWA10..RHD201012-202007

main45025-12300iZWA10..LHD201012-202009

45221SHAFT, STEERING INTERMEDIATE

main45221-12330iZWA10201012-202009

45250COLUMN ASSY, STEERING

main45250-76050iZWA10..LHD201012-202009

main45250-76060iZWA10..RHD201012-202007

45259ASHEET, COLUMN HOLE COVER SILENCER

main45259-12050iZWA10..RHD201012-202007

main45259-47030iZWA10..LHD201012-202009

45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2

main45260-76010iZWA10201012-201207

sub45260-76020

main45260-76020iZWA10201208-202009

45286COVER, STEERING COLUMN

main45286-76901iZWA10201012-201208

main45286-76901-C0iZWA10201208-201312

BLACK,TRIM0#,2#,3#,4#,8#

sub45286-76901

main45286-76901-C0iZWA10..E201312-202009

BLACK,TRIM0#,2#,3#,4#,5#,8#

sub45286-76901

main45286-76901-C0iZWA10..E201312-202009

BLACK,TRIM0#,1#,2#,3#,4#,5#,8#

sub45286-76901

45897ABOLT, TILT STEERING PAWL SET

main45897-42010iZWA10201012-201209

main90119-10980iZWA10201210-202009

9011908560

main90119-08560

9017808006

main90178-08006

9046706188

main90467-06188

9356855014

main93568-55014

11 parts on this diagram · 2 diagrams in section
