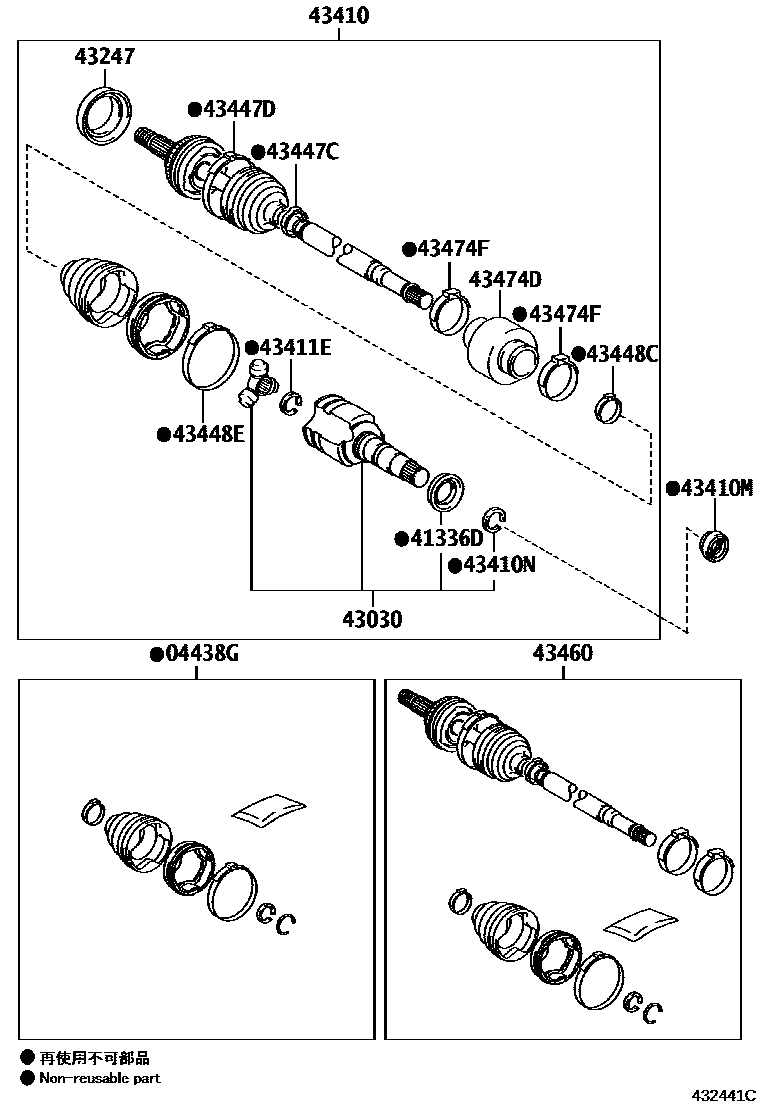

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-47031iZWA10¥6,700201012-201509

sub04437-47032¥6,700

main04437-47032iZWA10¥6,700201509-201511

sub04437-47033¥4,150

main04437-47033iZWA10¥4,150201511-202009

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-12020iZWA10¥330201012-202009

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43040-47010iZWA10¥18,300201012-202009

43247DEFLECTOR, FRONT WHEEL BEARING DUST, NO.2

main43247-47010iZWA10¥490201012-202009

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-47030iZWA10¥85,400201012-201412

sub43410-47031¥59,200

main43410-47031iZWA10¥59,200201501-202009

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40031iZWA10¥470201012-201108

main90311-40037iZWA10¥470201108-202009

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main90521-33002iZWA10¥100201012-202009

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-12070iZWA10¥40201012-202009

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12230iZWA10¥220201012-202009

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-12240iZWA10¥340201012-202009

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12230iZWA10¥220201012-202009

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-12180iZWA10¥330201012-202009

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43460-49406iZWA10¥62,800201012-201501

sub43460-49407¥62,800

main43460-49407iZWA10¥62,800201501-201509

sub43460-49408¥62,800

main43460-49408iZWA10¥62,800201509-201511

sub43460-49435¥43,600

main43460-49435iZWA10¥43,600201511-202009

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-47020iZWA10¥4,230201012-202009

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-12100iZWA10¥180201012-202009

15 parts on this diagram · 3 diagrams in section
