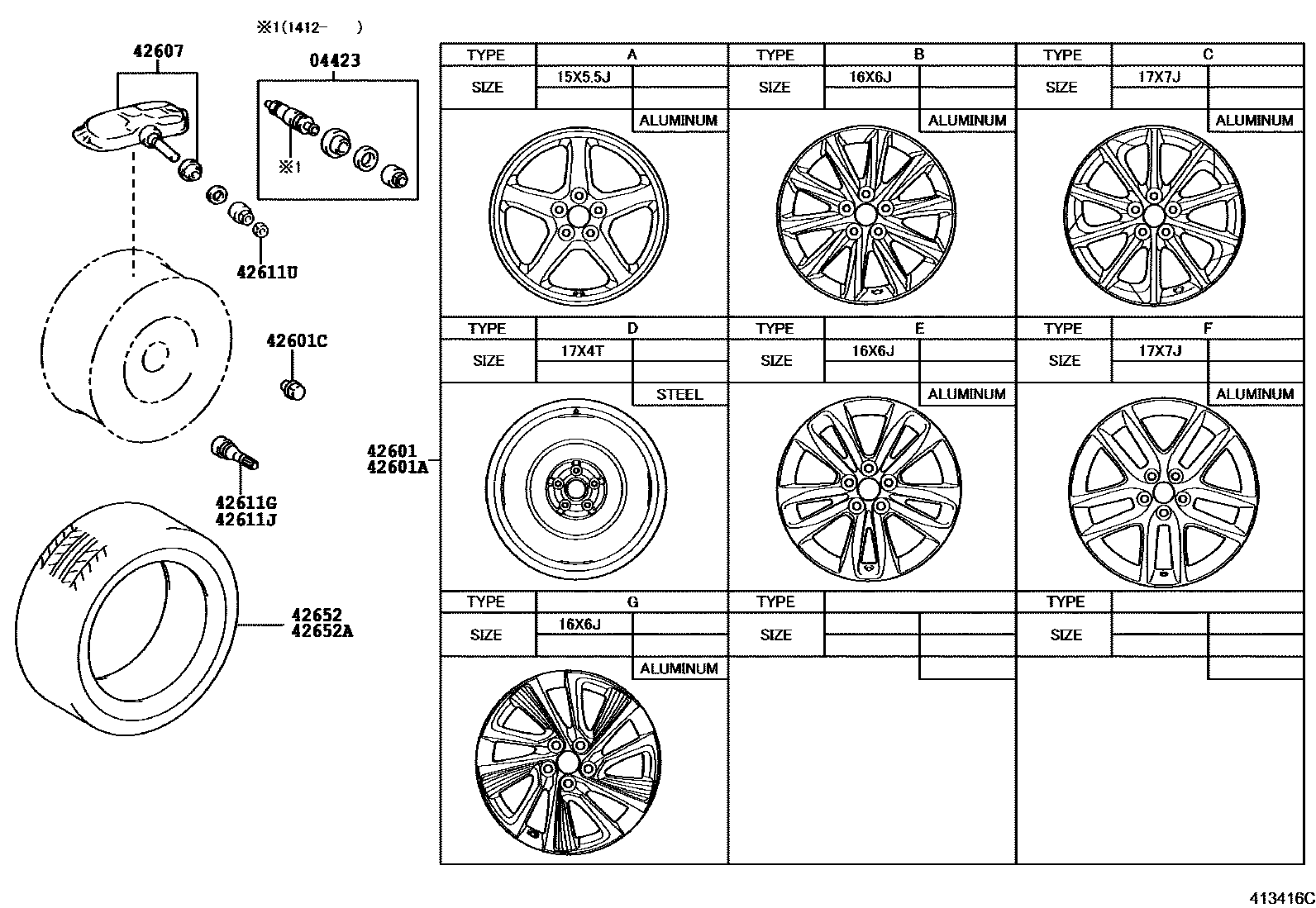

DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL 0002 1WHEEL HUB ORNAMENT & WHEEL CA0003 1BALANCE WEIGHT

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030iZWA10201312-201411

sub04423-33060

main04423-33060iZWA10201412-202009

42601WHEEL, DISC

main42611-76020iZWA10..E201012-202009

15X5.5J, #,TYPE A:REFER ILLUST.

main42611-76040iZWA10..B201012-201312

16X6J, #,TYPE B:REFER ILLUST.

main42611-76140iZWA10..B201312-201708

16X6J, #,TYPE E:REFER ILLUST.

main42611-76260iZWA10..B201708-202009

16X6J, #,TYPE G:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

42601CNUT, HUB (FOR AXLE)

main90942-01033iZWA10201012-202009

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-30070iZWA10201312-201404

sub42607-30071

main42607-30071iZWA10201405-202009

42611GVALVE (FOR TUBELESS TIRE)

main90942-05028iZWA10201012-201312

42611JVALVE (FOR TUBELESS TIRE SPARE)

42611UCAP, TIRE VALVE

main90942-05042iZWA10201312-202009

42652TIRE

main4265A-53010

main4265A-76010

main4265A-53011

main4265A-53012

main42652-76091

main42652-2B460

main42652-12C70

main42652-12D31

main42652-12D41

42652ATIRE (FOR SPARE)

10 parts on this diagram · 3 diagrams in section
