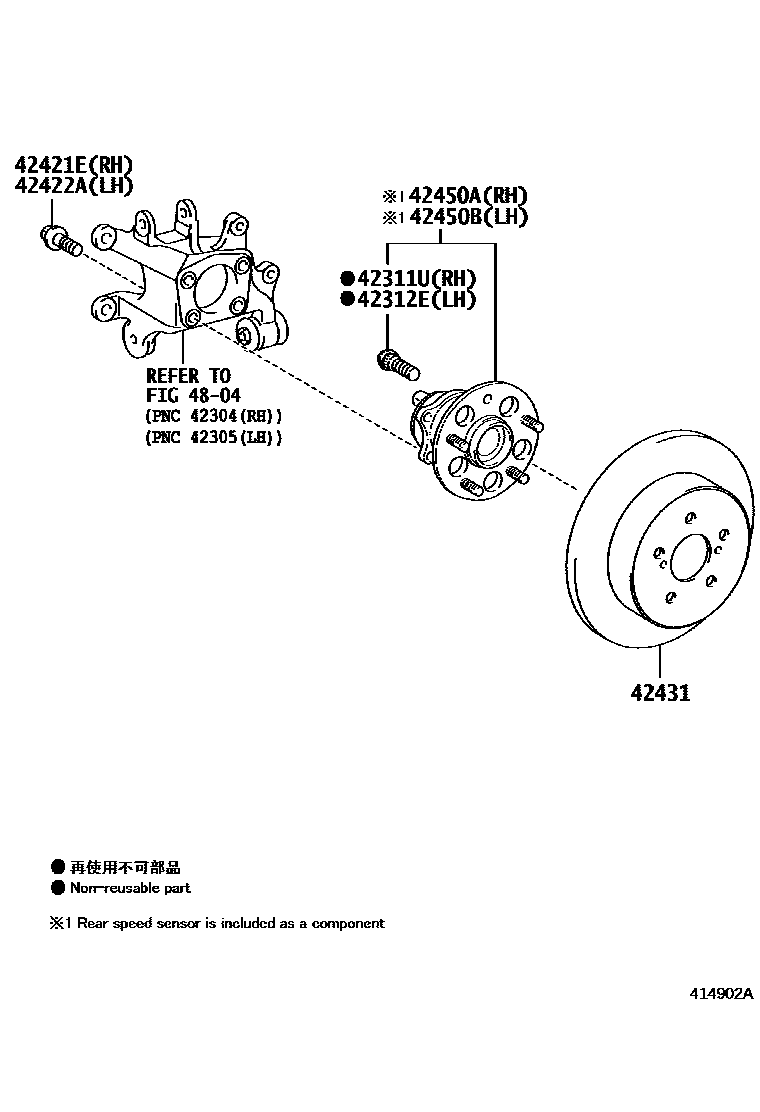

REAR AXLE SHAFT & HUB

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049iZWA10201012-202009

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049iZWA10201012-202009

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-12350iZWA10201012-202009

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-12350iZWA10201012-202009

42431DISC, REAR

main42431-12310iZWA10..E201012-202009

main42431-52160iZWA10..B201012-202009

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42450-76010iZWA10201012-201103

sub42450-76020

main42450-76020iZWA10201103-202009

sub42450-76021

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42450-76010iZWA10201012-201103

sub42450-76020

main42450-76020iZWA10201103-202009

sub42450-76021

4804

8 parts on this diagram · 1 diagram in section
