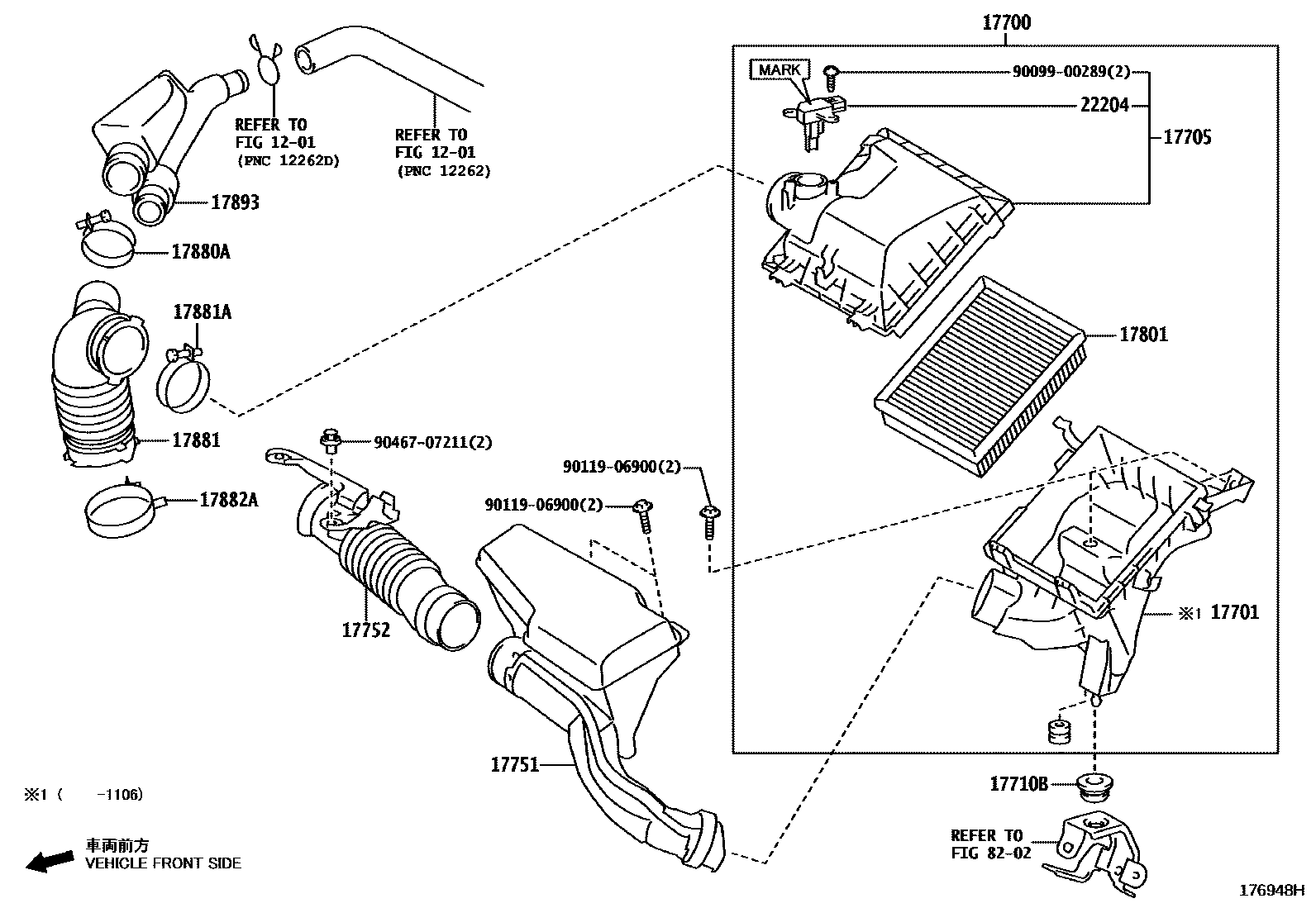

AIR CLEANER

0001 1 0002 1

1201

17700CLEANER ASSY, AIR

main17700-37290i2ZRFXE,5ZRFXE..ZWA10201012-201103

sub17700-37291

main17700-37291i2ZRFXE,5ZRFXE..ZWA10201104-201105

sub17700-37292

main17700-37292i2ZRFXE,5ZRFXE..ZWA10201106-202009

17701CASE SUB-ASSY, AIR CLEANER

main17701-37220i2ZRFXE,5ZRFXE..ZWA10201012-202009

17705CAP SUB-ASSY, AIR CLEANER

main17705-37160i2ZRFXE,5ZRFXE..ZWA10201012-201103

sub17705-37161

main17705-37161i2ZRFXE,5ZRFXE..ZWA10201104-202009

17710BGROMMET

main90480-18006i2ZRFXE,5ZRFXE..ZWA10201012-202009

17751INLET, AIR CLEANER, NO.1

main17751-37100i2ZRFXE,5ZRFXE..ZWA10201012-201312

17752INLET, AIR CLEANER, NO.2

main17752-37060i2ZRFXE,5ZRFXE..ZWA10201012-201312

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-37020i2ZRFXE,5ZRFXE..ZWA10201012-201105

sub17801-37021

main17801-37021i2ZRFXE,5ZRFXE..ZWA10201106-202009

17880ACLAMP, HOSE

main96111-10480i2ZRFXE,5ZRFXE..ZWA10201012-202009

17881HOSE, AIR CLEANER, NO.1

main17881-37220i2ZRFXE,5ZRFXE..ZWA10201012-202009

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i2ZRFXE,5ZRFXE..ZWA10201012-202009

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i2ZRFXE,5ZRFXE..ZWA10201012-202009

17893RESONATOR, INTAKE AIR

main17893-37050i2ZRFXE,5ZRFXE..ZWA10201012-202009

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i2ZRFXE,5ZRFXE..ZWA10201104-202009

MARK 22204-0T040

sub22204-28010

main22204-0V010i2ZRFXE,5ZRFXE..ZWA10201104-202009

MARK 22204-0V010

sub22204-0V020

main22204-0V020i2ZRFXE,5ZRFXE..ZWA10201104-202009

MARK 22204-0V020

main22204-28010i2ZRFXE,5ZRFXE..ZWA10201104-202009

MARK 22204-28010

main22204-28010i2ZRFXE,5ZRFXE..ZWA10201012-201104

8202

9009900289

main90099-00289

9011906900

main90119-06900

9046707211

main90467-07211

18 parts on this diagram · 2 diagrams in section
