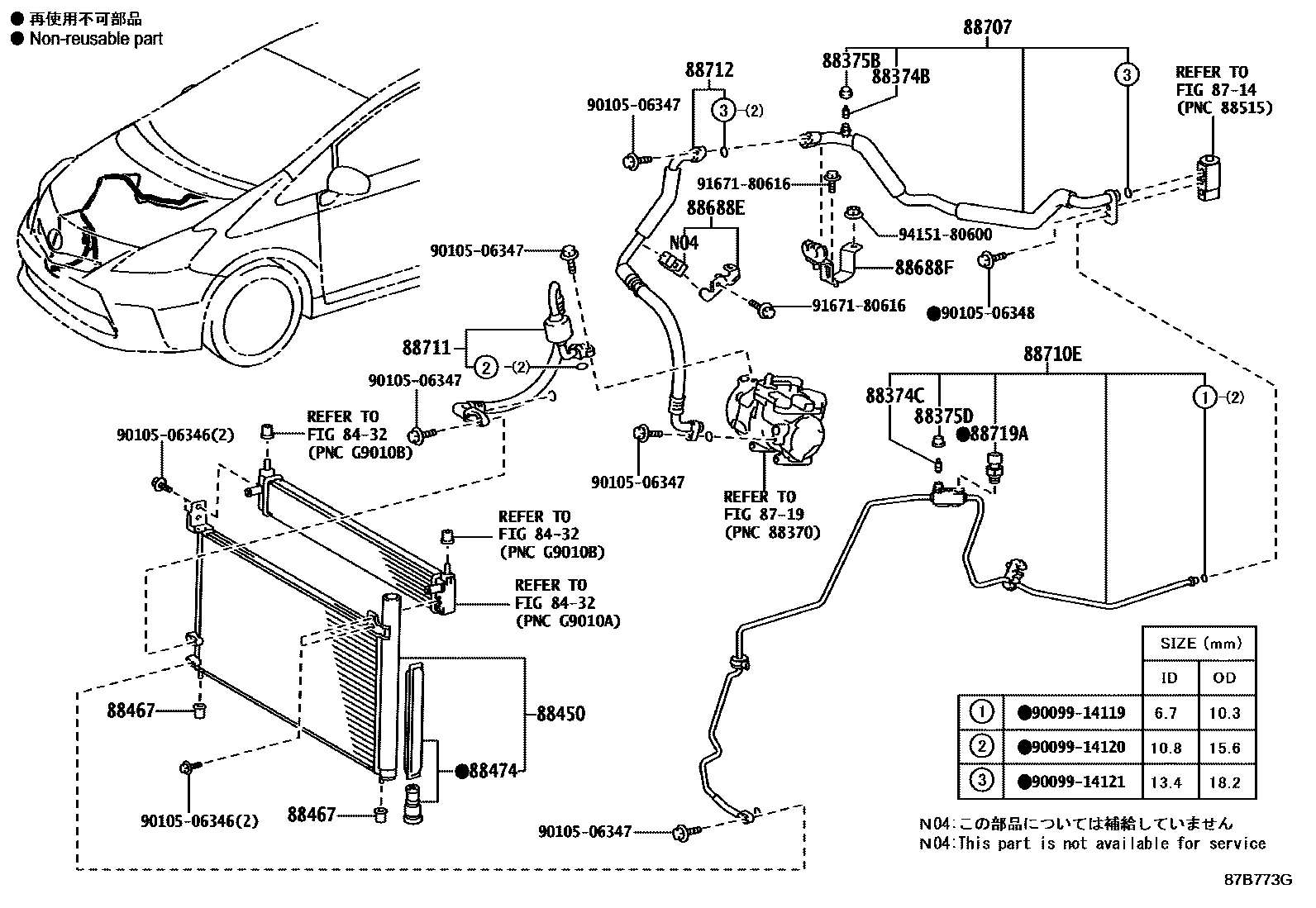

HEATING & AIR CONDITIONING - COOLER PIPING

8432

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iZVW40201203-202109

88374CVALVE, SERVICE, NO.2

main88374-30010iZVW40201203-202109

88375BCAP, SERVICE VALVE, NO.1

main88375-30290iZVW40201207-202109

main88375-30310iZVW40201203-202008

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iZVW40201207-202109

main88375-30320iZVW40201203-202008

88450CONDENSER ASSY, W/RECEIVER

main88460-47170iZVW40201203-202109

88467CUSHION, COOLER CONDENSER, NO.1

main16716-28010iZVW40201203-202109

88474DRYER, COOLER

main88474-47030iZVW40201203-202109

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-47150iZVW40201203-202109

88688FBRACKET, COOLER REFRIGERANT HOSE, NO.2

main88688-1E381iZVW40201203-202109

88707PIPE SUB-ASSY, SUCTION

main88707-47060iZVW40201207-202109

main88707-47070iZVW40201203-202008

88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-47110iZVW40201207-202109

main88710-47130iZVW40201203-202008

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-47040iZVW40201203-202109

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-47051iZVW40201203-201411

main88712-47052iZVW40201411-202109

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iZVW40201203-202109

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9010506346

main90105-06346

9010506347

main90105-06347

9010506348

main90105-06348

9167180616

main91671-80616

9415180600

main94151-80600

25 parts on this diagram · 1 diagram in section
