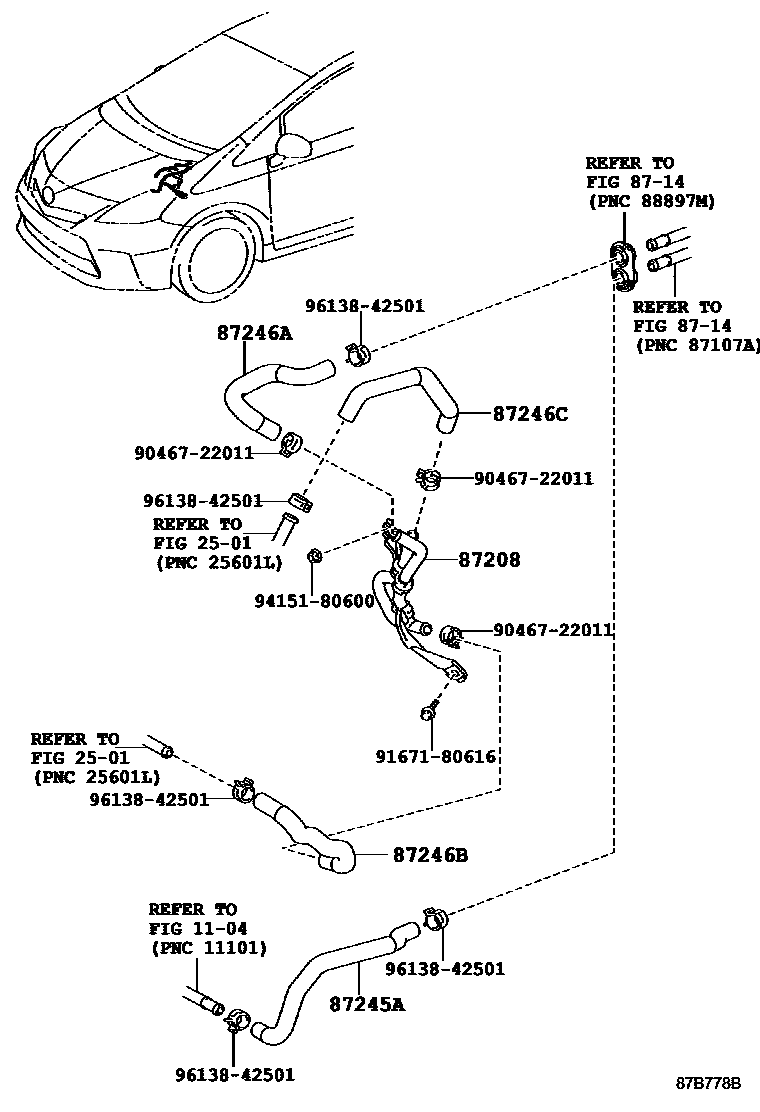

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1COLD AREA SPEC

1104

2501

8714

87208PIPE SUB-ASSY, HEATER WATER

main87208-47040iZVW40201203-202109

87245AHOSE, HEATER WATER, INLET A

main87245-47260iZVW40¥1,550201203-201411

COLD AREA SPEC

main87245-47260iZVW40¥1,550201411-202109

87246AHOSE, HEATER WATER, OUTLET A

main87245-47320iZVW40¥1,090201203-201411

COLD AREA SPEC

main87245-47320iZVW40¥1,090201411-202109

87246BHOSE, HEATER WATER, OUTLET B

main87245-47350iZVW40¥1,490201203-202109

87246CHOSE, HEATER WATER, OUTLET C

main87245-47380iZVW40¥1,130201203-202109

9046722011

main90467-22011¥240

9167180616

main91671-80616¥60

9415180600

main94151-80600¥60

9613842501

main96138-42501¥180

12 parts on this diagram · 2 diagrams in section
