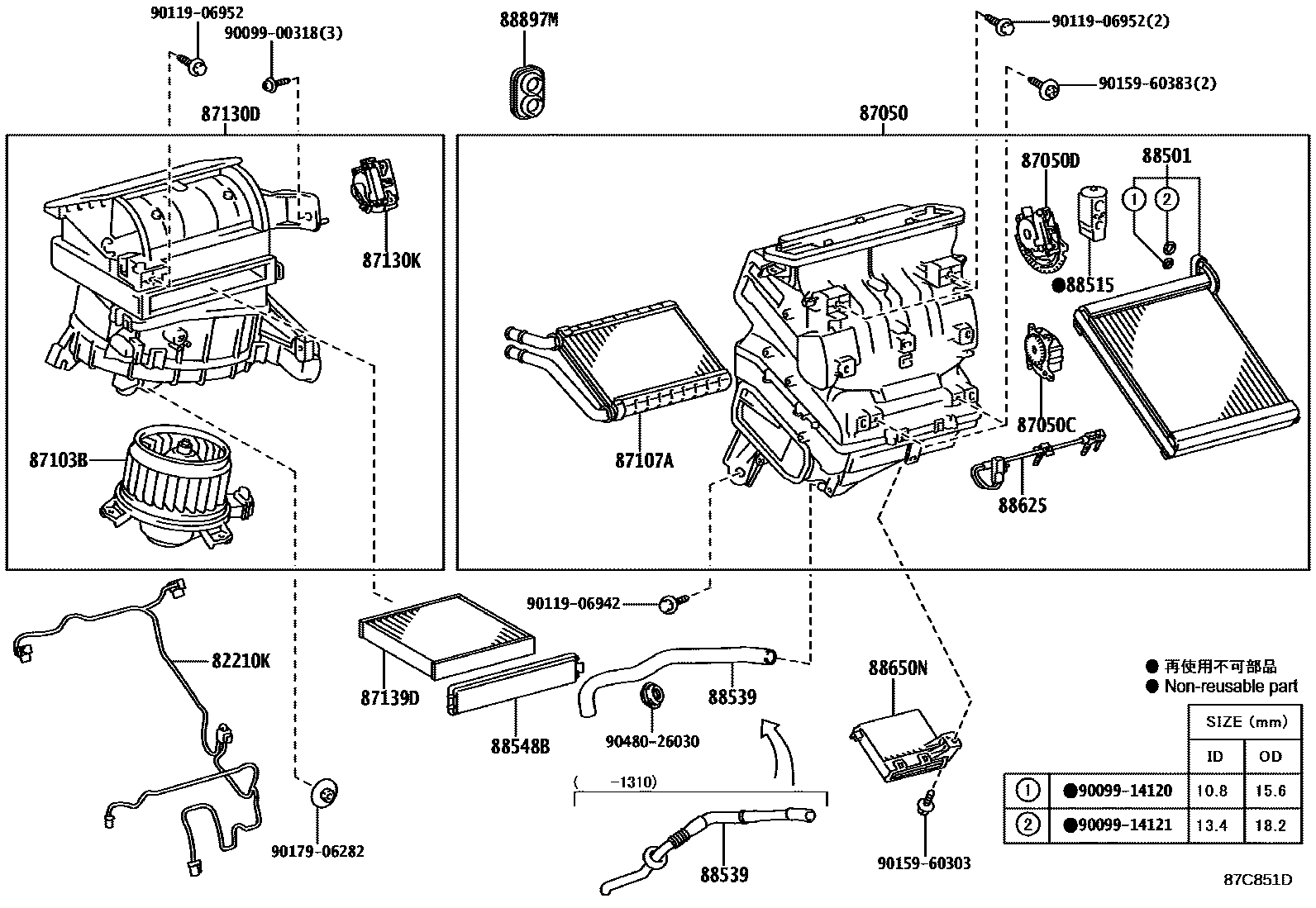

HEATING & AIR CONDITIONING - COOLER UNIT
82210KHARNESS ASSY, AIR CONDITIONER
87050RADIATOR ASSY, AIR CONDITIONER
HONG KONG SPEC
COLD AREA SPEC
COLD AREA SPEC
87050CDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1
HONG KONG SPEC
87050DDAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2
HONG KONG SPEC
87103BMOTOR SUB-ASSY, BLOWER W/FAN
87107AUNIT SUB-ASSY, HEATER RADIATOR
87130DBLOWER ASSY
HONG KONG SPEC
COLD AREA SPEC
COLD AREA SPEC
87130KDAMPER SERVO SUB-ASSY, BLOWER, NO.1
HONG KONG SPEC
87139DELEMENT, AIR REFINER
MICRO DUST FILTER
*DPF
POLLEN FILTER
88501EVAPORATOR SUB-ASSY, COOLER, NO.1
HONG KONG SPEC
88515VALVE, COOLER EXPANSION
HONG KONG SPEC
88539HOSE, COOLER UNIT DRAIN, NO.1
88548BCASE, AIR FILTER
88650NAMPLIFIER ASSY, AIR CONDITIONER
sub88650-47124
COLD AREA SPEC
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&COLD AREA SPEC
REGULATION COMPLIANCE LABEL & NAME PLATE-EUROPE NTA NAME PLATE & ID PLATE&COLD AREA SPEC
COLD AREA SPEC
COLD AREA SPEC
88897MGROMMET (FOR HEATER PIPE)
9009900318
main90099-00318
9009914120
main90099-14120
9009914121
main90099-14121
9011906942
main90119-06942
9011906952
main90119-06952
9015960303
main90159-60303
9015960383
main90159-60383
9017906282
main90179-06282
9048026030
main90480-26030
25 parts on this diagram · 2 diagrams in section
