SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-0WV50×2supersedes 86160-58240iZVW40201203-201411

AUDIO-*DA & JBL & 8SPEAKER & BLUETOOTH

main86160-47190×2iZVW40..LHD201509-201712

AUDIO-*DA&JBL&8SPEAKER&*BT&*EXB(EASTERN EUROPE

86160BSPEAKER ASSY, REAR

main86160-0WV60×2supersedes 86160-52331iZVW40201203-201411

AUDIO-*DA & JBL & 8SPEAKER & BLUETOOTH

sub86150-62110

main86160-47210×2iZVW40..LHD201509-202008

AUDIO-*DA&JBL&8SPEAKER&*BT&*EXB(WESTERN EUROPE

86160PSPEAKER ASSY, FRONT NO.2

main86160-0WV70×2supersedes 86160-47070iZVW40..LHD201411-201508

AUDIO-*DA&JBL&8SPEAKER&*BT&*EXB(WESTERN EUROPE

main86160-47200×2iZVW40..LHD201509-202008

AUDIO-*DA&JBL&8SPEAKER&*BT&*EXB(WESTERN EUROPE

86160YSPEAKER ASSY, REAR NO.2

main86160-0WU30×2iZVW40201203-201411

AUDIO-*DA & JBL & 8SPEAKER & BLUETOOTH

main86160-47220×2iZVW40..LHD201510-201712

AUDIO-*DA&JBL&8SPEAKER&*BT&*EXB(EASTERN EUROPE

9016840025

main90168-40025

9026905034

main90269-05034

9151560616

main91515-60616

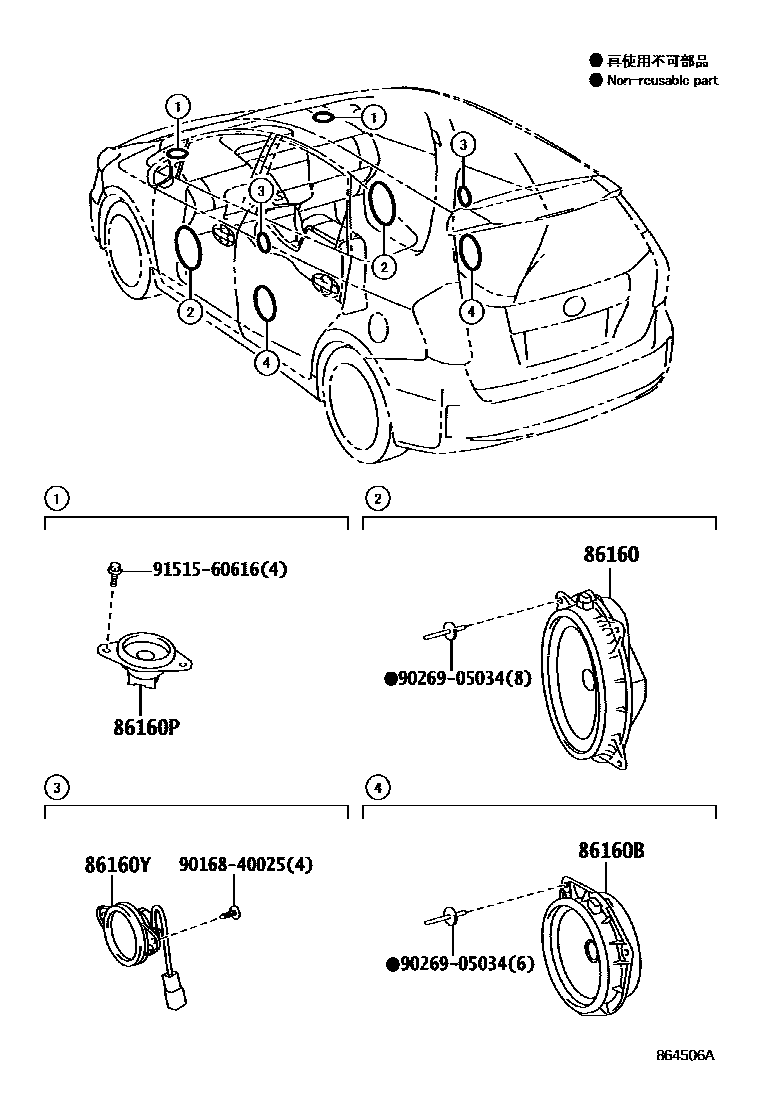

7 parts on this diagram · 1 diagram in section
