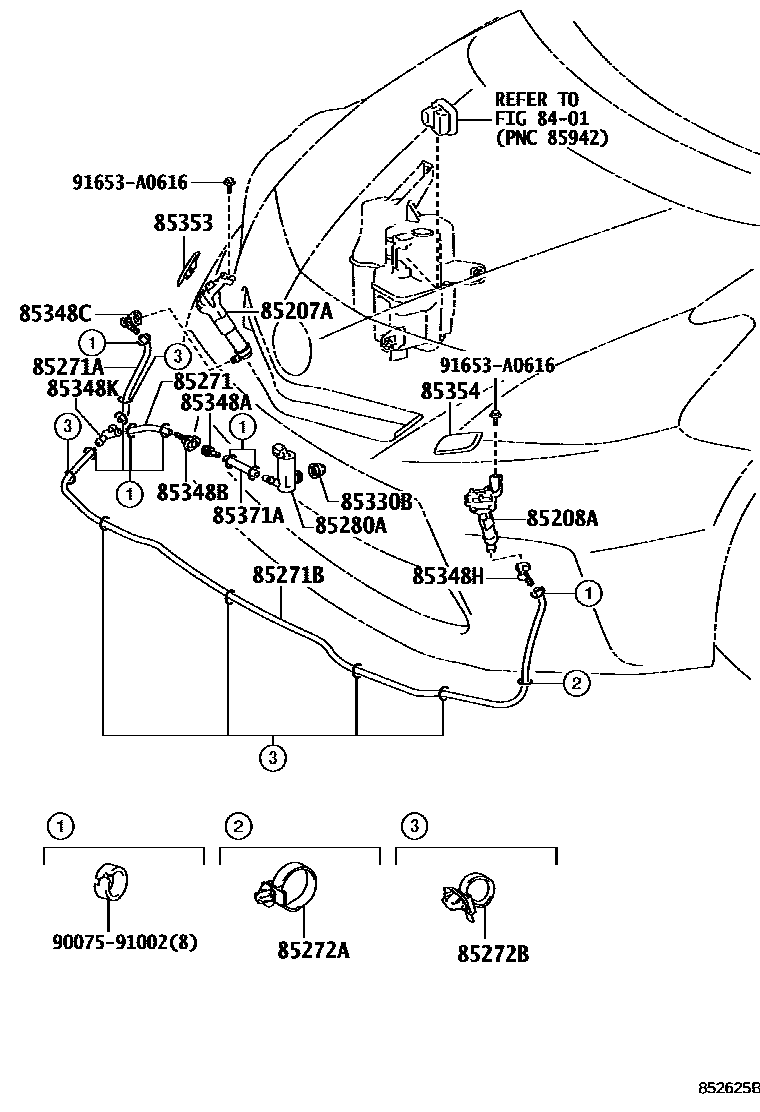

HEADLAMP CLEANER
8401
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
LUXURY PACKAGE&HEADLAMP-LED
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
LUXURY PACKAGE&HEADLAMP-LED
85271HOSE, HEADLAMP CLEANER, NO.1
L=80,LUXURY PACKAGE&HEADLAMP-LED
85271AHOSE, HEADLAMP CLEANER, NO.2
L=260,LUXURY PACKAGE&HEADLAMP-LED
85271BHOSE, HEADLAMP CLEANER, NO.3
L=1900,LUXURY PACKAGE&HEADLAMP-LED
85272ACLAMP, HEADLAMP CLEANER, NO.1
LUXURY PACKAGE&HEADLAMP-LED
85272BCLAMP, HEADLAMP CLEANER, NO.2
LUXURY PACKAGE&HEADLAMP-LED
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
HEADLAMP-LED
85330BBUSH, HEADLAMP CLEANER WASHER JAR
HEADLAMP-LED
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
HEADLAMP-LED
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
LUXURY PACKAGE&HEADLAMP-LED
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
LUXURY PACKAGE&HEADLAMP-LED
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
LUXURY PACKAGE&HEADLAMP-LED
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
LUXURY PACKAGE&HEADLAMP-LED
85353COVER, HEADLAMP WASHER, RH
85354COVER, HEADLAMP WASHER, LH
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
L=35,HEADLAMP-LED
9007591002
main90075-91002
91653A0616
main91653-A0616
20 parts on this diagram · 1 diagram in section
