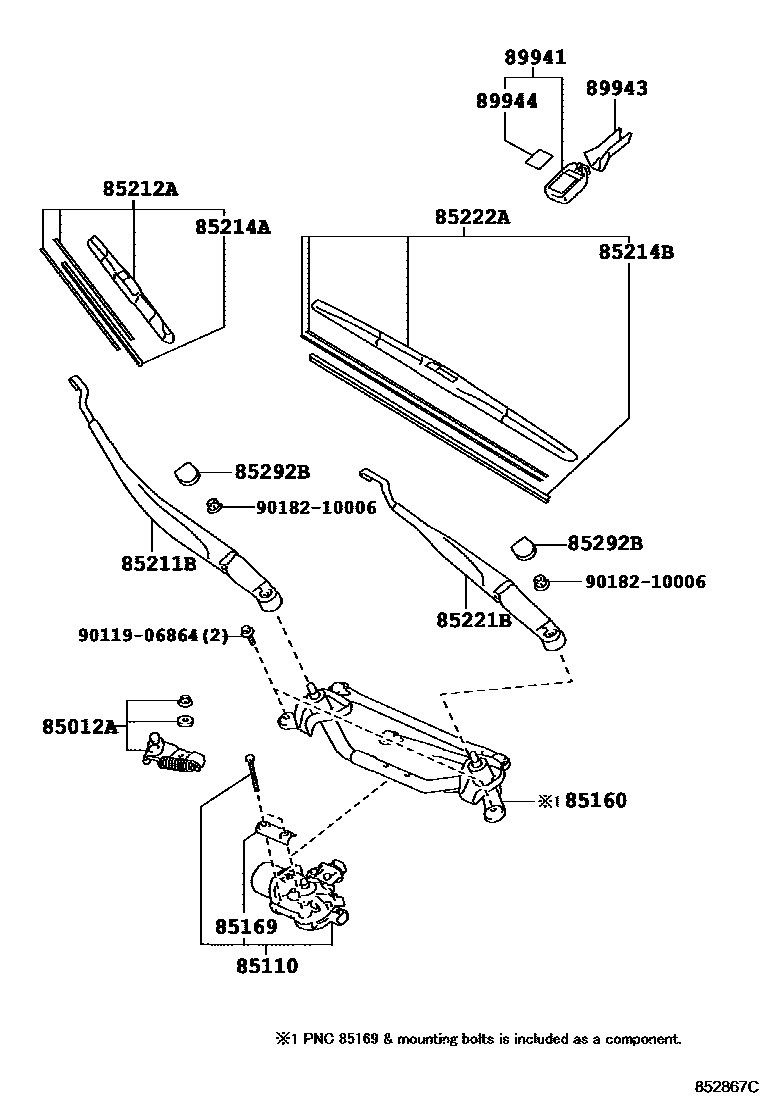

WINDSHIELD WIPER

0001 1 0002 1

85012ACRANK SUB-ASSY, FRONT WIPER

main85012-47010iZVW40..RHD201203-201511

sub85012-47011

main85012-47011iZVW40..RHD201512-202109

main85012-47040iZVW40..LHD201203-201511

sub85012-47041

main85012-47041iZVW40..LHD201512-202109

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-47160iZVW40..RHD201203-202109

main85110-47220iZVW40..LHD201203-202109

85160LINK ASSY, WINDSHIELD WIPER

main85150-47170iZVW40..LHD201203-202109

main85150-47150iZVW40..RHD201203-201411

NEW ZEALAND SPEC

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85152-47010iZVW40201203-202109

85211BARM, FRONT WIPER, RH

main85211-47150iZVW40..LHD201203-201211

main85211-47151iZVW40..LHD201211-202109

main85211-47161iZVW40..RHD201411-202109

main85211-47130iZVW40..RHD201203-201211

NEW ZEALAND SPEC

main85211-47131iZVW40..RHD201211-201411

NEW ZEALAND SPEC

85212ABLADE, FR WIPER, RH

main85212-47080iZVW40..RHD201211-201502

sub85212-47081

main85212-47081iZVW40..RHD201503-201509

sub85212-47191

main85212-47090iZVW40..RHD201203-201211

main85212-47100iZVW40..LHD201211-201502

sub85212-47101

main85212-47101iZVW40..LHD201503-201509

sub85212-47201

main85212-47110iZVW40..LHD201203-201211

main85212-47191iZVW40..RHD201510-202109

main85212-47201iZVW40..LHD201510-202109

85214ARUBBER, WIPER, RH

main85214-47020iZVW40..RHD201203-201510

sub85214-47150

main85214-47070iZVW40..LHD201203-201510

sub85214-47160

main85214-47150iZVW40..RHD201510-202109

main85214-47160iZVW40..LHD201510-202109

85214BRUBBER, WIPER, LH

main85214-47020iZVW40..LHD201203-201510

sub85214-47150

main85214-47070iZVW40..RHD201203-201510

sub85214-47160

main85214-47150iZVW40..LHD201510-202109

main85214-47160iZVW40..RHD201510-202109

85221BARM, FRONT WIPER, LH

main85221-47130iZVW40..LHD201203-201211

main85221-47131iZVW40..LHD201211-202109

main85221-47141iZVW40..RHD201411-202109

main85221-47110iZVW40..RHD201203-201211

NEW ZEALAND SPEC

main85221-47111iZVW40..RHD201211-201411

NEW ZEALAND SPEC

85222ABLADE, FR WIPER, LH

main85222-47060iZVW40..RHD201211-201502

sub85222-47061

main85222-47061iZVW40..RHD201503-201509

sub85222-47141

main85222-47070iZVW40..RHD201203-201211

main85222-47080iZVW40..LHD201211-201502

sub85222-47081

main85222-47081iZVW40..LHD201503-201509

sub85222-47151

main85222-47090iZVW40..LHD201203-201211

main85222-47141iZVW40..RHD201510-202109

main85222-47151iZVW40..LHD201510-202109

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iZVW40201203-202109

89941SENSOR, RAIN

main89941-52010iZVW40..RHD201203-202008

HONG KONG SPEC

89943COVER, RAIN SENSOR

main89943-47010iZVW40..RHD201203-201712

HONG KONG SPEC

main89943-47030iZVW40..RHD201712-202008

HONG KONG SPEC

main89943-47030iZVW40..LHD201712

89944TAPE, RAIN SENSOR

main89944-42010iZVW40..RHD201203-202008

HONG KONG SPEC

9011906864

main90119-06864

9018210006

main90182-10006

16 parts on this diagram · 2 diagrams in section
